Exhaust Gas Recirculation (EGR) Lower Tube

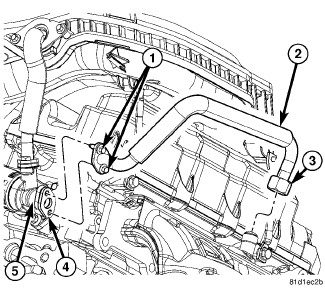

2.7L - LOWER TUBE





1. Install gasket (4) to EGR valve (5).
2. Install lower EGR tube (2) to vehicle.
3. Install lower EGR tube bolts (1) to EGR valve (5). Tighten bolts to 12 Nm (106 in. lbs.).
4. Install lower EGR tube nut (3) to exhaust manifold. Tighten nut to 70 Nm (51.5 ft. lbs.).
