Right

REMOVAL










1. Remove coolant pressure container.
2. Remove heater tube front attaching screw.
3. Raise vehicle on a hoist and remove inner splash shield.
4. Remove heater tube rear attaching screw.
5. Remove the right engine support assembly vertical fasteners from frame rail.
6. Lower vehicle. Remove the load on the engine motor mounts by carefully supporting the engine assembly with floor jack and wooden block on oil pan.

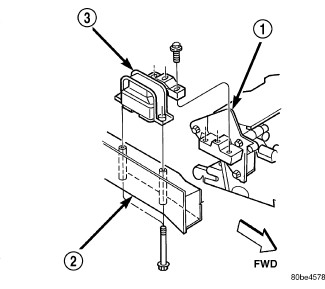

7. Remove the bolts attaching the engine support assembly to the engine bracket (1).
8. Remove right engine mount.
