Left






REMOVAL










1. Disconnect negative battery cable.
2. Remove throttle body air inlet hose and air cleaner housing assembly.
3. Support transmission with floor jack and wooden block.

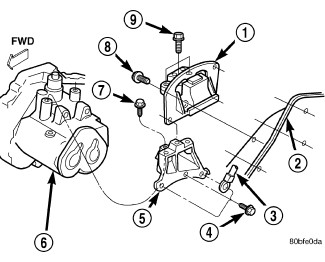

4. Remove the three vertical bolts from mount to transmission bracket (5).
5. Slightly lower transmission with floor jack.
6. Remove mount to frame rail fasteners (8) and remove mount.
