Front

REMOVAL





1. Disconnect the negative battery cable.
2. Raise vehicle and support.

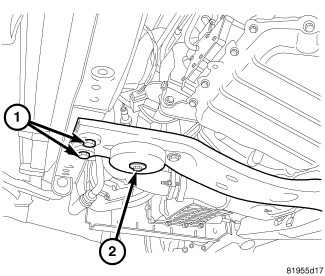

3. Remove the front mount through bolt (1).





4. Remove front engine mount bolt (2).
5. Remove crossmember front mounting bolts (1).

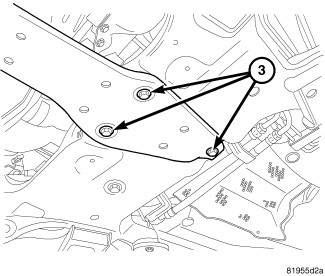

6. Remove crossmember mounting bolts (3).
7. Remove crossmember from vehicle.

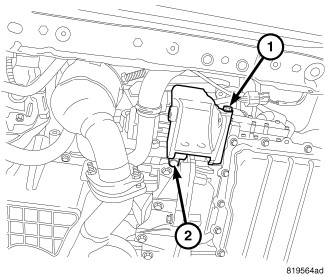

8. Remove front engine mounting bolts (2).

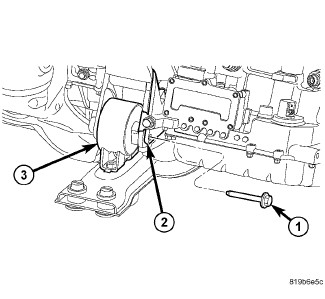

9. Loosen front engine mounting thru bolts (1).

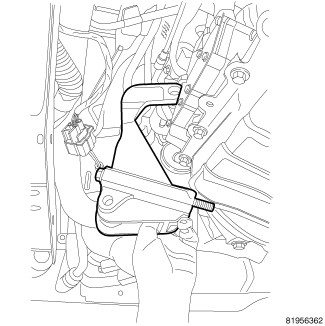

10. Remove the front engine mount bracket from engine block.
