Right Cylinder Head Cover(s)

INSTALLATION

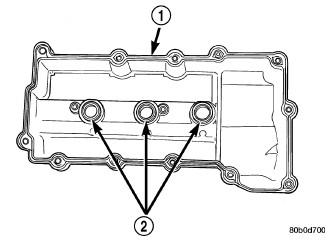

1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gaskets (1) as necessary.










2. Install cylinder head cover and hand start all fasteners. Verify that all double-ended studs are in the correct locations.
3. Tighten cylinder head cover attaching bolts and double-ended studs (1) to 12 Nm (105 in. lbs.).
4. Install ignition coilsIgnition Coil - Installation.
5. Install ignition coil capacitor and fastener.
6. Connect ground strap to cylinder head cover stud.









7. Reposition the right engine harness (6), and install the right engine harness retainers (2) to the double-ended studs.

8. Install upper intake manifold Intake Manifold - Installation.
9. Reconnect the PCV to the upper intake manifold.
