Left Cylinder Head Cover(s)

INSTALLATION

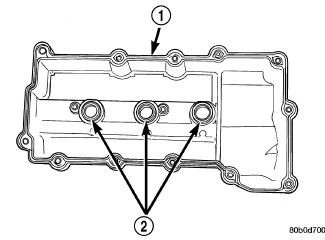

1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gaskets (1) as necessary.










2. Install cylinder head cover and hand start all fasteners. Verify that all double-ended studs are in the correct locations (1).
3. Tighten cylinder head cover attaching bolts and double-ended studs to 12 Nm (105 in. lbs.).









4. Reposition the left engine harness (3), and install the left engine harness retainers (1) to the double-ended studs.

5. Install the ignition coils Ignition Coil - Installation.
6. Install ignition coil capacitor and fastener.
7. Reconnect all electrical connectors.
8. Install ground strap to cylinder head cover stud.









9. Install the makeup air hose.

10. Connect negative battery cable.
