Side - C-Pillar

SIDE - C-PILLAR SENSOR





1. Disconnect and isolate the battery negative cable.

WARNING: Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components. Failure to do this may result in serious or fatal injury.

2. Remove the rear quarter panel trim Quarter Trim Panel - Removal.

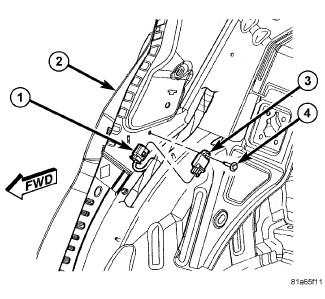

3. Remove the screw (4) that secures the side impact sensor (3) to the C-pillar (2).
4. Disconnect the electrical connector (1) from the sensor (3).
5. Remove the sensor (3) from the C-pillar.
