Heated Seat Switch - Installation

INSTALLATION






NOTE: There are different Accessory Switch Bank Module (ASBM) configurations available based on the option content of the vehicle. Ensure the ASBM being installed matches the vehicle options.

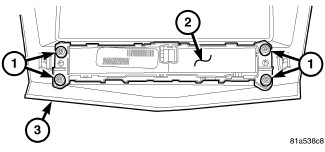

1. Position the ASBM (2) onto the back of the instrument panel center bezel (3).
2. Install the four screws (1) that secure the ASBM to the center bezel. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the center bezel onto the instrument panel, Instrument Panel Bezel - Installation.
4. Connect the battery negative cable.
5. Verify heated seat system operation.
