Power Seat Switch - Description

DESCRIPTION

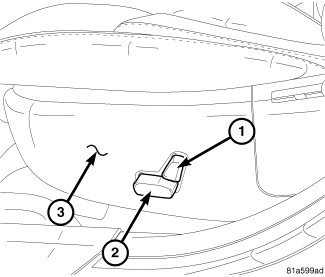

The driver power seat can be adjusted in eight different ways using the power seat switch. The power seat switch is located on the lower outboard side of the seat cushion on the seat cushion side shield (3) on all models. The eight-way power seat system incorporates a switch with both the seat cushion control paddle (2) and seat back recliner paddle (1).

The individual switches in the power seat switch assembly cannot be repaired. If one switch is damaged or inoperative, the entire power seat switch assembly must be replaced.
