Accessory Drive Belt Tensioner - Installation






2.0/2.4L

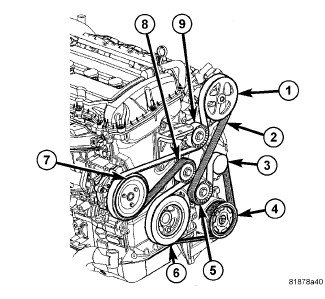

1. Position accessory drive belt tensioner (8) and install mounting bolt (1). Tighten bolt (1) to 24 Nm (212 in. lbs.).
2. Install accessory drive belt Serpentine Accessory Drive Belt - Installation.
3. Install belt splash shield
4. Lower vehicle.
