Cover, Seat Cushion: Removal: Removal

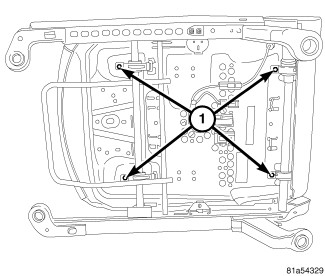

Fig 1: SEAT PAN FASTENERS
GC0123019Courtesy of CHRYSLER LLC
  1. Remove the seat from vehicle. See Body/Seats/SEAT - Removal
  2. Remove the seat back. See Body/Seats/COVER, Seat Back - Removal
  3. Disconnect the heated seat connector, if equipped.
  4. Remove the seat wire harness from the seat pan.
  5. Remove the seat cushion bolts (1) and remove the seat cushion from the adjuster.

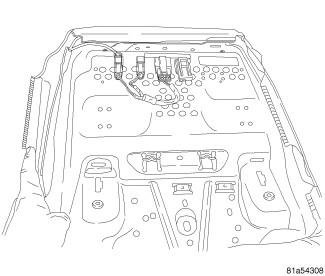

    Fig 2: SEAT CUSHION SIDE J-STRAPS
    GC0123020Courtesy of CHRYSLER LLC
  6. Disengage the J-hook attaching the seat cover to the seat cushion pan.
  7. Carefully remove the seat cushion cover and foam from the seat pan.

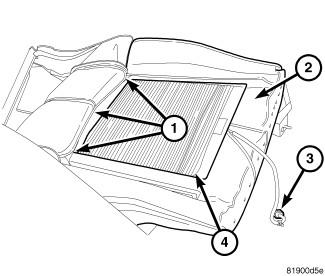

    Fig 3: SEAT CUSHION
    GC0123021Courtesy of CHRYSLER LLC
  8. Carefully pull the cover off of the seat to the hog rings (1).
  9. Cut the hog rings attaching the seat cover to seat cushion foam.
  10. Remove seat cushion cover from the foam.
