Pad, Instrument Panel: Removal: Removal

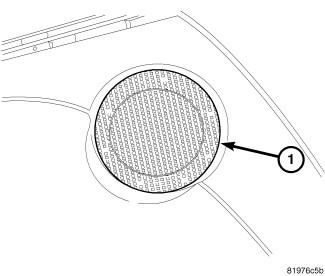

Fig 1: Speaker Grille

Courtesy of CHRYSLER LLC

Remove A-pillar trim. Using a trim stick C-4755 or equivalent, gently pry out and remove. See Body/Interior/PANEL, A-Pillar Trim - Removal .
Using a trim stick or equivalent, disengage clips holding speaker grille (1) to instrument panel.
Remove defroster grille (1). See Body/Instrument Panel/GRILLE, Defroster - Removal .
Remove the instrument panel center bezel. See Body/Instrument Panel/BEZEL, Instrument Panel - Removal .
Remove five top pad fasteners. Three fasteners located along the windshield and two located under passenger bezel.
Using a trim stick or equivalent, remove passenger bezel.

Fig 2: Top Pad
Courtesy of CHRYSLER LLC
Remove the airbag fasteners from the instrument panel reinforcement. Refer to Restraints/AIR BAG, Passenger - Removal .
CAUTION: The Instrument Panel Top pad may be hard to unsnap from the instrument panel. Be sure not to mar, scuff, or damage the instrument panel pad.
Pull top cover rearward to disengage hooks holding front of top pad to instrument panel.
Remove top pad from vehicle.
NOTE: If replacing the top pad, transfer the passenger airbag to the new top pad. Refer to Restraints/AIR BAG, Passenger - Removal .
