Cap, Instrument Panel End: Removal: Removal

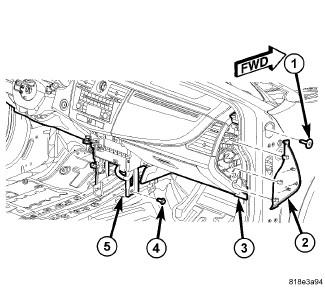

Fig 1: Instrument Panel End Cover
GC0122968Courtesy of CHRYSLER LLC
NOTE: Right side shown, left side similar.
  1. Open front door.
  2. Using a trim stick special tool C-4755 or equivalent, disengage clips holding end cover (2) to instrument panel (3).
