Weld Locations - Convertible
WELD LOCATION MATRIX
| DESCRIPTION | FIGURE |
|---|---|

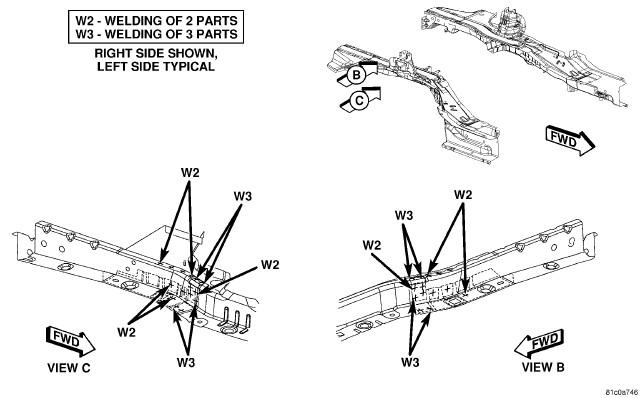

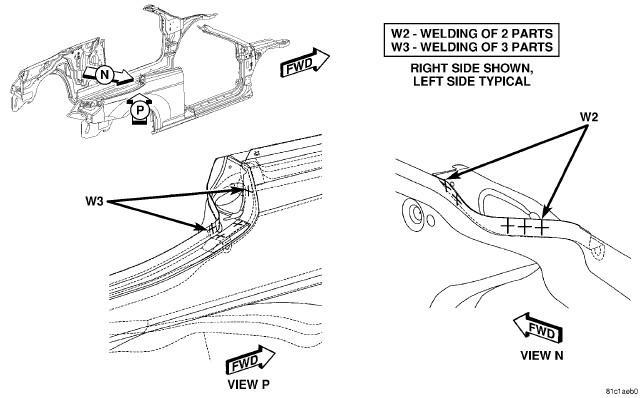

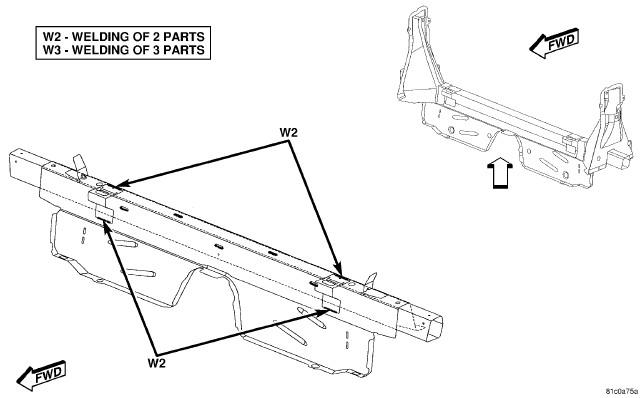

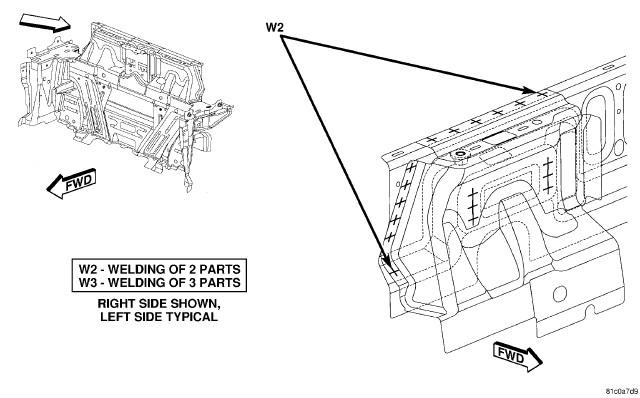

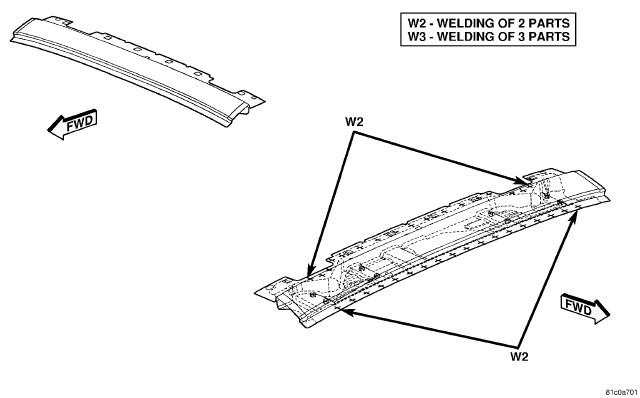

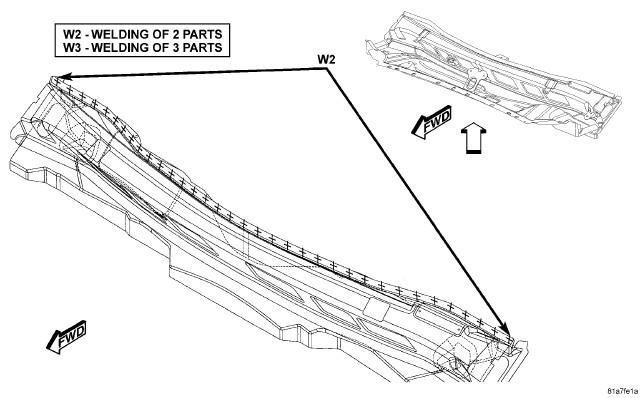

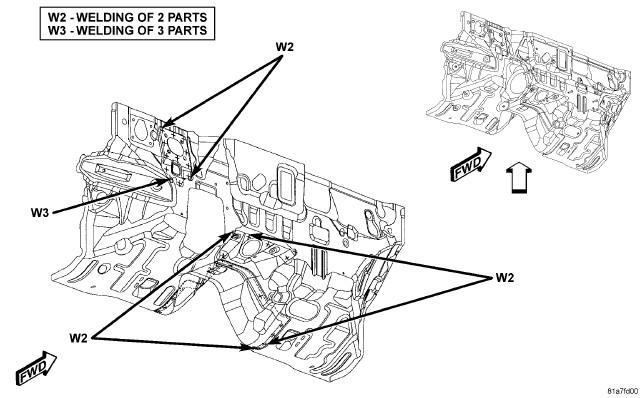

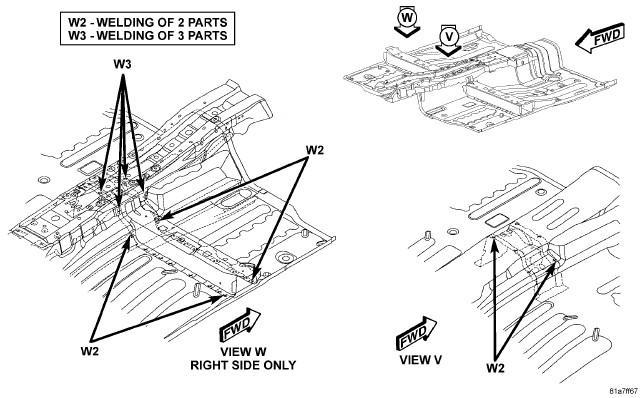

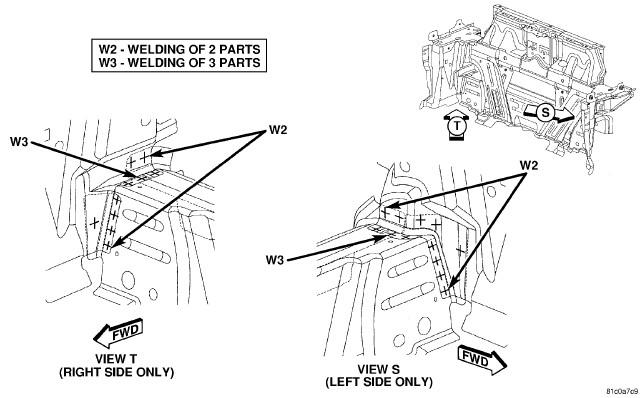

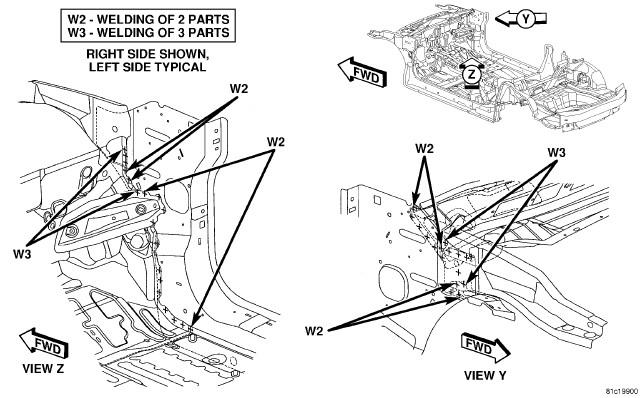

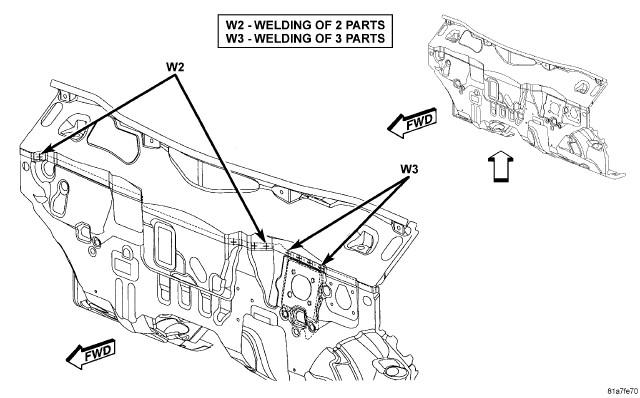

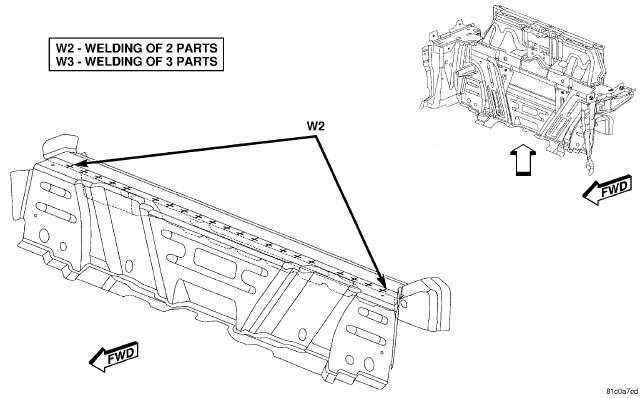

| Dash (1 of 3) | Fig 1 |

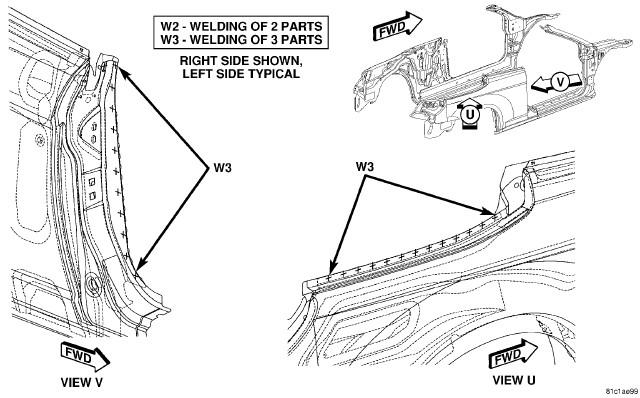

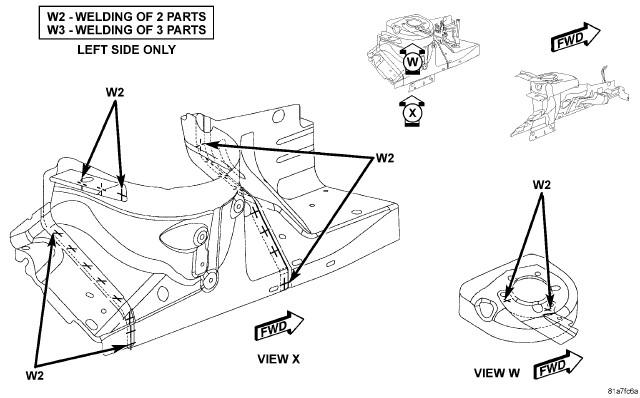

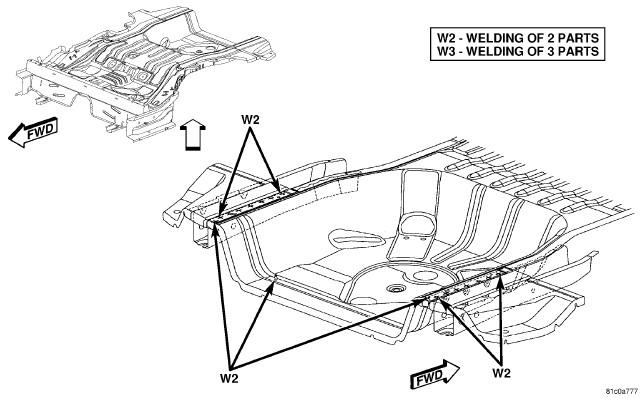

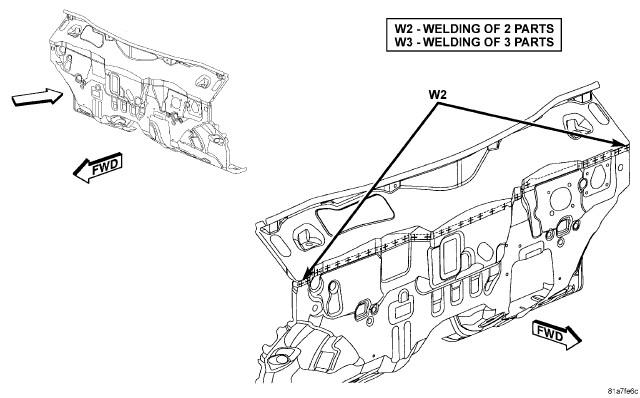

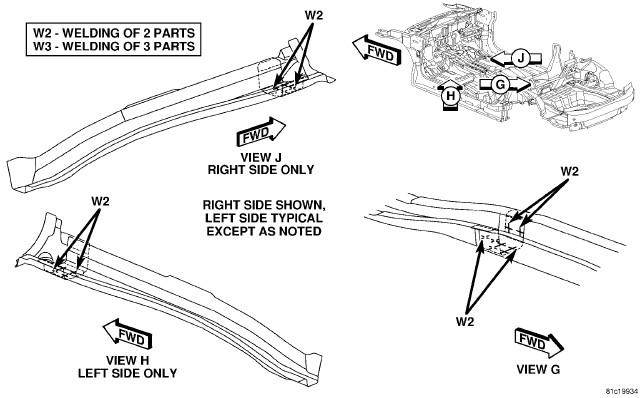

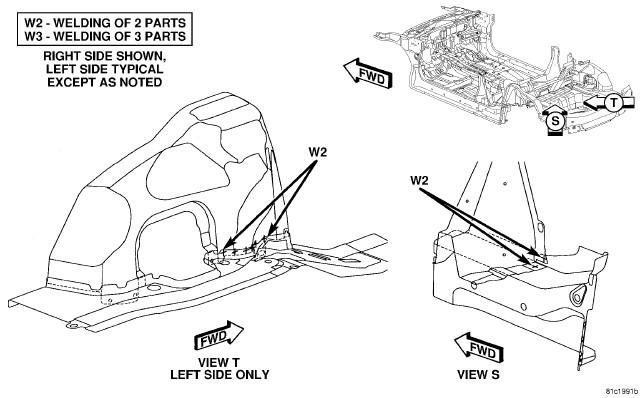

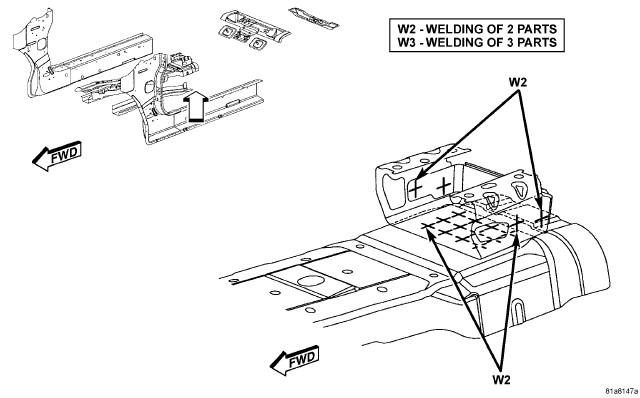

| Dash (2 of 3) | Fig 2 |

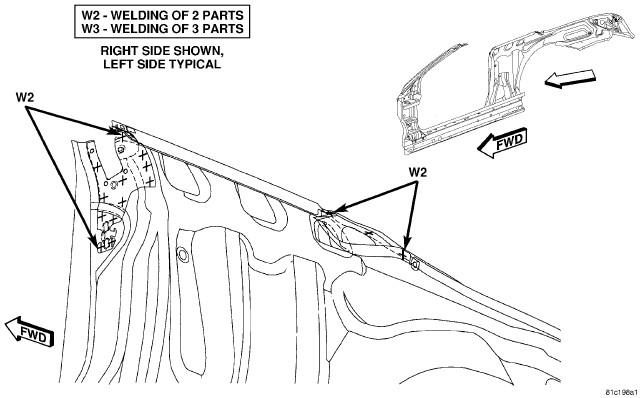

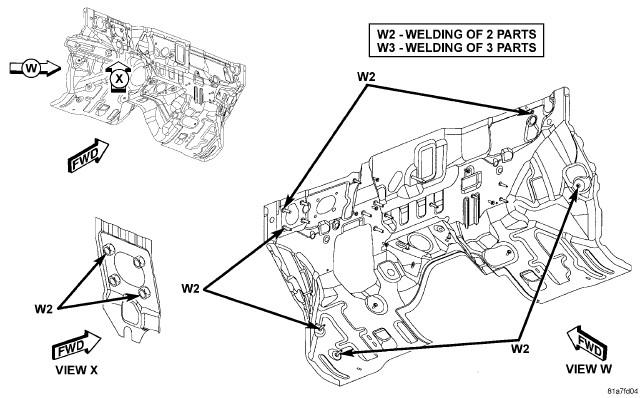

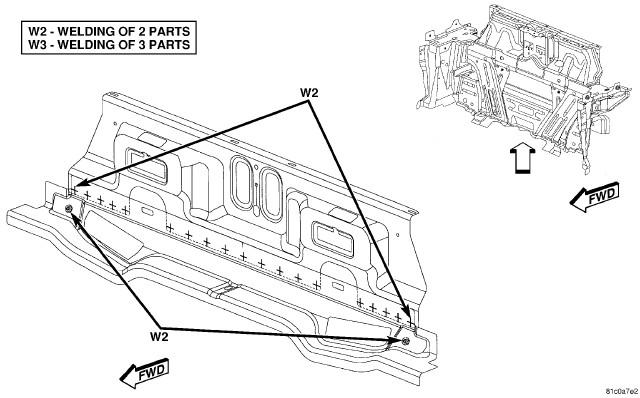

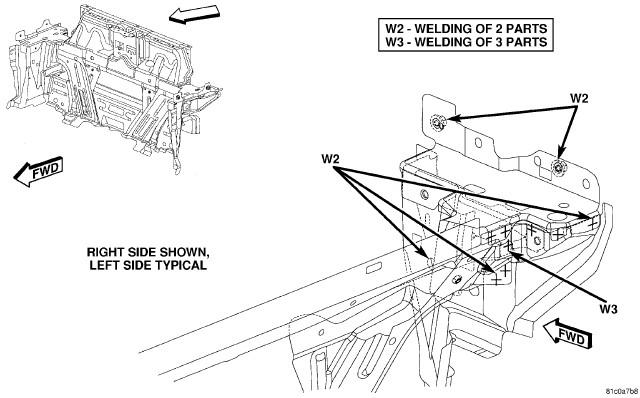

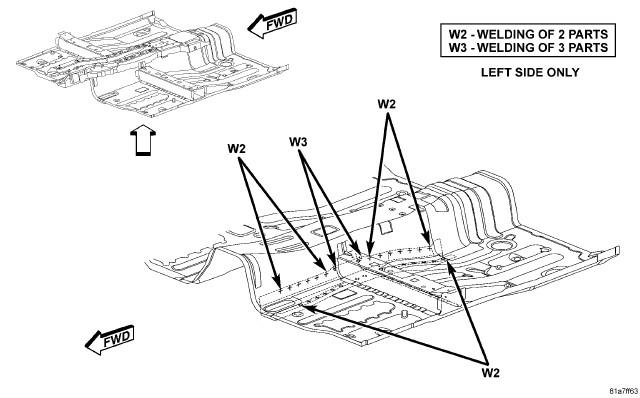

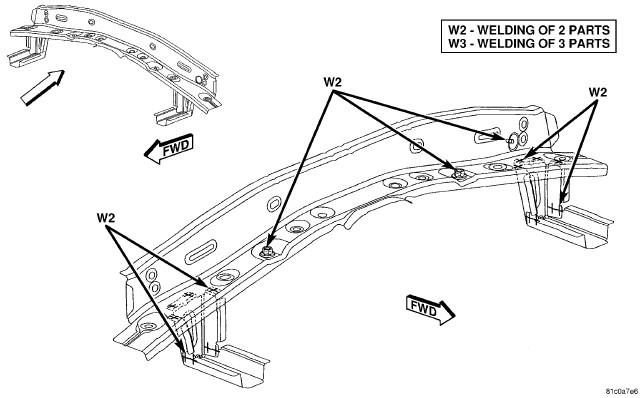

| Dash (3 of 3) | Fig 3 |

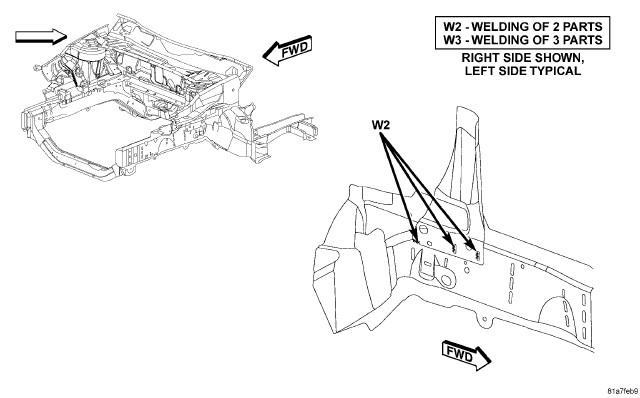

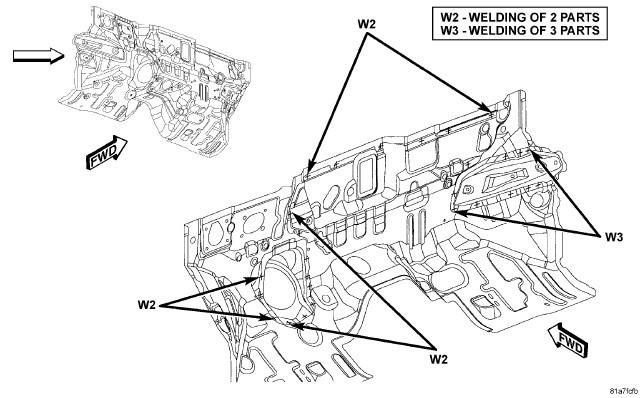

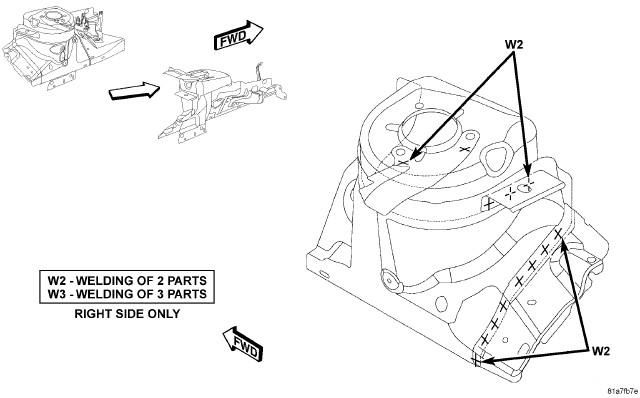

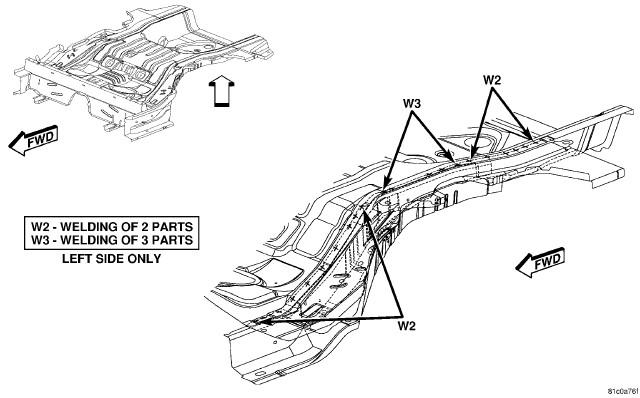

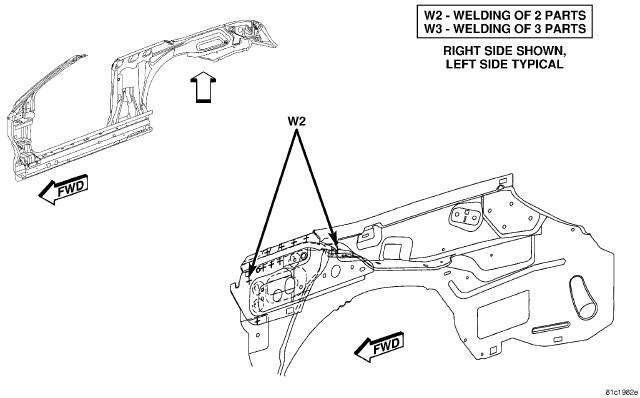

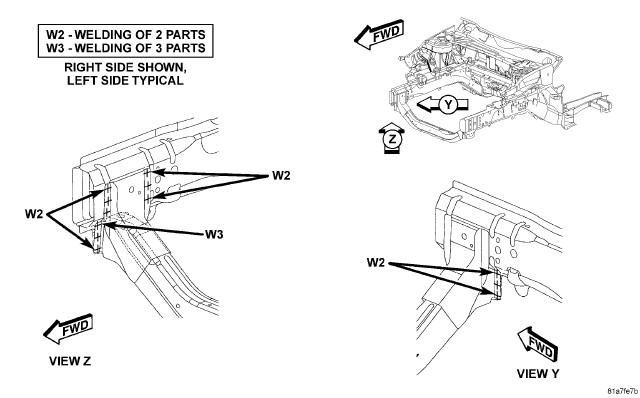

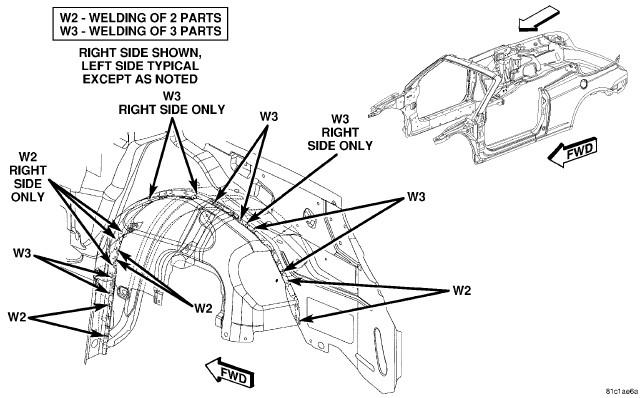

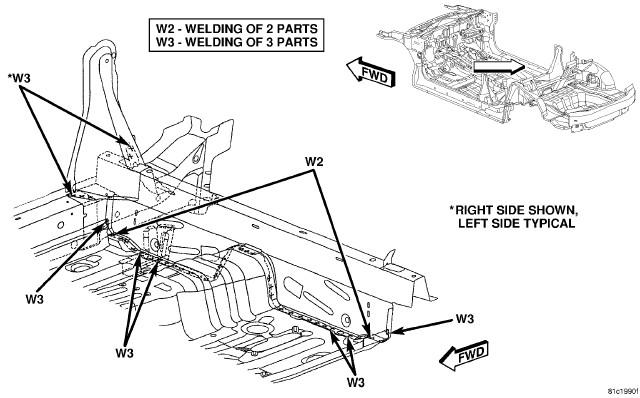

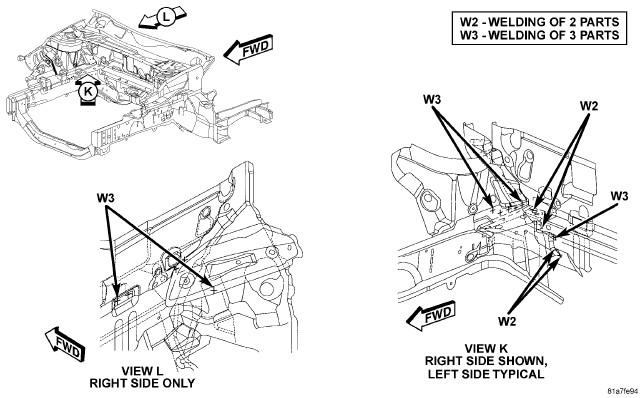

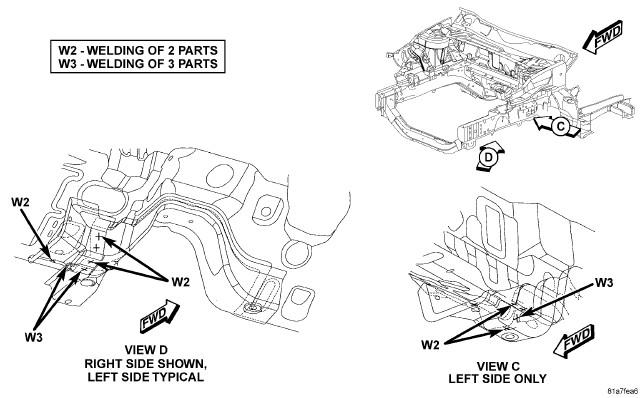

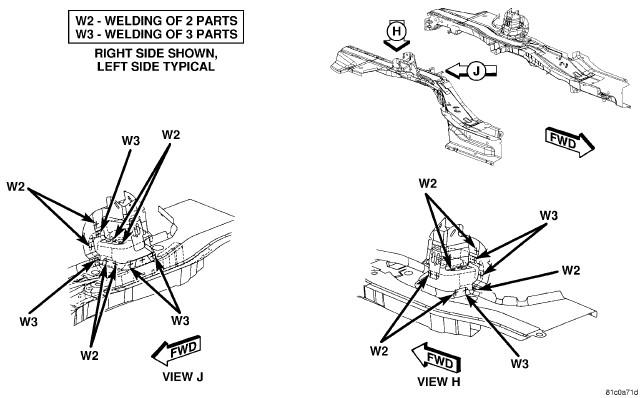

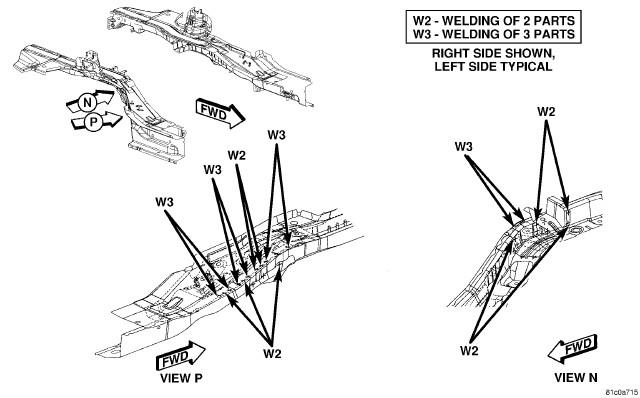

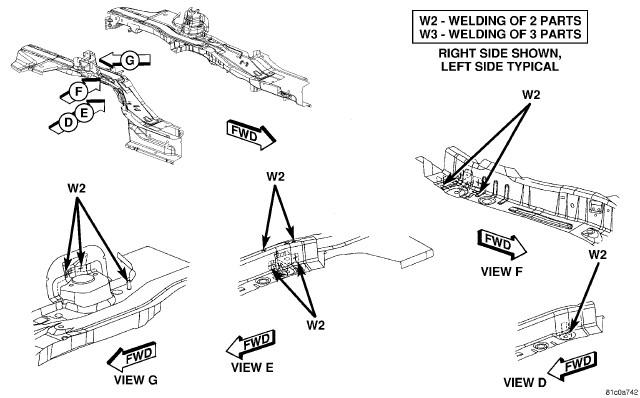

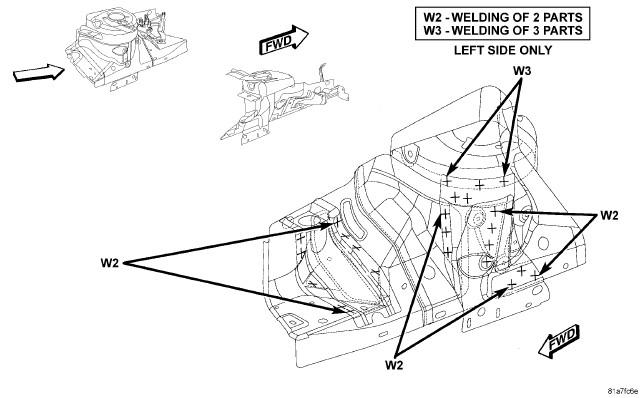

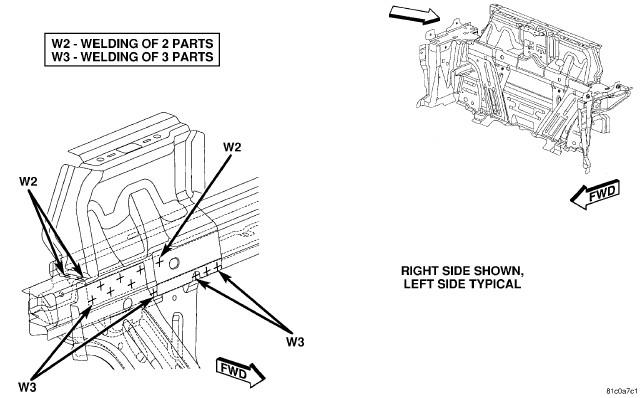

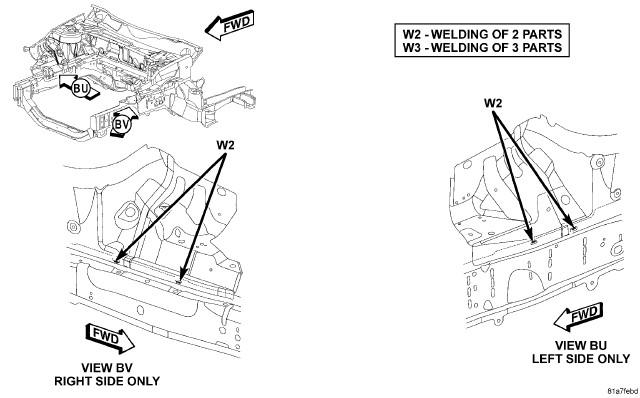

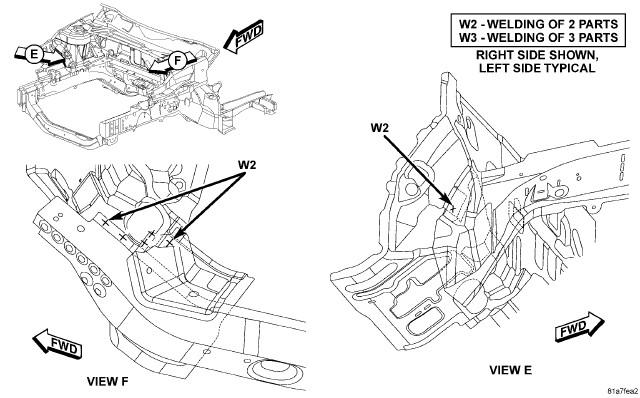

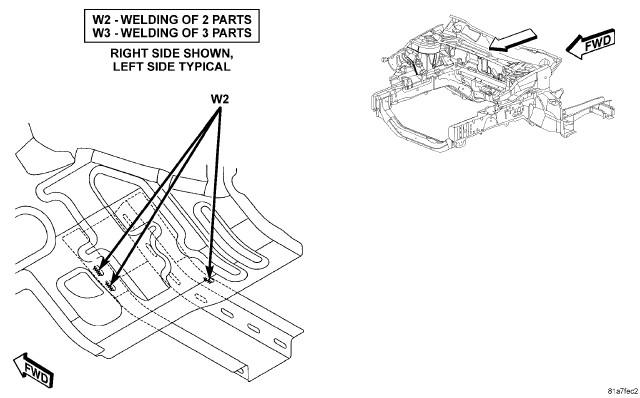

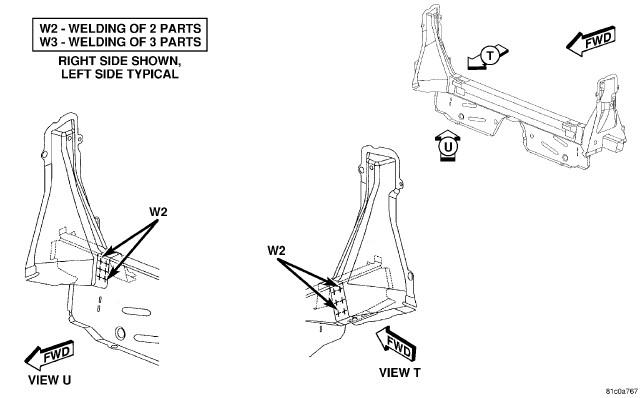

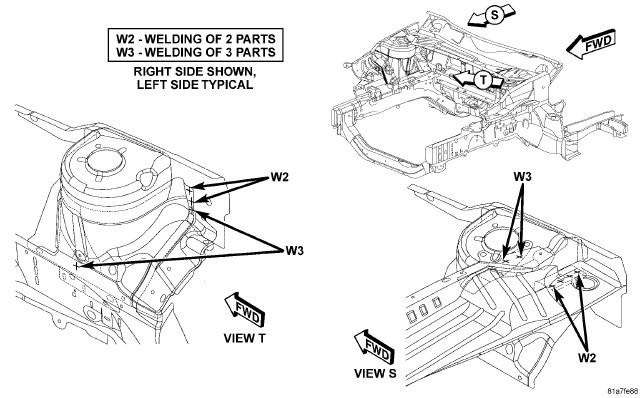

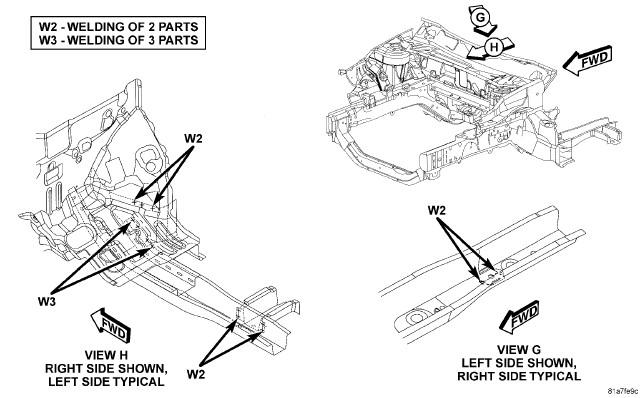

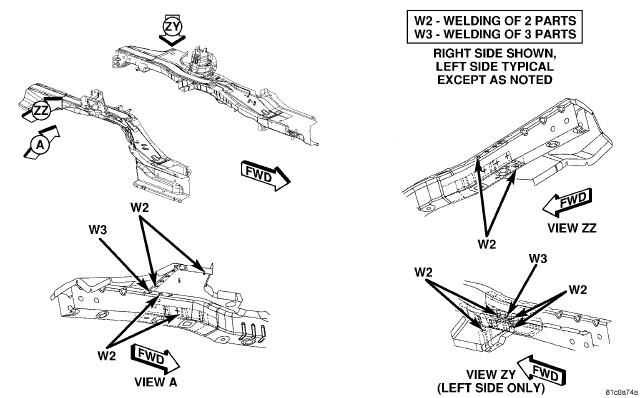

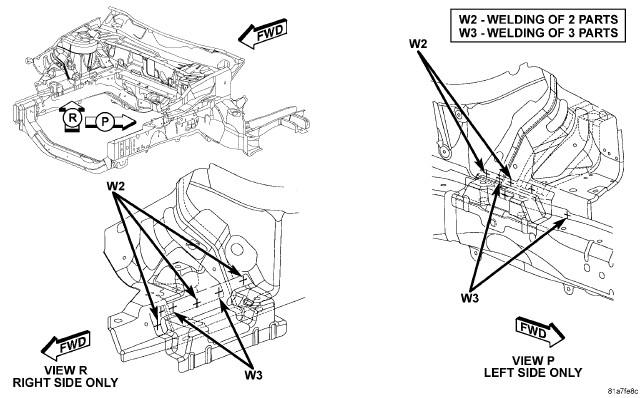

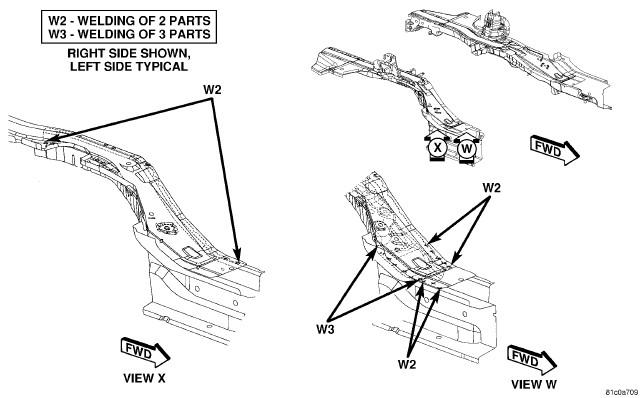

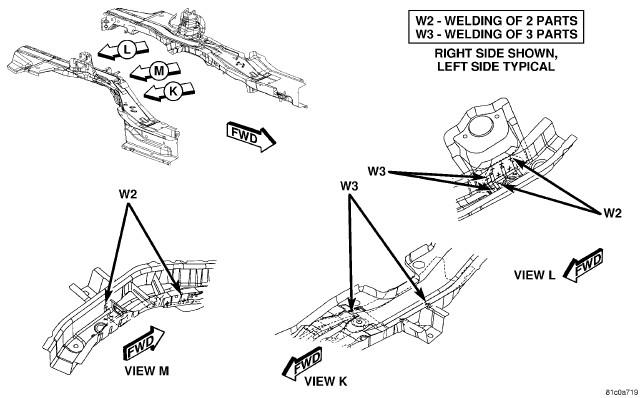

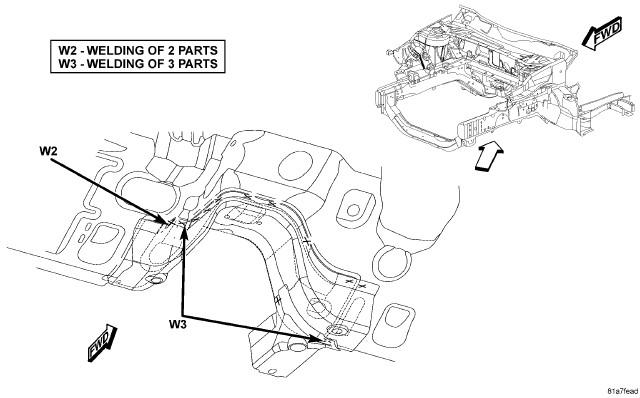

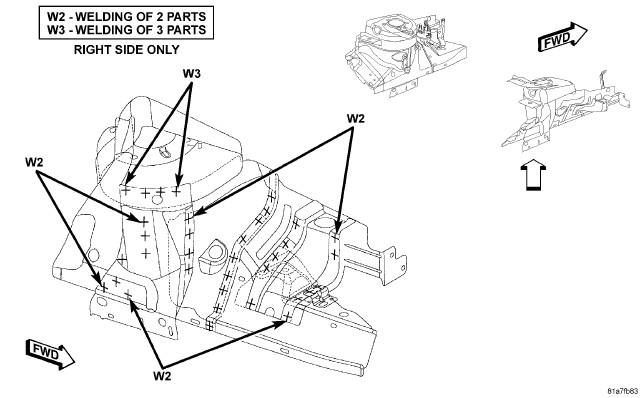

| Engine Box (1 of 17) | Fig 4 |

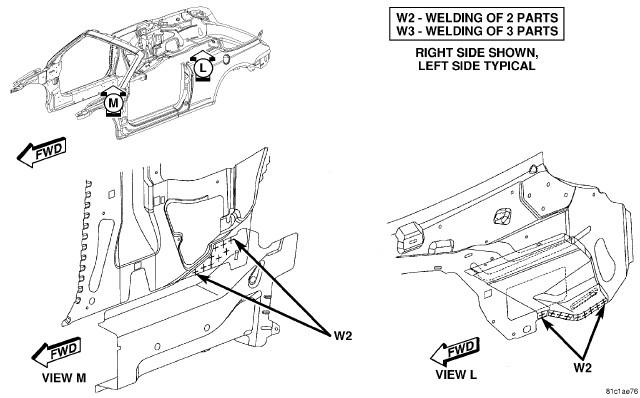

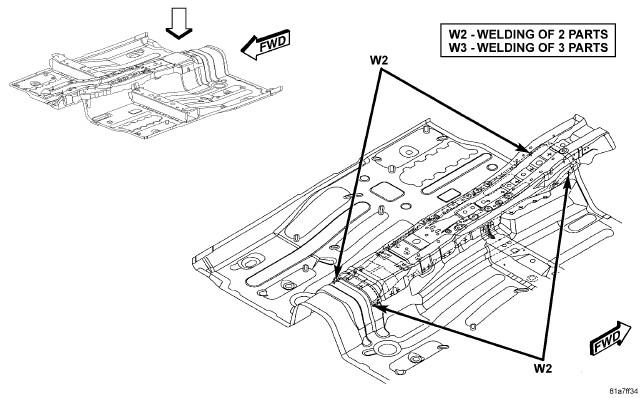

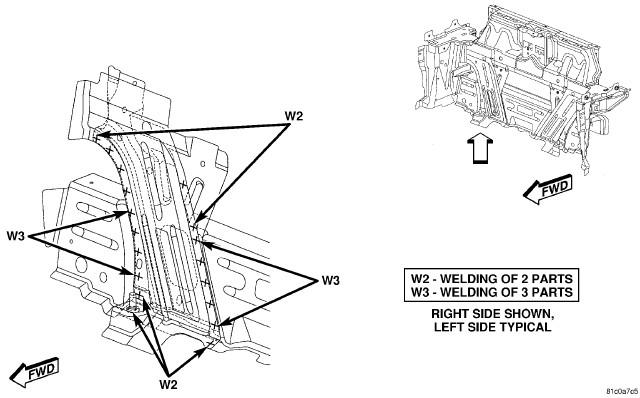

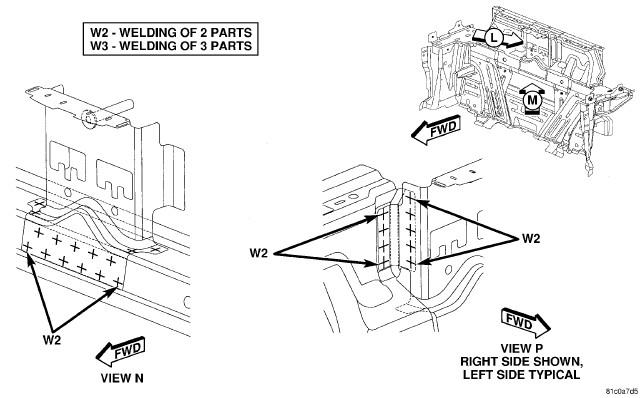

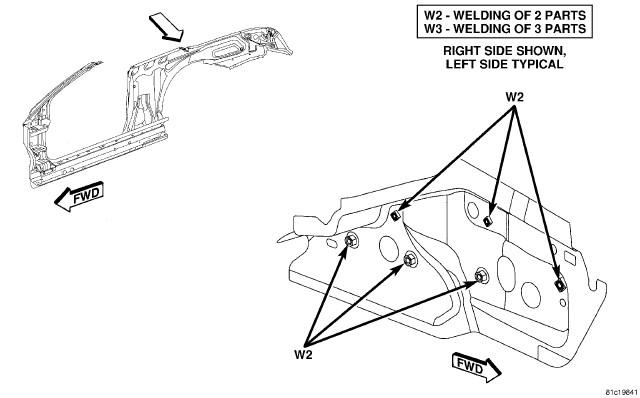

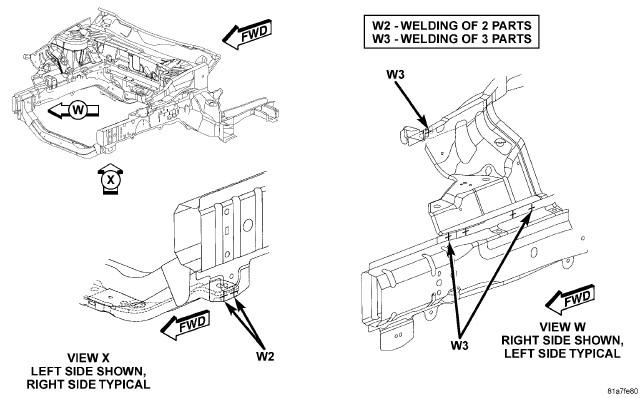

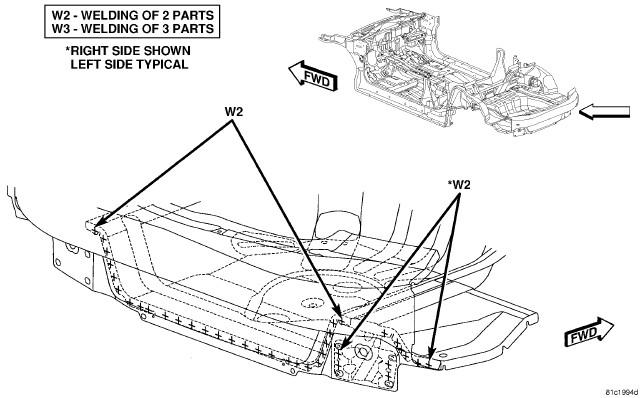

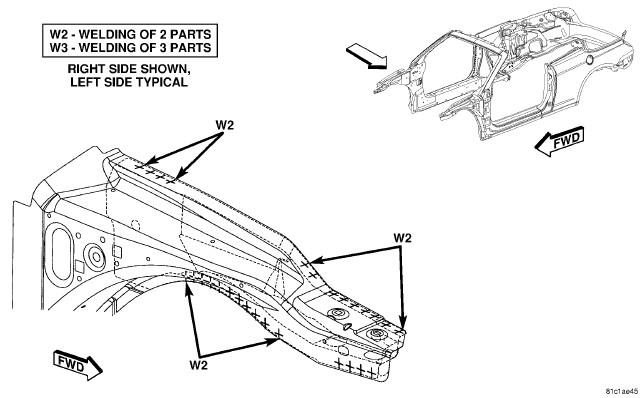

| Engine Box (2 of 17) | Fig 5 |

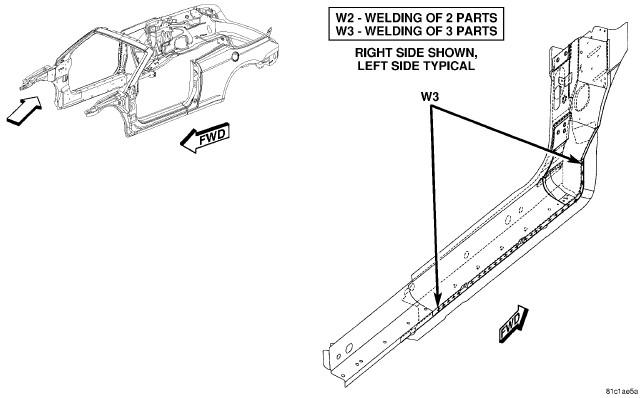

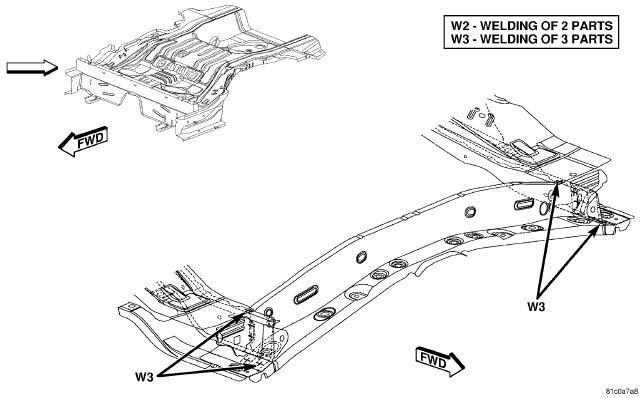

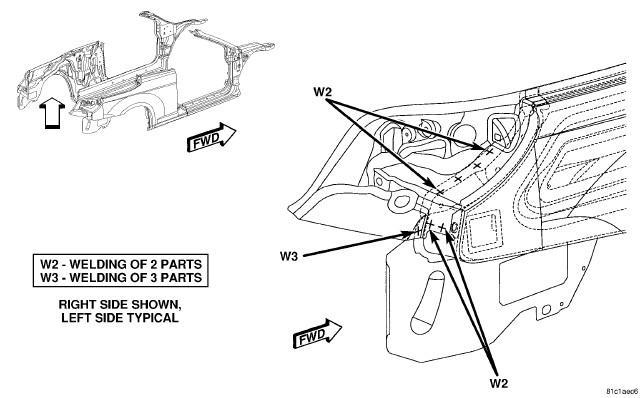

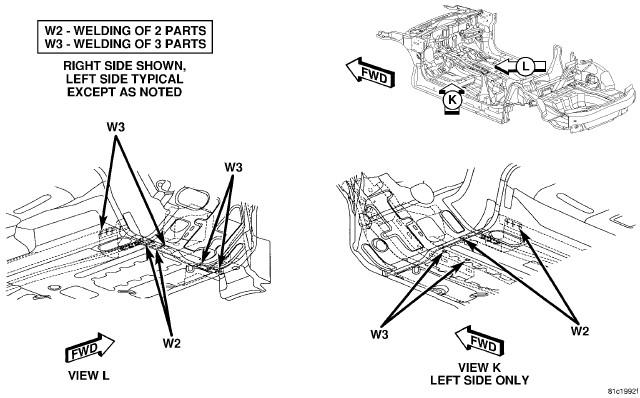

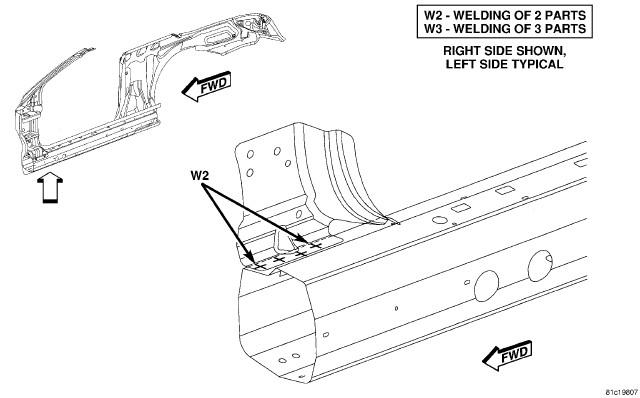

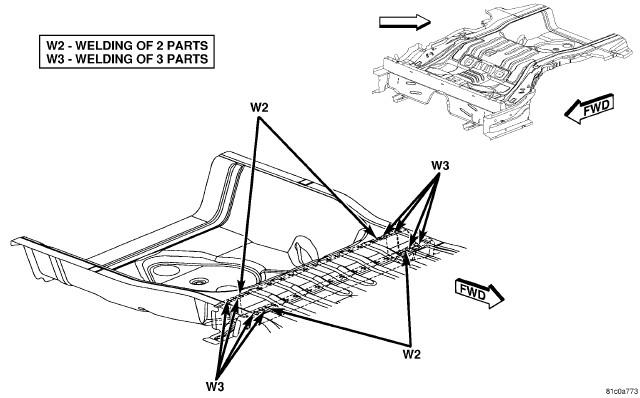

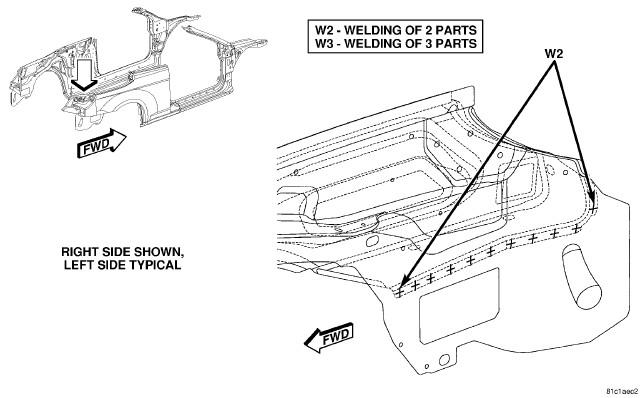

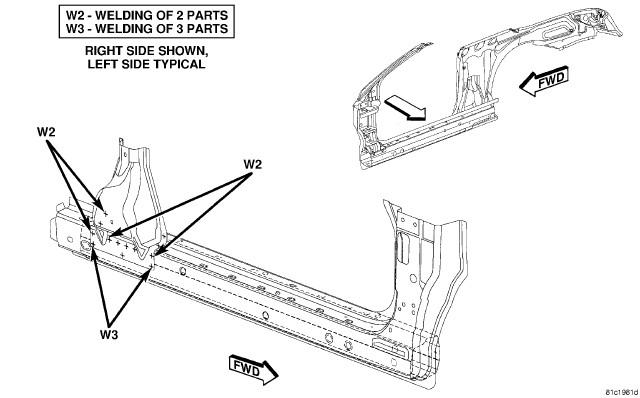

| Engine Box (3 of 17) | Fig 6 |

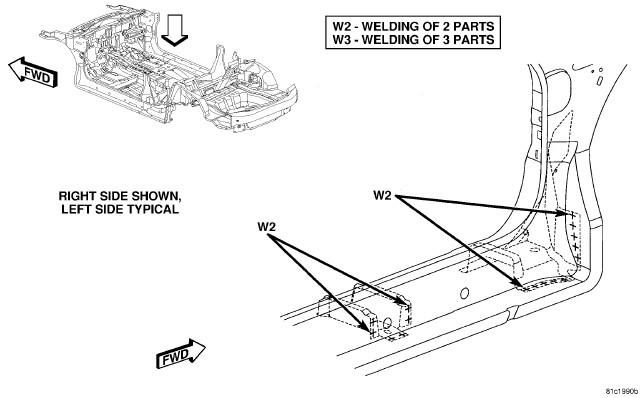

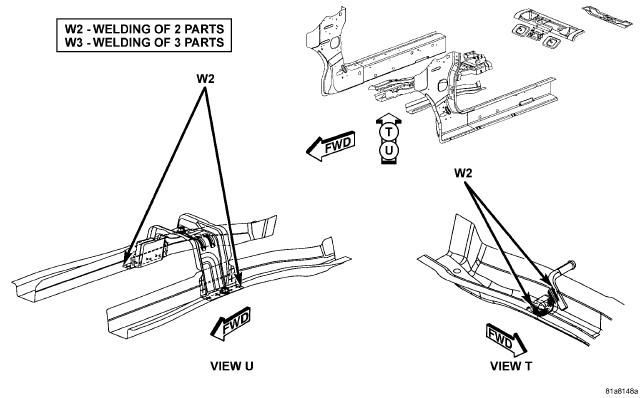

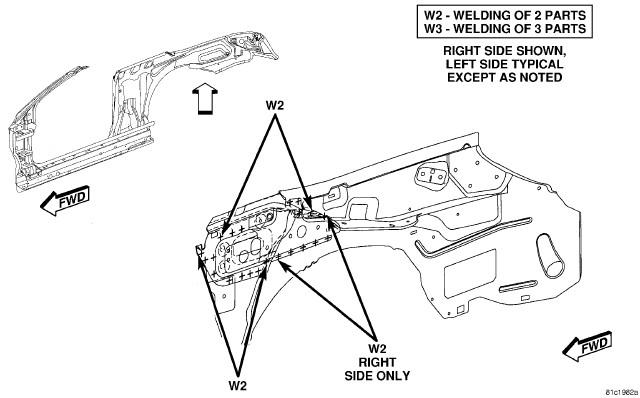

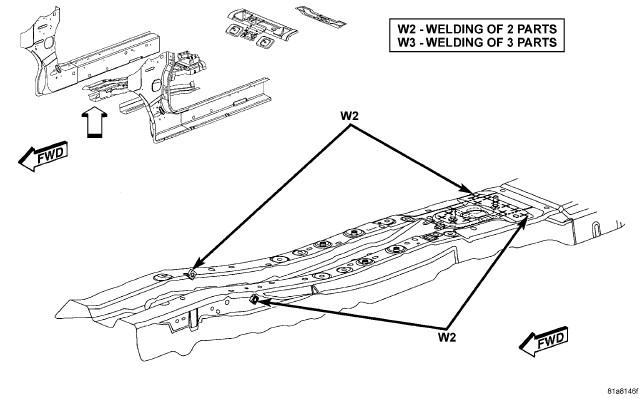

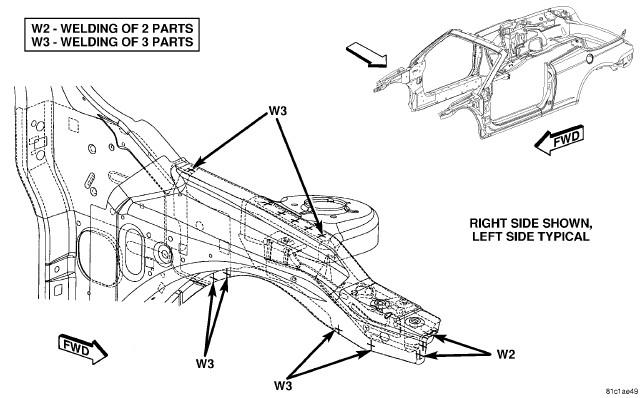

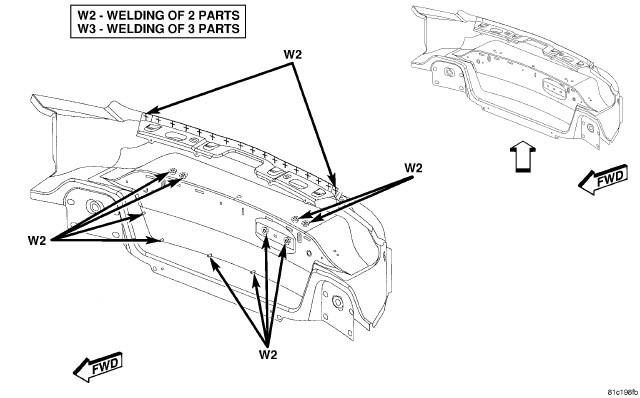

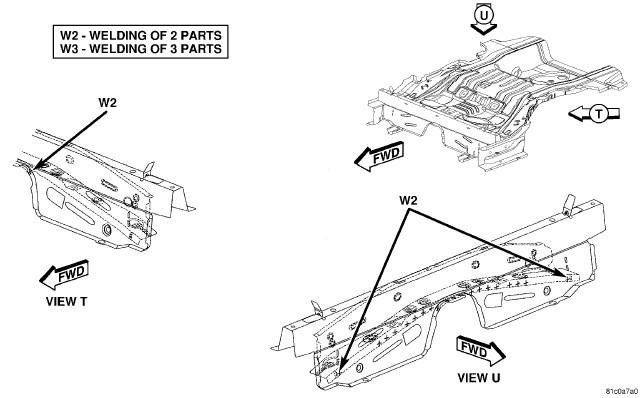

| Engine Box (4 of 17) | Fig 7 |

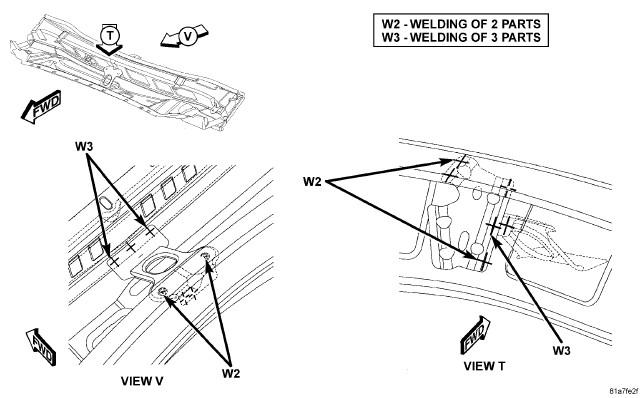

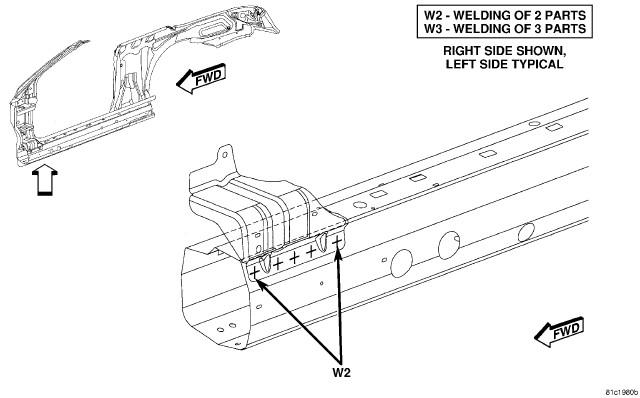

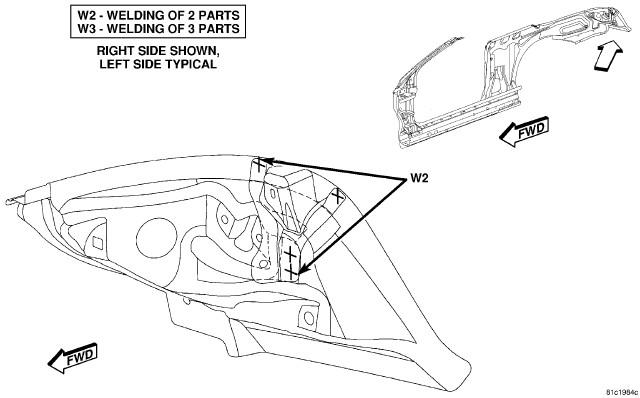

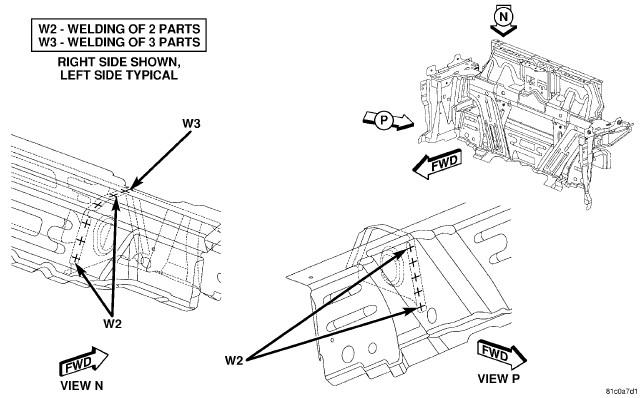

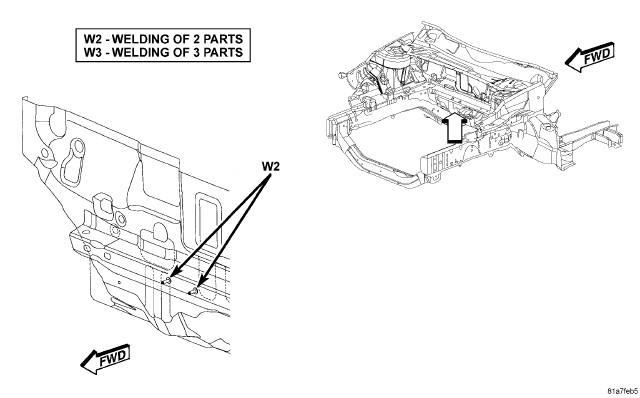

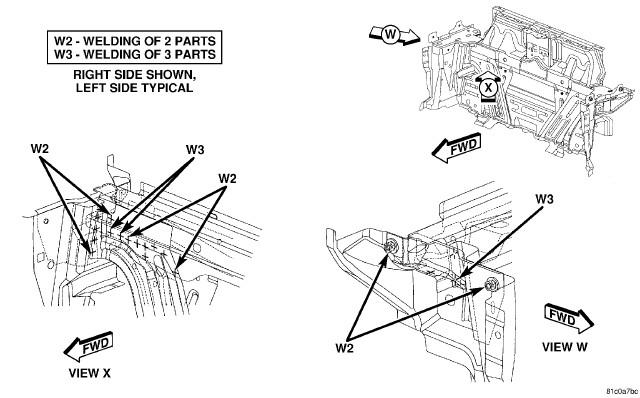

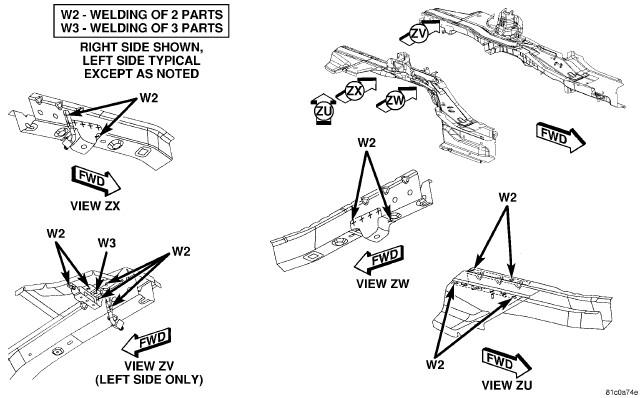

| Engine Box (5 of 17) | Fig 8 |
| Engine Box (6 of 17) | Fig 9 |
| Engine Box (7 of 17) | Fig 10 |
| Engine Box (8 of 17) | Fig 11 |
| Engine Box (9 of 17) | Fig 12 |
| Engine Box (10 of 17) | Fig 13 |
| Engine Box (11 of 17) | Fig 14 |
| Engine Box (12 of 17) | Fig 15 |
| Engine Box (13 of 17) | Fig 16 |
| Engine Box (14 of 17) | Fig 17 |
| Engine Box (15 of 17) | Fig 18 |
| Engine Box (16 of 17) | Fig 19 |
| Engine Box (17 of 17) | Fig 20 |

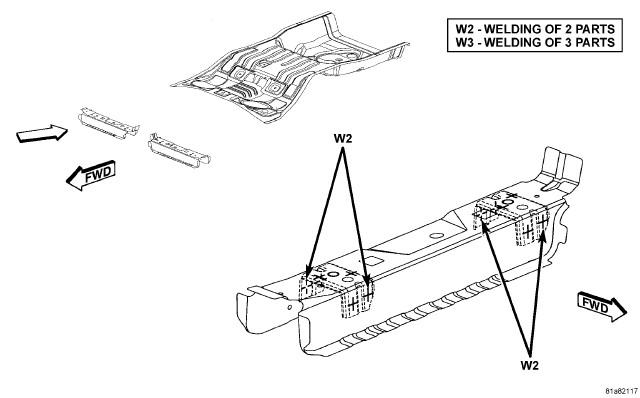

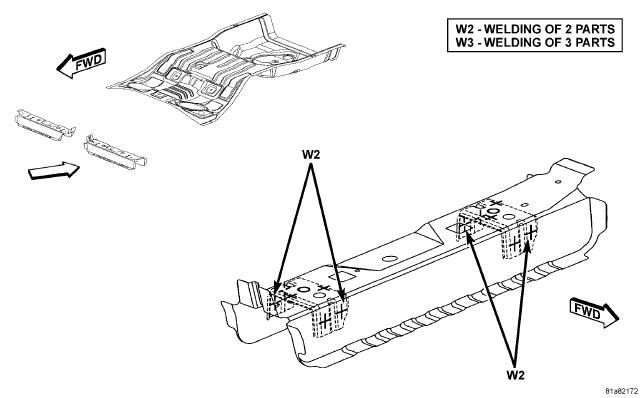

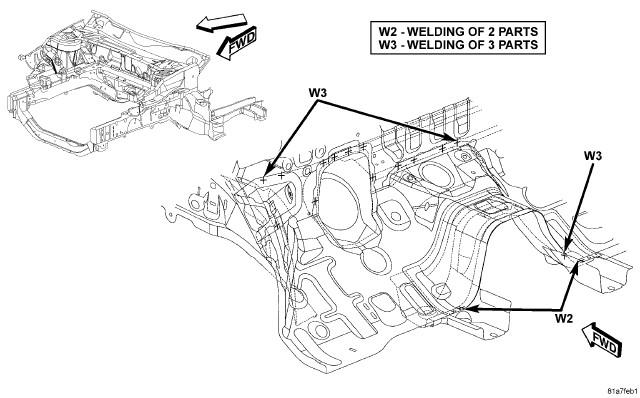

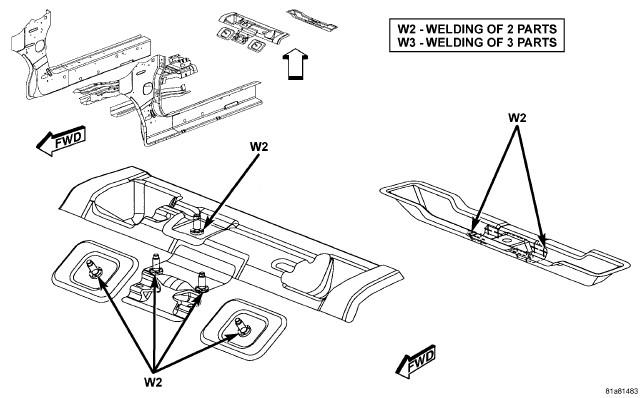

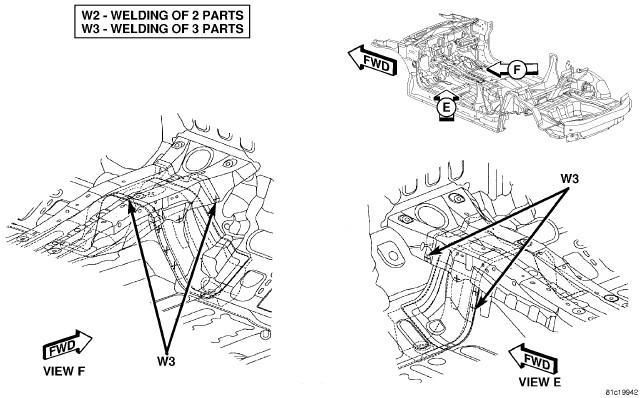

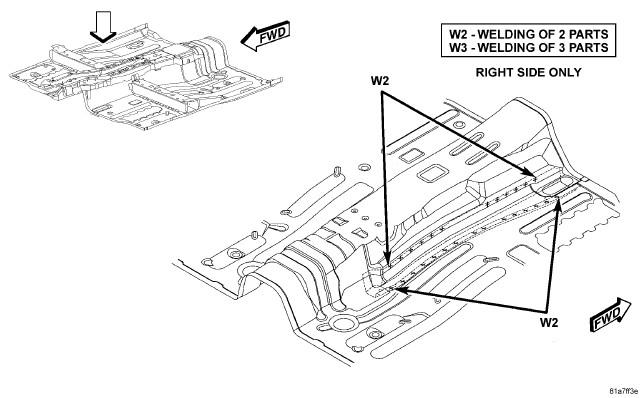

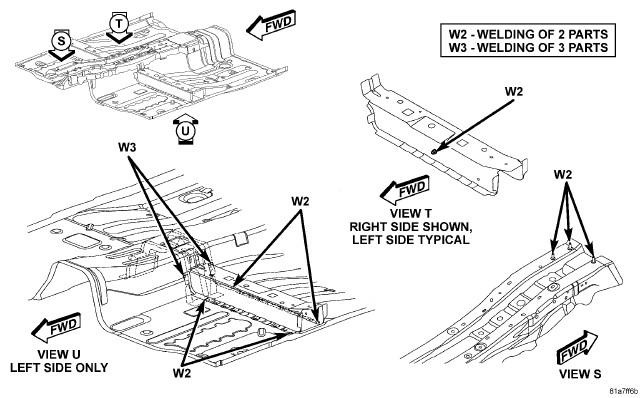

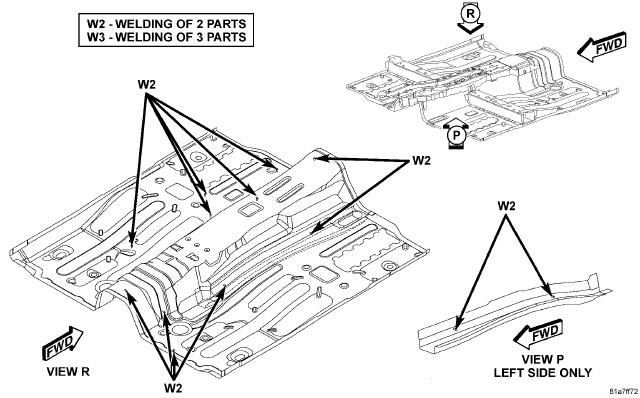

| Front Floor (1 of 6) | Fig 21 |
| Front Floor (2 of 6) | Fig 22 |
| Front Floor (3 of 6) | Fig 23 |
| Front Floor (4 of 6) | Fig 24 |
| Front Floor (5 of 6) | Fig 25 |
| Front Floor (6 of 6) | Fig 26 |

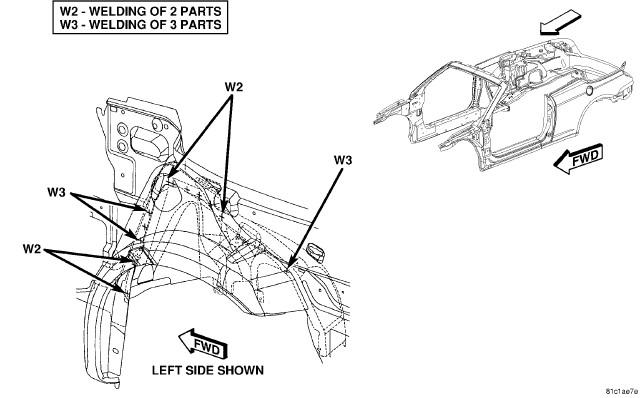

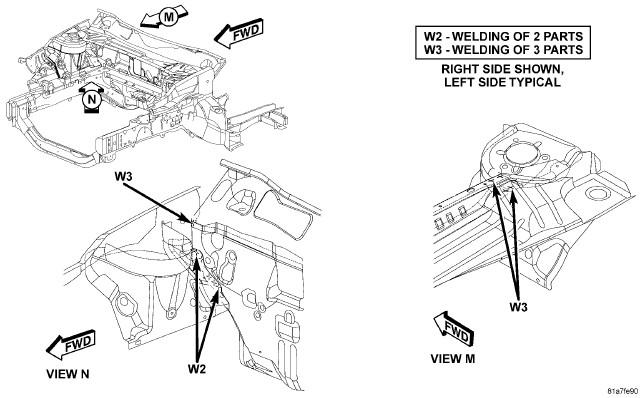

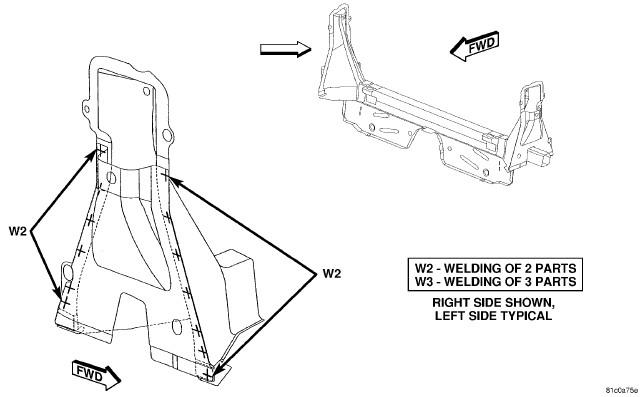

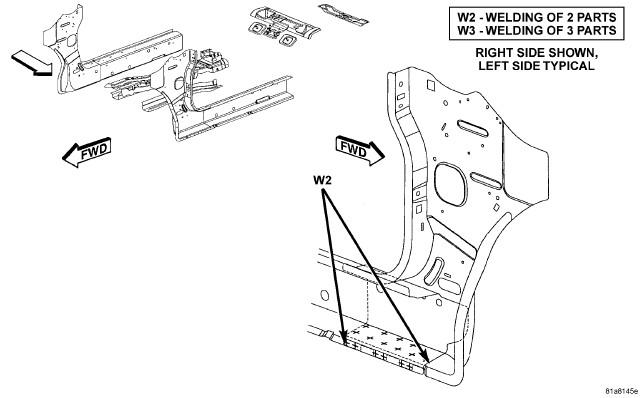

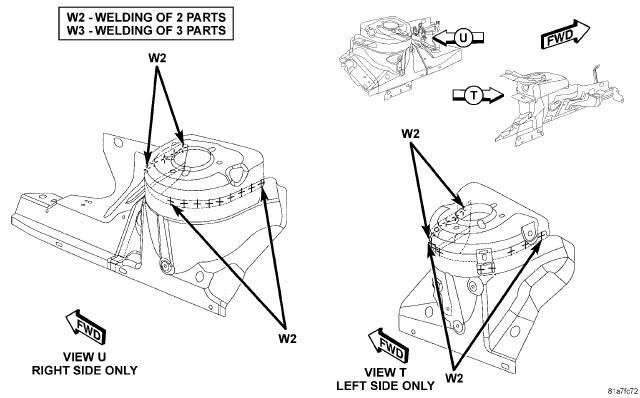

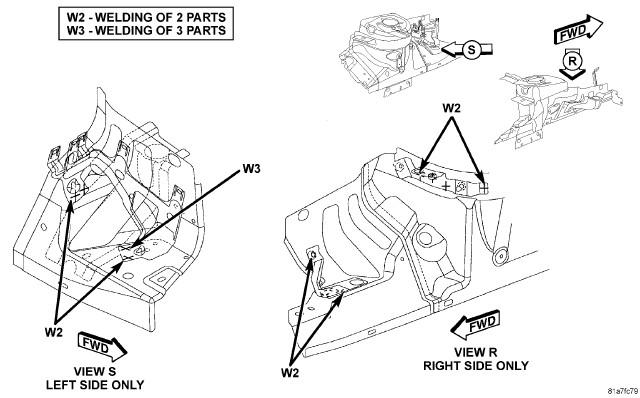

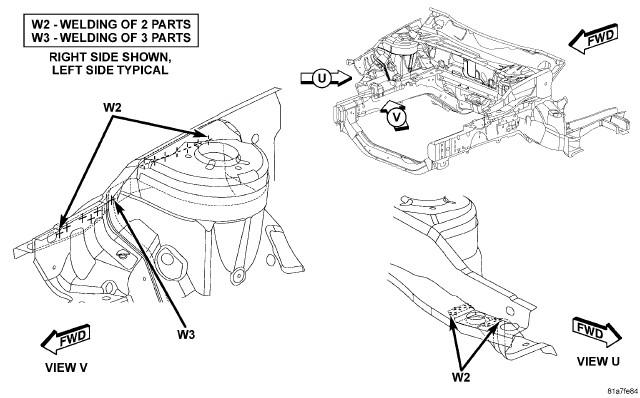

| Front Wheelhouse (1 of 6) | Fig 27 |

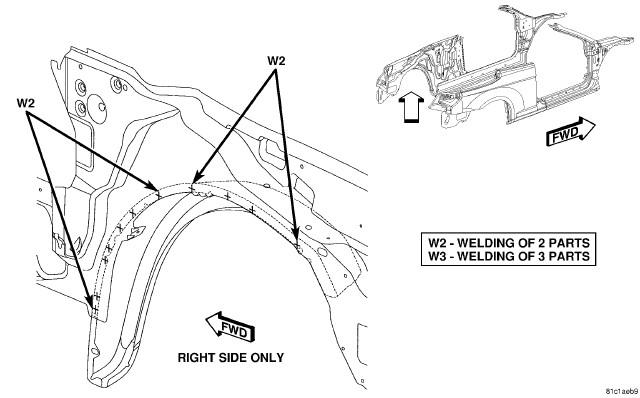

| Front Wheelhouse (2 of 6) | Fig 28 |
| Front Wheelhouse (3 of 6) | Fig 29 |
| Front Wheelhouse (4 of 6) | Fig 30 |
| Front Wheelhouse (5 of 6) | Fig 31 |
| Front Wheelhouse (6 of 6) | Fig 32 |

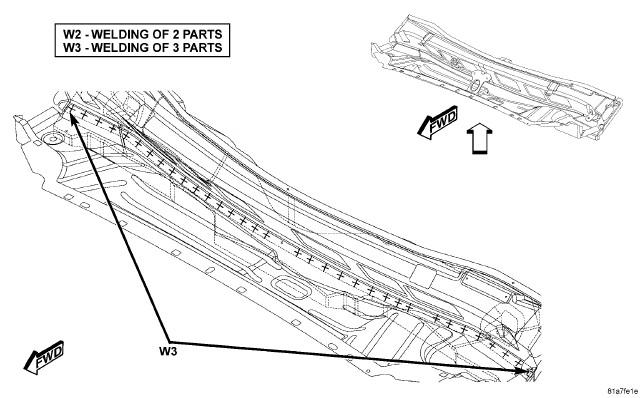

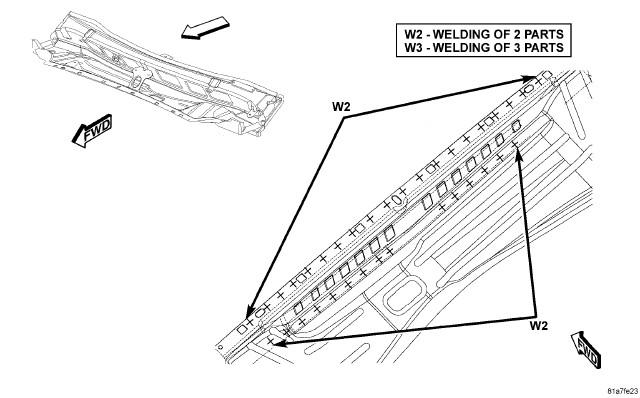

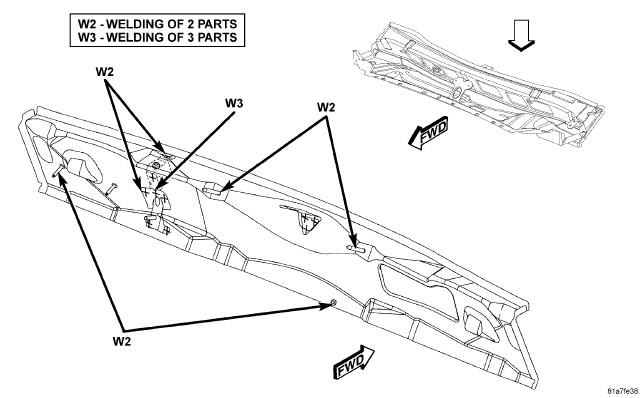

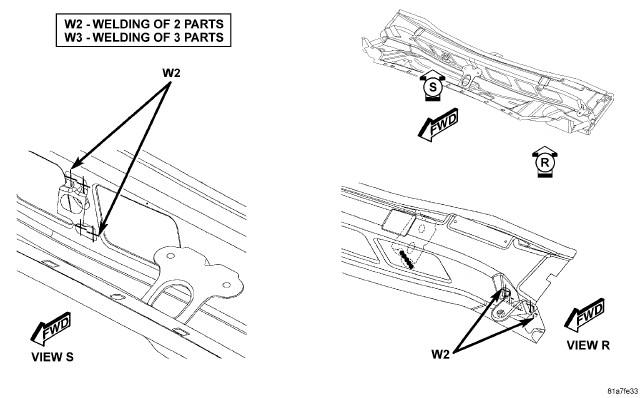

| Plenum/Cowl (1 of 7) | Fig 33 |

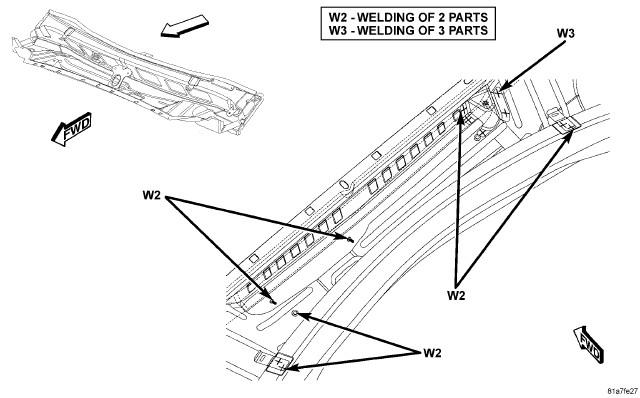

| Plenum/Cowl (2 of 7) | Fig 34 |
| Plenum/Cowl (3 of 7) | Fig 35 |
| Plenum/Cowl (4 of 7) | Fig 36 |
| Plenum/Cowl (5 of 7) | Fig 37 |
| Plenum/Cowl (6 of 7) | Fig 38 |
| Plenum/Cowl (7 of 7) | Fig 39 |

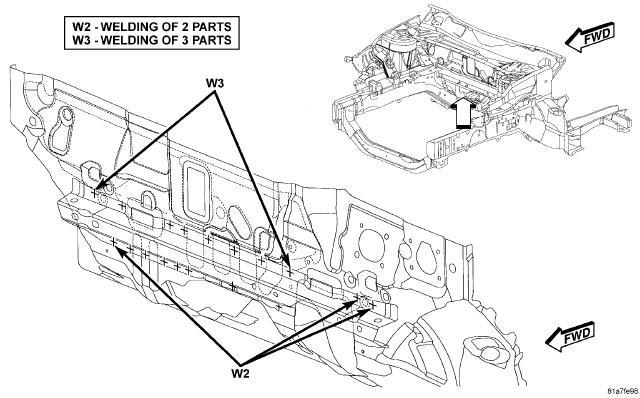

| Plenum/Dash (1 of 2) | Fig 40 |
| Plenum/Dash (2 of 2) | Fig 41 |

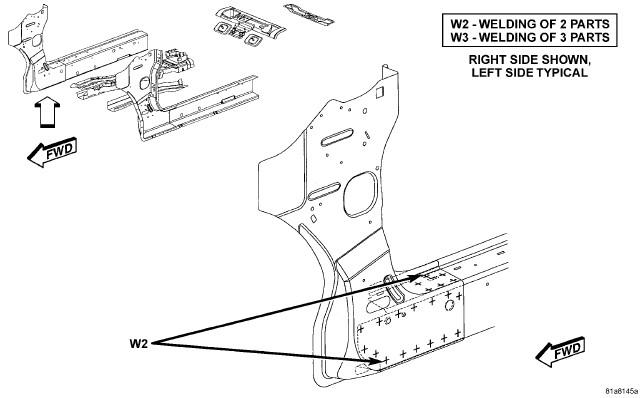

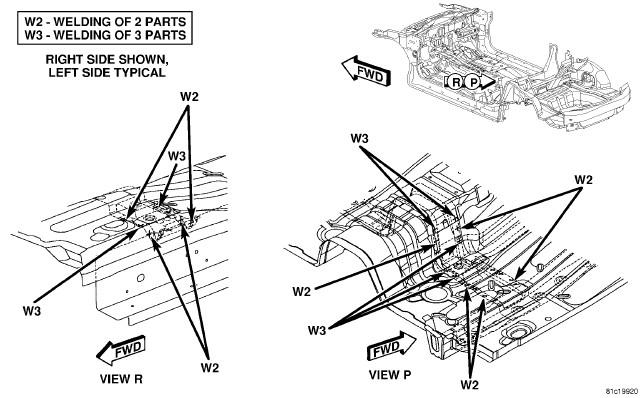

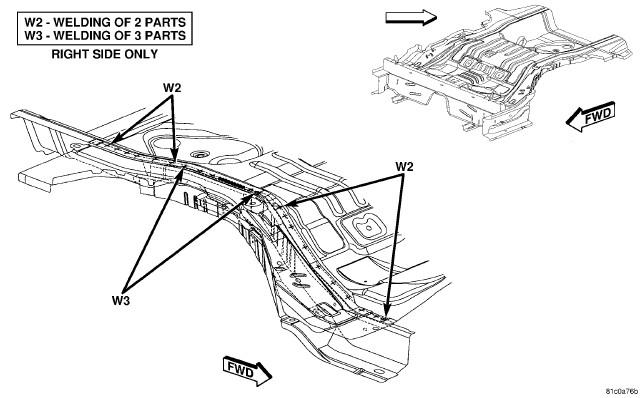

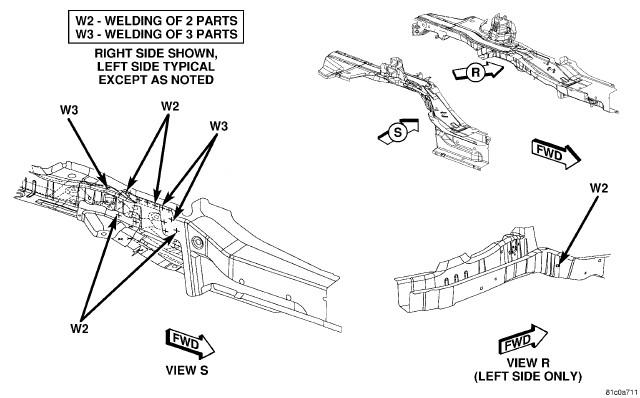

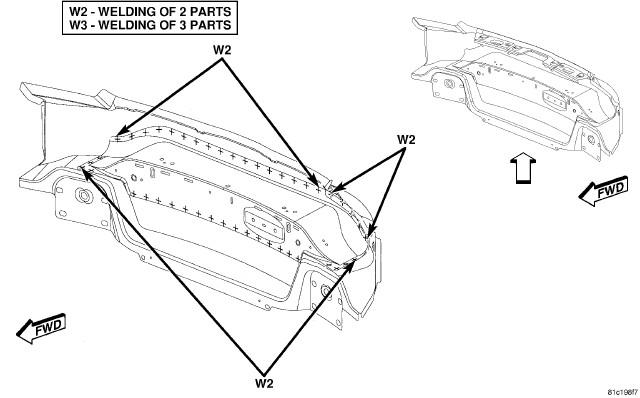

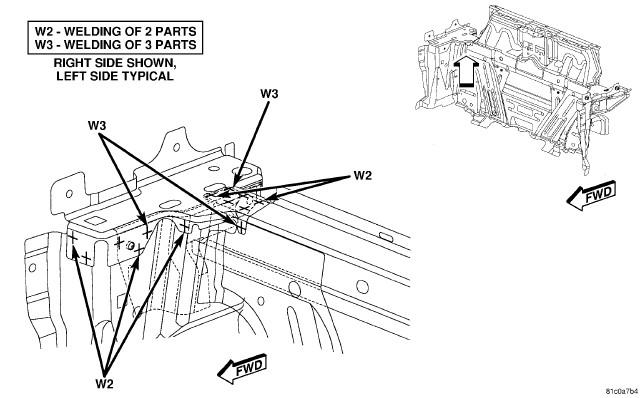

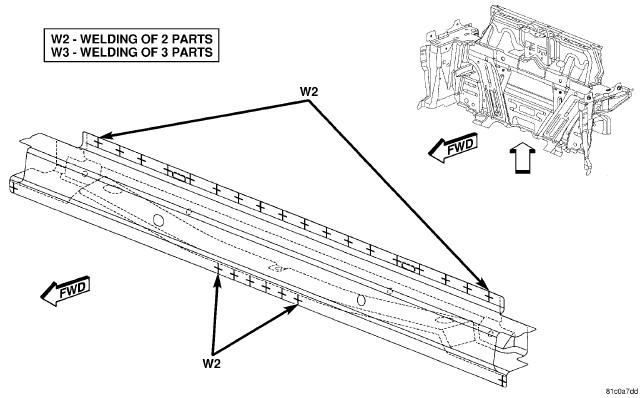

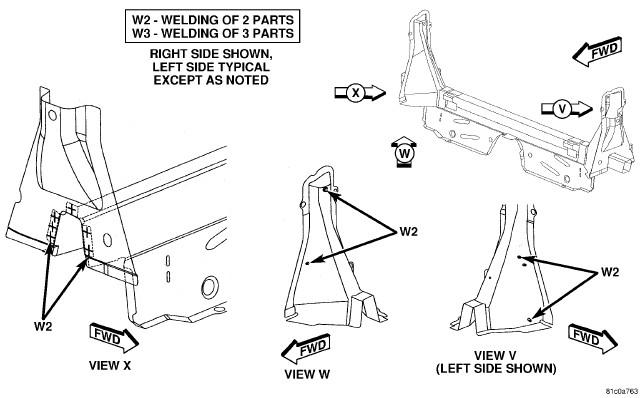

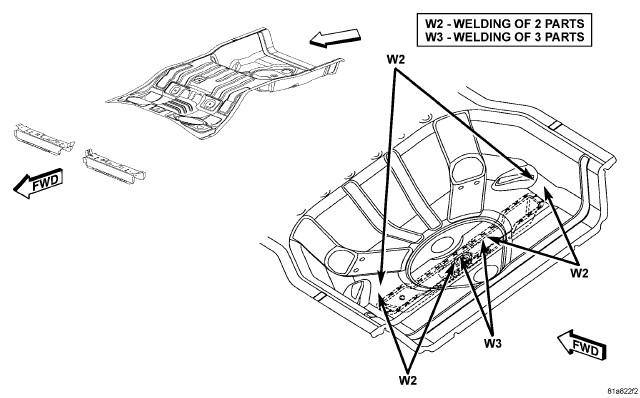

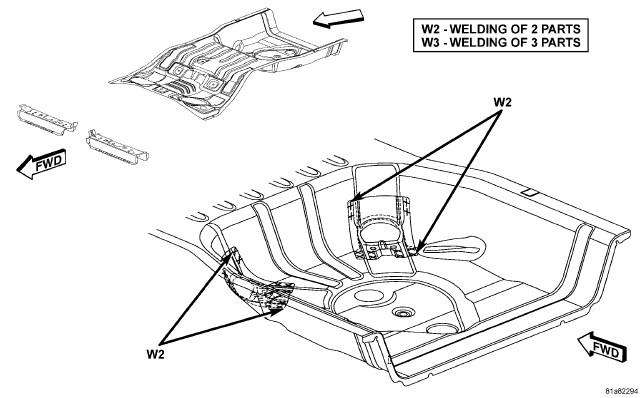

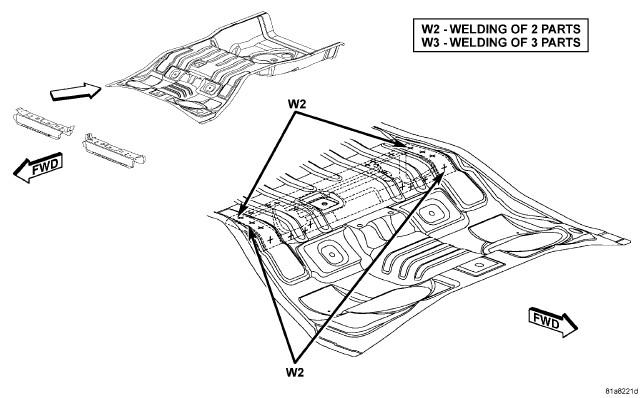

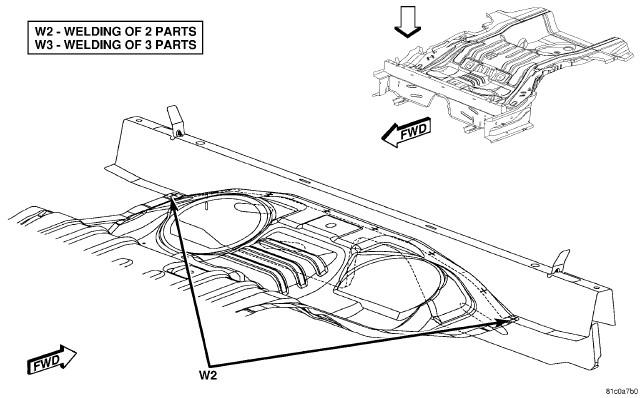

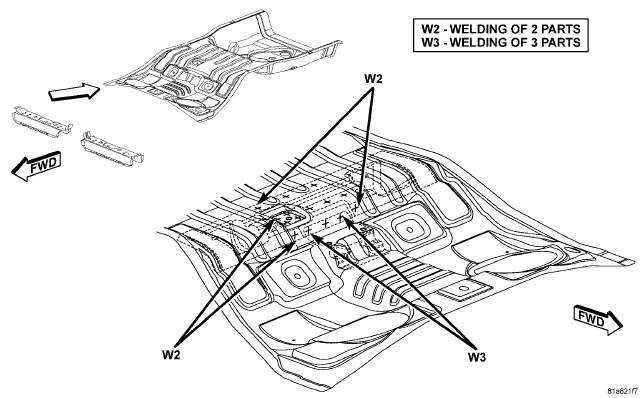

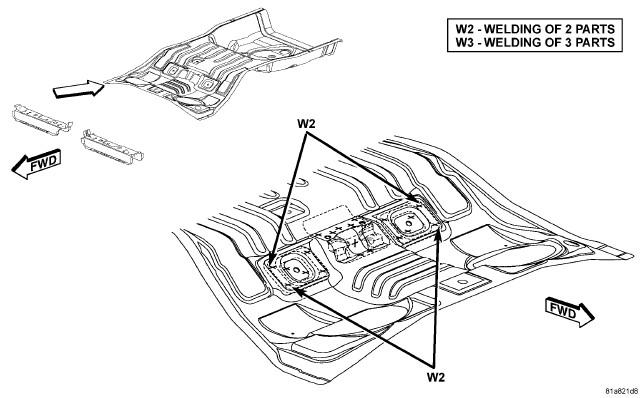

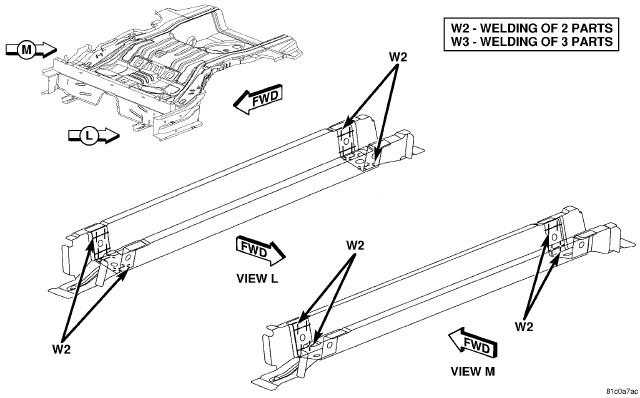

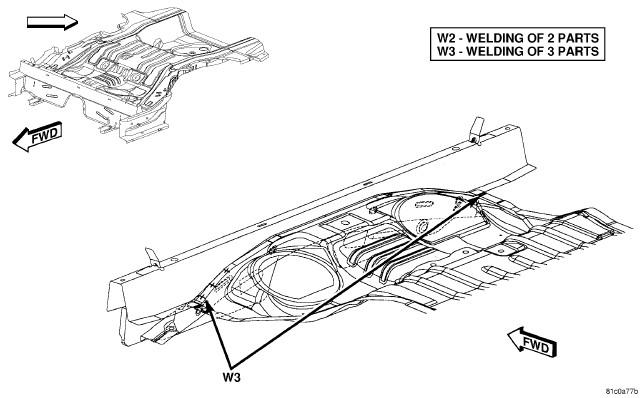

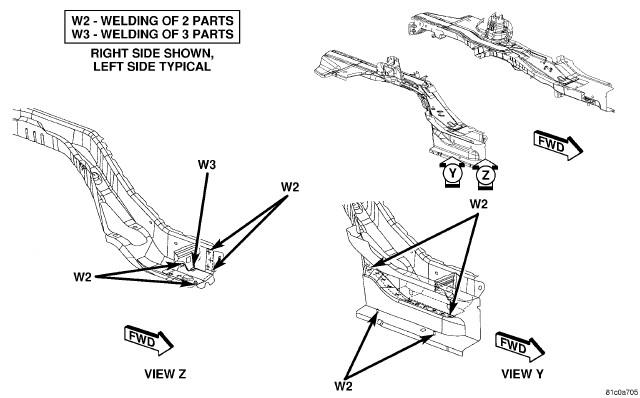

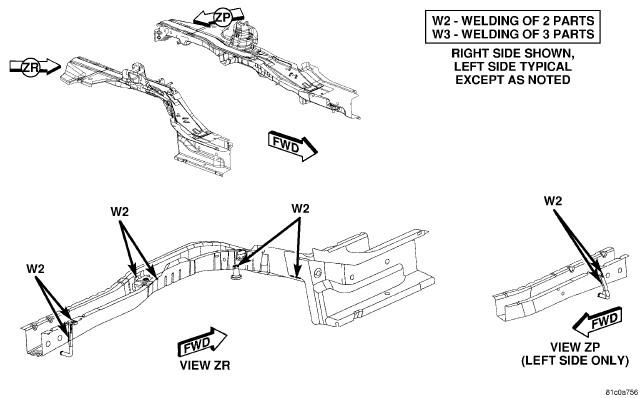

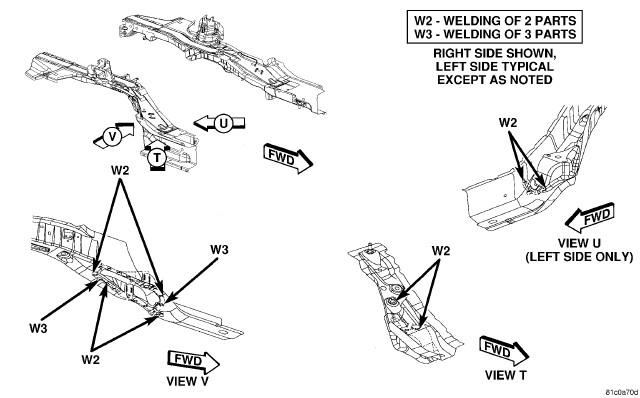

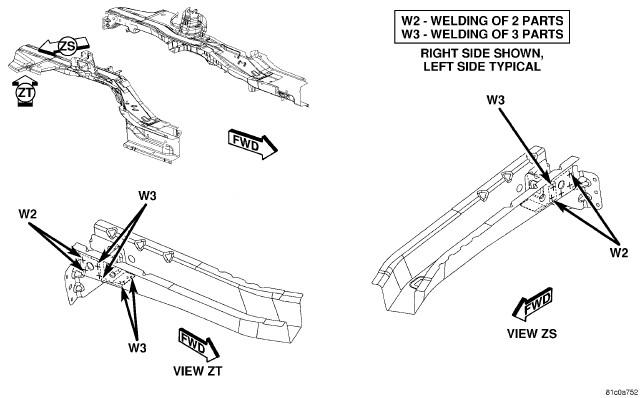

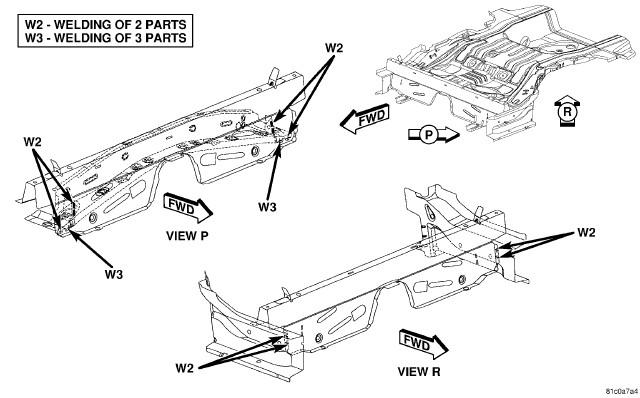

| Underbody (1 of 6) | Fig 42 |
| Underbody (2 of 6) | Fig 43 |
| Underbody (3 of 6) | Fig 44 |
| Underbody (4 of 6) | Fig 45 |
| Underbody (5 of 6) | Fig 46 |
| Underbody (6 of 6) | Fig 47 |
| Underbody Rear (1 of 7) | Fig 48 |
| Underbody Rear (2 of 7) | Fig 49 |
| Underbody Rear (3 of 7) | Fig 50 |
| Underbody Rear (4 of 7) | Fig 51 |
| Underbody Rear (5 of 7) | Fig 52 |
| Underbody Rear (6 of 7) | Fig 53 |
| Underbody Rear (7 of 7) | Fig 54 |
| Bulkhead Rear Seat (1 of 12) | Fig 55 |
| Bulkhead Rear Seat (2 of 12) | Fig 56 |
| Bulkhead Rear Seat (3 of 12) | Fig 57 |
| Bulkhead Rear Seat (4 of 12) | Fig 58 |
| Bulkhead Rear Seat (5 of 12) | Fig 59 |
| Bulkhead Rear Seat (6 of 12) | Fig 60 |
| Bulkhead Rear Seat (7 of 12) | Fig 61 |
| Bulkhead Rear Seat (8 of 12) | Fig 62 |
| Bulkhead Rear Seat (9 of 12) | Fig 63 |
| Bulkhead Rear Seat (10 of 12) | Fig 64 |
| Bulkhead Rear Seat (11 of 12) | Fig 65 |
| Bulkhead Rear Seat (12 of 12) | Fig 66 |
| Miscellaneous Body | Fig 67 |
| Rear Floor (1 of 4) | Fig 68 |
| Rear Floor (2 of 4) | Fig 69 |
| Rear Floor (3 of 4) | Fig 70 |
| Rear Floor (4 of 4) | Fig 71 |
| Rear Floor Complete (1 of 10) | Fig 72 |
| Rear Floor Complete (2 of 10) | Fig 73 |
| Rear Floor Complete (3 of 10) | Fig 74 |
| Rear Floor Complete (4 of 10) | Fig 75 |
| Rear Floor Complete (5 of 10) | Fig 76 |
| Rear Floor Complete (6 of 10) | Fig 77 |
| Rear Floor Complete (7 of 10) | Fig 78 |
| Rear Floor Complete (8 of 10) | Fig 79 |
| Rear Floor Complete (9 of 10) | Fig 80 |
| Rear Floor Complete (10 of 10) | Fig 81 |
| Sidemember Assembly (1 of 13) | Fig 82 |
| Sidemember Assembly (2 of 13) | Fig 83 |
| Sidemember Assembly (3 of 13) | Fig 84 |
| Sidemember Assembly (4 of 13) | Fig 85 |
| Sidemember Assembly (5 of 13) | Fig 86 |
| Sidemember Assembly (6 of 13) | Fig 87 |
| Sidemember Assembly (7 of 13) | Fig 88 |
| Sidemember Assembly (8 of 13) | Fig 89 |
| Sidemember Assembly (9 of 13) | Fig 90 |
| Sidemember Assembly (10 of 13) | Fig 91 |
| Sidemember Assembly (11 of 13) | Fig 92 |
| Sidemember Assembly (12 of 13) | Fig 93 |
| Sidemember Assembly (13 of 13) | Fig 94 |
| Underbody | Fig 95 |

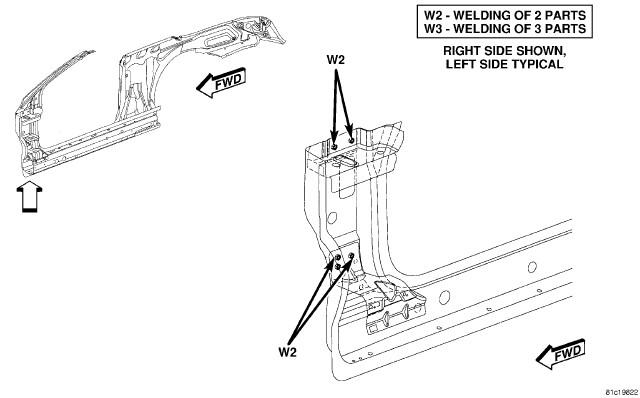

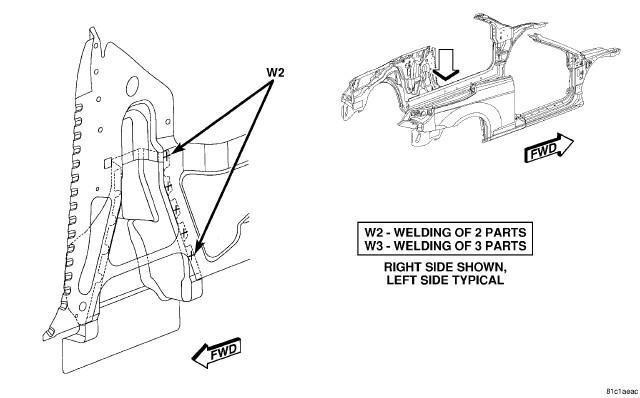

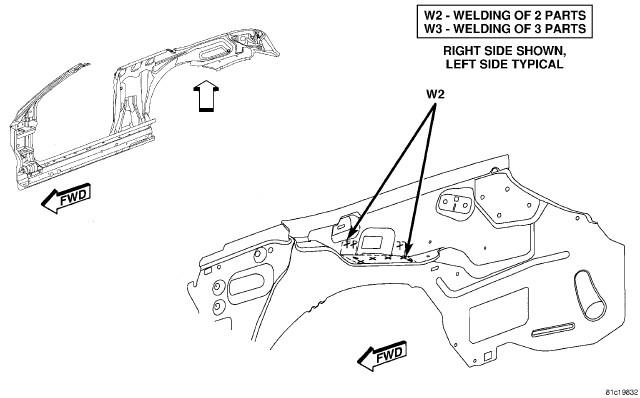

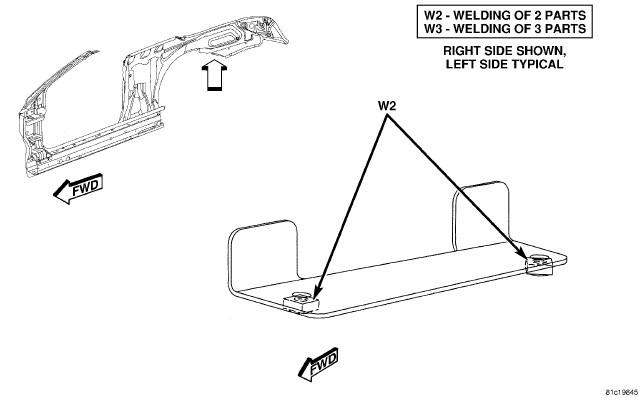

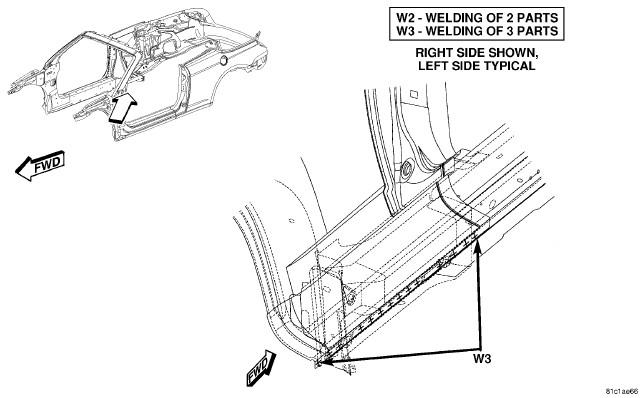

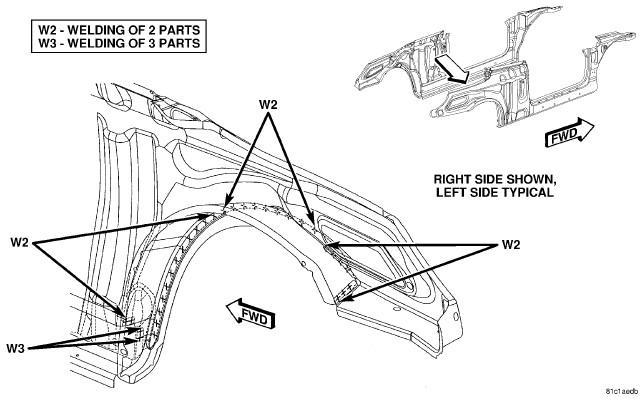

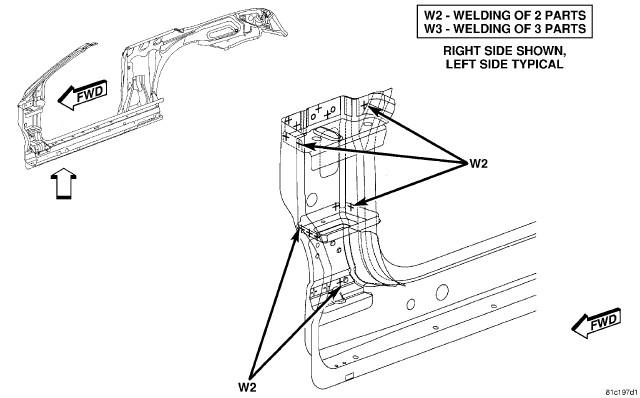

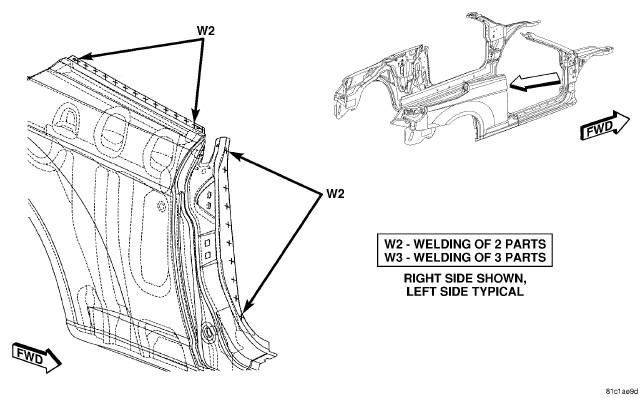

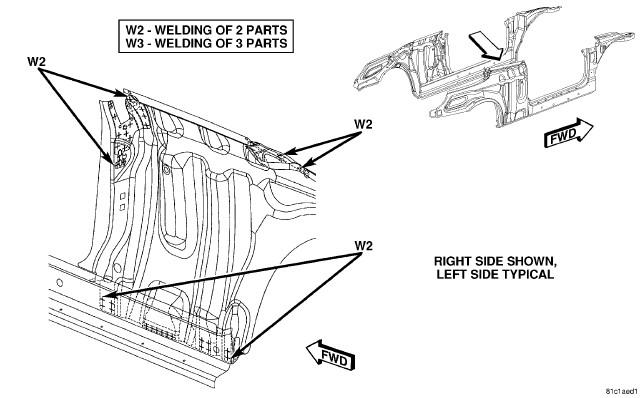

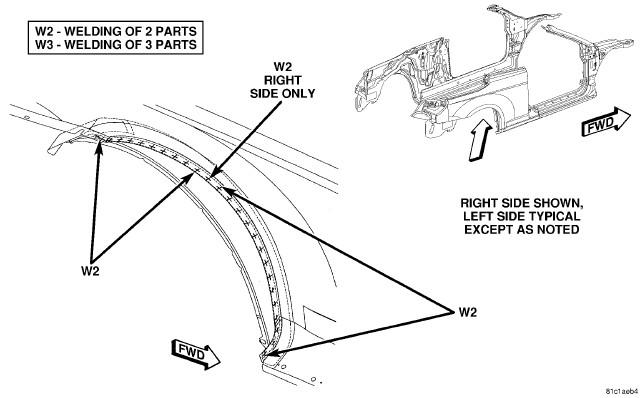

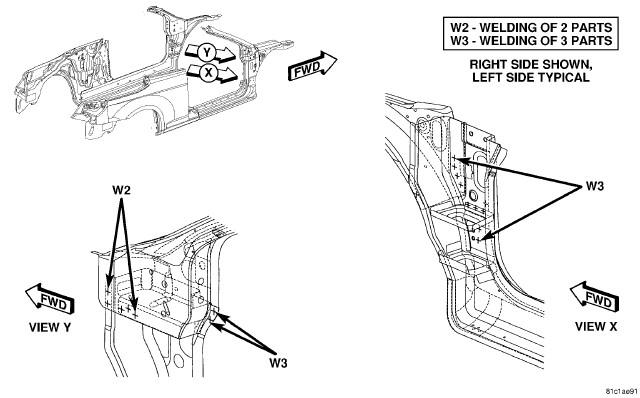

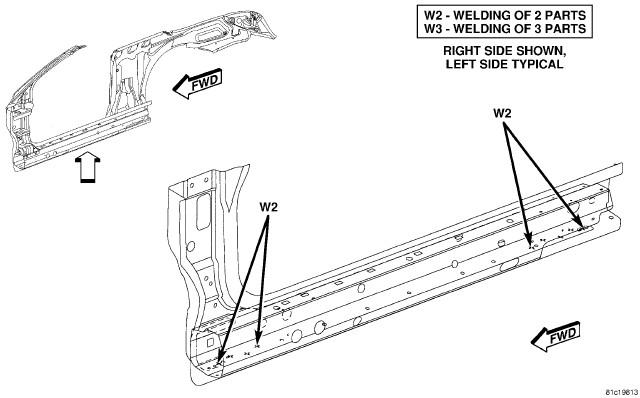

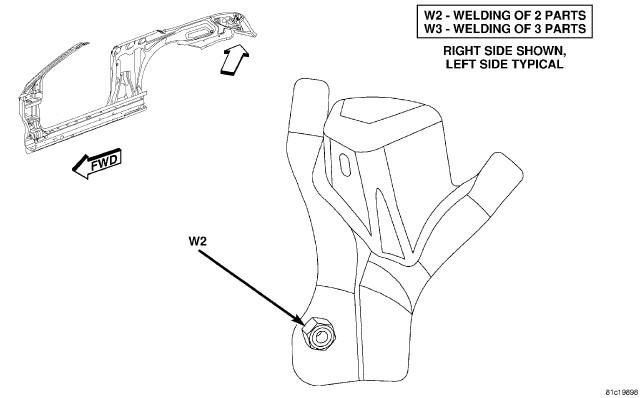

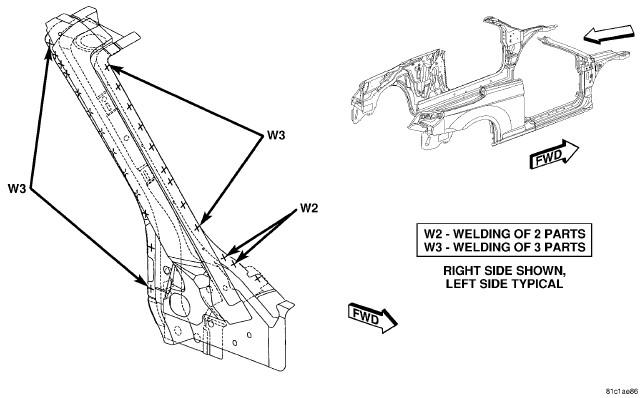

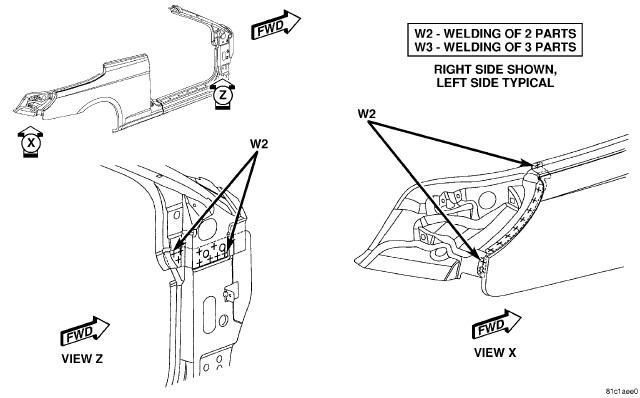

| Body Side Aperture (1 of 18) | Fig 96 |

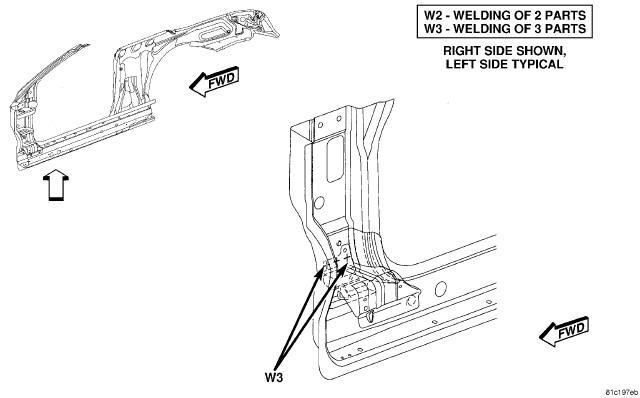

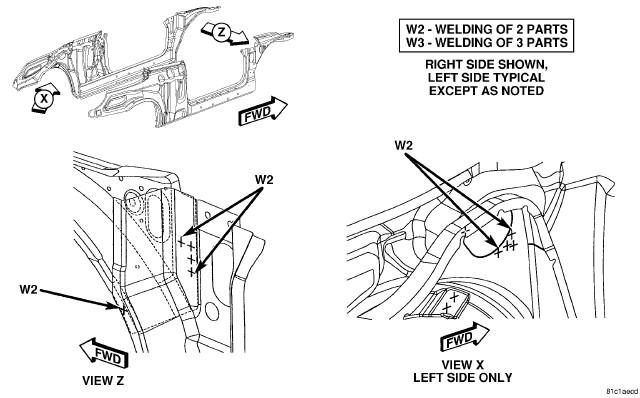

| Body Side Aperture (2 of 18) | Fig 97 |
| Body Side Aperture (3 of 18) | Fig 98 |
| Body Side Aperture (4 of 18) | Fig 99 |
| Body Side Aperture (5 of 18) | Fig 100 |
| Body Side Aperture (6 of 18) | Fig 101 |
| Body Side Aperture (7 of 18) | Fig 102 |
| Body Side Aperture (8 of 18) | Fig 103 |
| Body Side Aperture (9 of 18) | Fig 104 |
| Body Side Aperture (10 of 18) | Fig 105 |
| Body Side Aperture (11 of 18) | Fig 106 |
| Body Side Aperture (12 of 18) | Fig 107 |
| Body Side Aperture (13 of 18) | Fig 108 |
| Body Side Aperture (14 of 18) | Fig 109 |
| Body Side Aperture (15 of 18) | Fig 110 |
| Body Side Aperture (16 of 18) | Fig 111 |
| Body Side Aperture (17 of 18) | Fig 112 |
| Body Side Aperture (18 of 18) | Fig 113 |
| Rear Closure (1 of 2) | Fig 114 |
| Rear Closure (2 of 2) | Fig 115 |

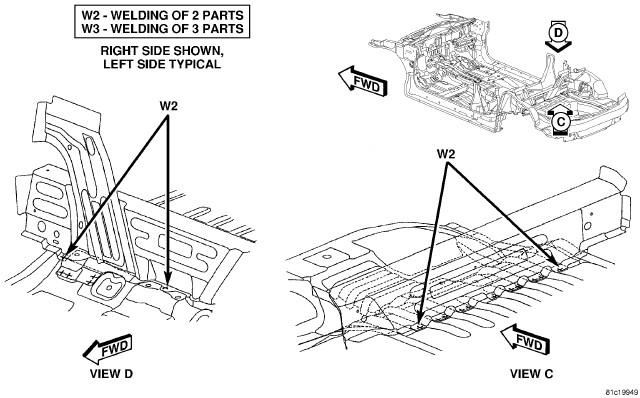

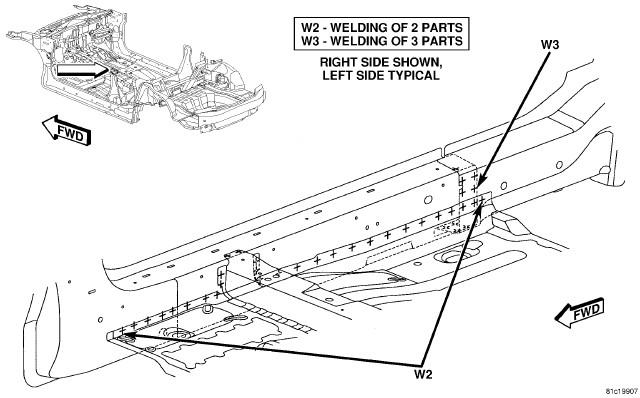

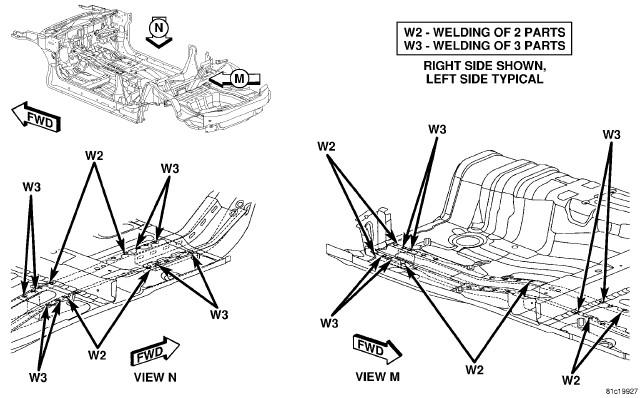

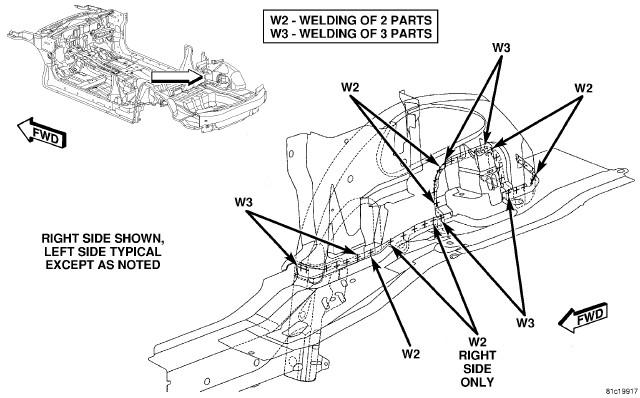

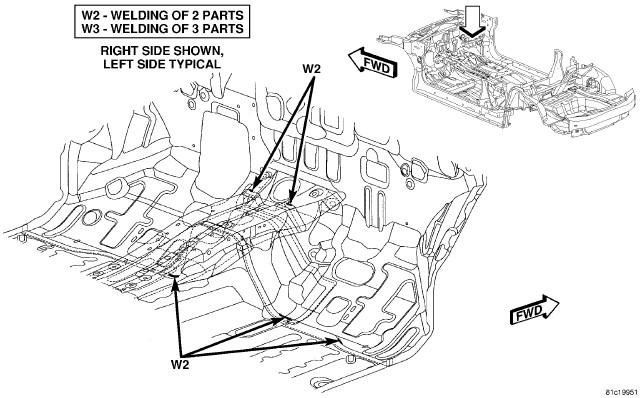

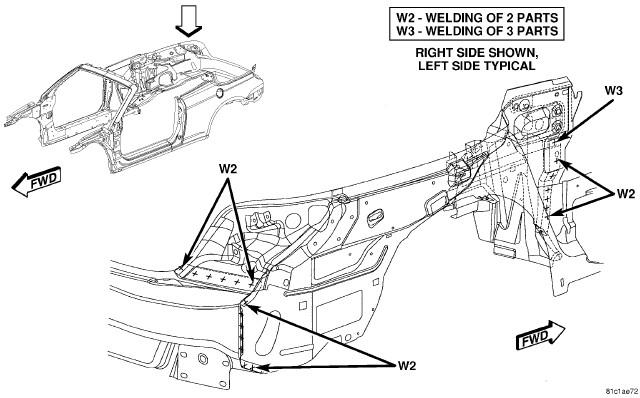

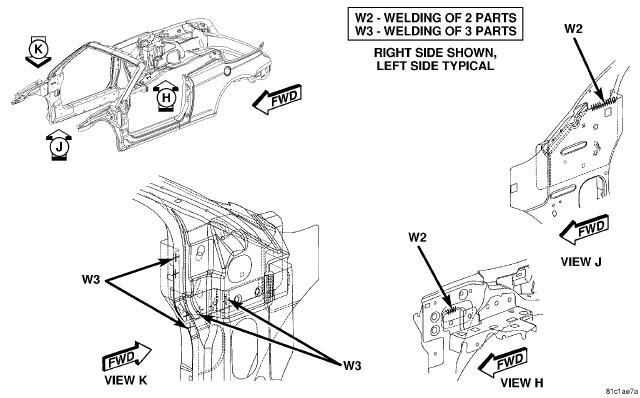

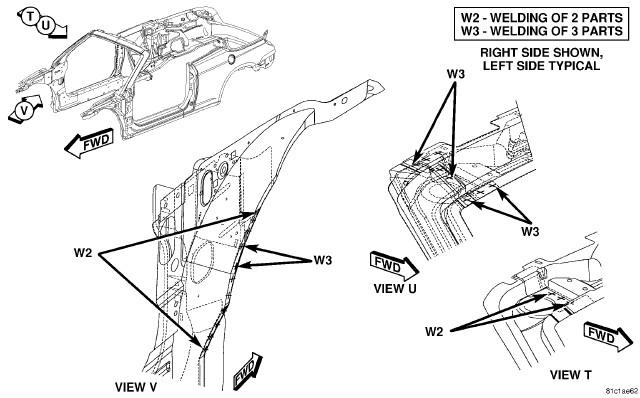

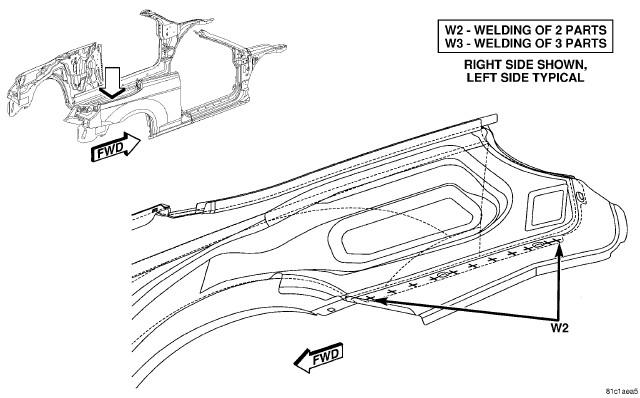

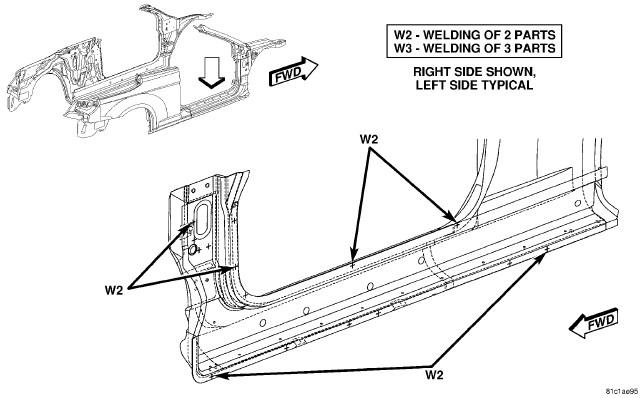

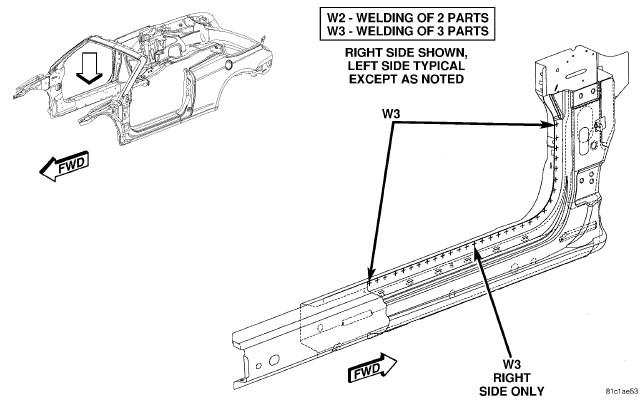

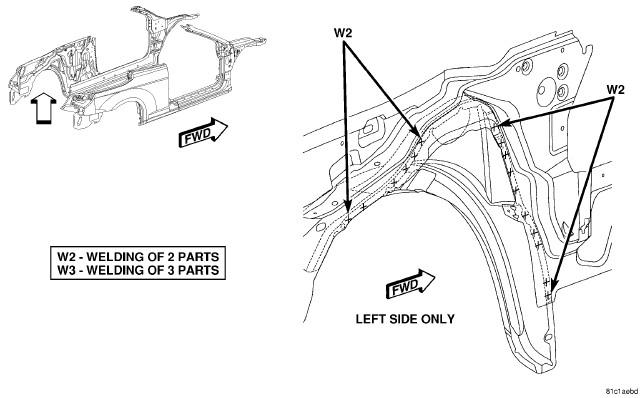

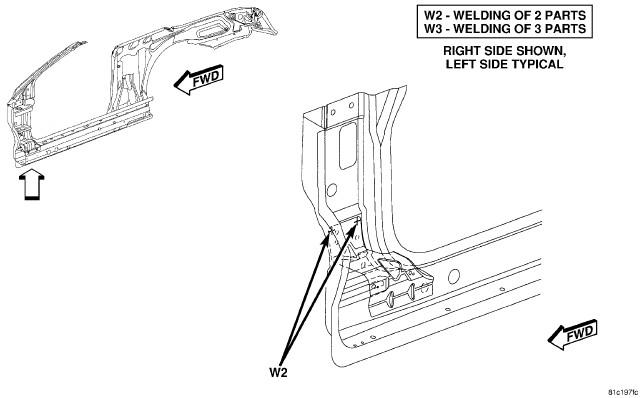

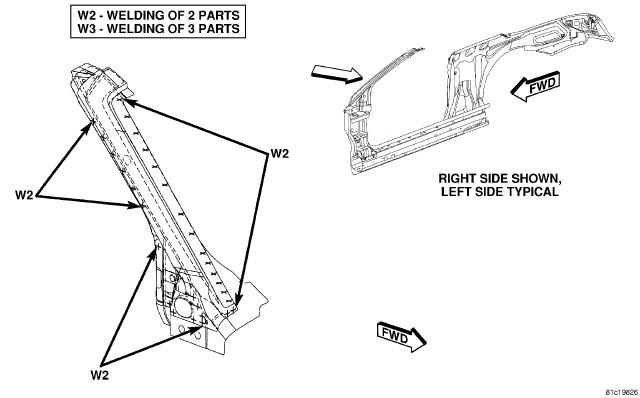

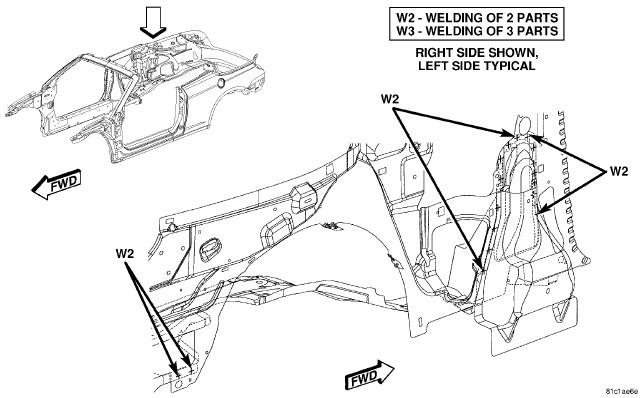

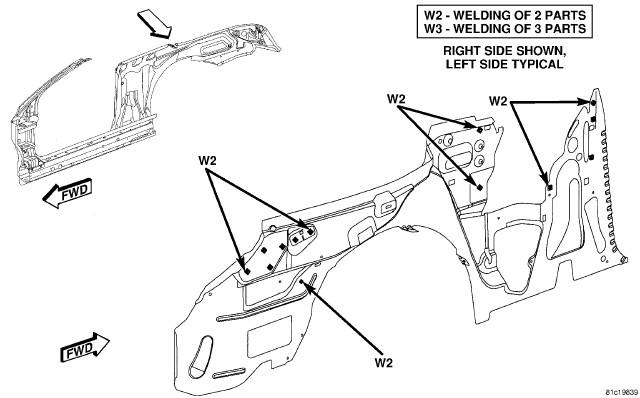

| Underbody Complete (1 of 14) | Fig 116 |
| Underbody Complete (2 of 14) | Fig 117 |
| Underbody Complete (3 of 14) | Fig 118 |
| Underbody Complete (4 of 14) | Fig 119 |
| Underbody Complete (5 of 14) | Fig 120 |
| Underbody Complete (6 of 14) | Fig 121 |
| Underbody Complete (7 of 14) | Fig 122 |
| Underbody Complete (8 of 14) | Fig 123 |
| Underbody Complete (9 of 14) | Fig 124 |
| Underbody Complete (10 of 14) | Fig 125 |
| Underbody Complete (11 of 14) | Fig 126 |
| Underbody Complete (12 of 14) | Fig 127 |
| Underbody Complete (13 of 14) | Fig 128 |
| Underbody Complete (14 of 14) | Fig 129 |
| Body In White Complete (1 of 12) | Fig 130 |
| Body In White Complete (2 of 12) | Fig 131 |
| Body In White Complete (3 of 12) | Fig 132 |
| Body In White Complete (4 of 12) | Fig 133 |
| Body In White Complete (5 of 12) | Fig 134 |
| Body In White Complete (6 of 12) | Fig 135 |
| Body In White Complete (7 of 12) | Fig 136 |
| Body In White Complete (8 of 12) | Fig 137 |
| Body In White Complete (9 of 12) | Fig 138 |
| Body In White Complete (10 of 12) | Fig 139 |
| Body In White Complete (11 of 12) | Fig 140 |
| Body In White Complete (12 of 12) | Fig 141 |
| Body Side Aperture Complete (1 of 13) | Fig 142 |
| Body Side Aperture Complete (2 of 13) | Fig 143 |
| Body Side Aperture Complete (3 of 13) | Fig 144 |
| Body Side Aperture Complete (4 of 13) | Fig 145 |
| Body Side Aperture Complete (5 of 13) | Fig 146 |
| Body Side Aperture Complete (6 of 13) | Fig 147 |
| Body Side Aperture Complete (7 of 13) | Fig 148 |
| Body Side Aperture Complete (8 of 13) | Fig 149 |
| Body Side Aperture Complete (9 of 13) | Fig 150 |
| Body Side Aperture Complete (10 of 13) | Fig 151 |
| Body Side Aperture Complete (11 of 13) | Fig 152 |
| Body Side Aperture Complete (12 of 13) | Fig 153 |
| Body Side Aperture Complete (13 of 13) | Fig 154 |
| Body Side Aperture Inner (1 of 3) | Fig 155 |
| Body Side Aperture Inner (2 of 3) | Fig 156 |
| Body Side Aperture Inner (3 of 3) | Fig 157 |
| Body Side Aperture Outer | Fig 158 |
