Structural Adhesive Locations: Specifications: Convertible

STRUCTURAL ADHESIVE LOCATION MATRIX

DESCRIPTION	FIGURE
Engine Box	Fig 1
Plenum/Cowl	Fig 2
Underbody	Fig 3
Sidemember Assembly	Fig 4
Rear Floor Complete	Fig 5
Underbody Complete (1 of 3)	Fig 6
Underbody Complete (2 of 3)	Fig 7
Underbody Complete (3 of 3)	Fig 8
Body Side Aperture (1 of 3)	Fig 9
Body Side Aperture (2 of 3)	Fig 10
Body Side Aperture (3 of 3)	Fig 11
Body Side Aperture Inner	Fig 12
Body Side Aperture Outer	Fig 13
Body Side Aperture Complete (1 of 2)	Fig 14
Body Side Aperture Complete (2 of 2)	Fig 15
Body In White Complete	Fig 16

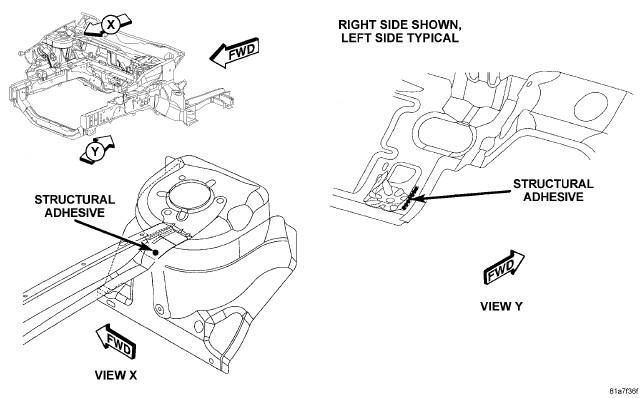

Fig 1: ENGINE BOX

Courtesy of CHRYSLER LLC

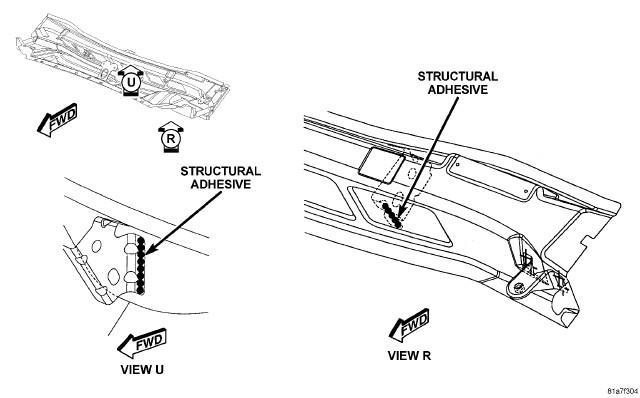

Fig 2: PLENUM/COWL

Courtesy of CHRYSLER LLC

Fig 3: UNDERBODY

Courtesy of CHRYSLER LLC

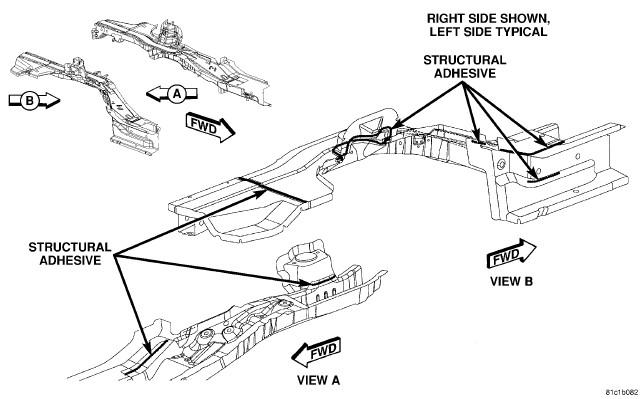

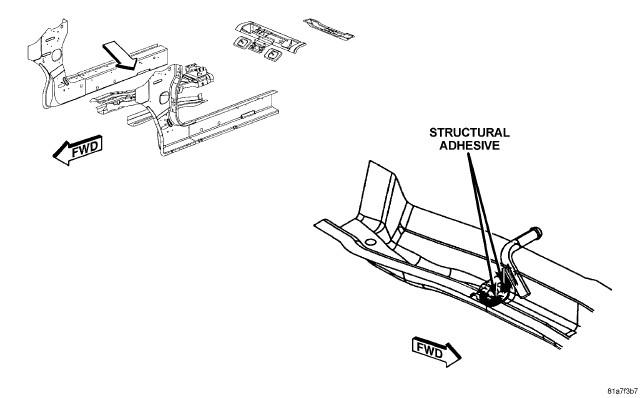

Fig 4: SIDEMEMBER ASSEMBLY

Courtesy of CHRYSLER LLC

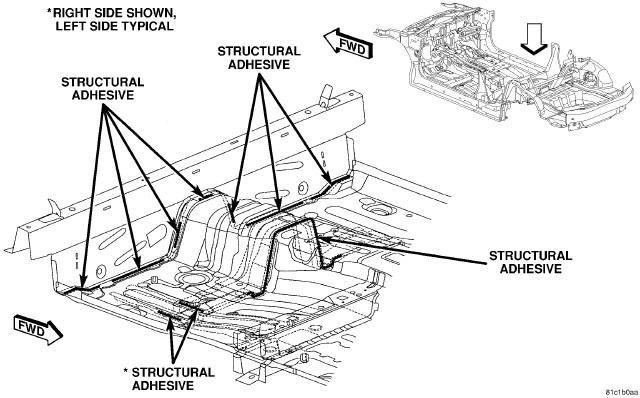

Fig 5: REAR FLOOR COMPLETE

Courtesy of CHRYSLER LLC

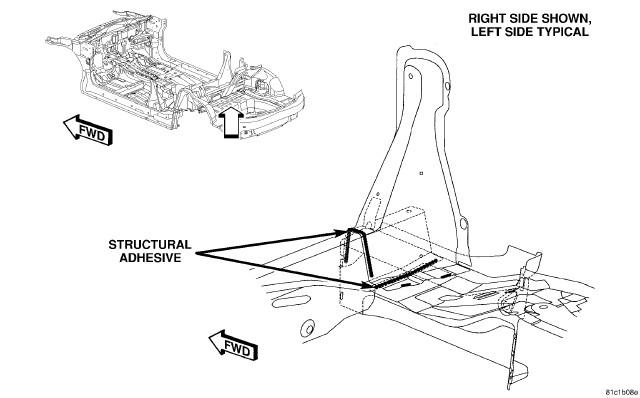

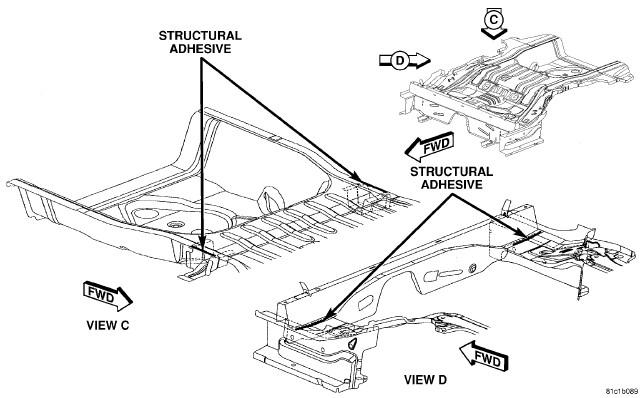

Fig 6: UNDERBODY COMPLETE (1 OF 3)

Courtesy of CHRYSLER LLC

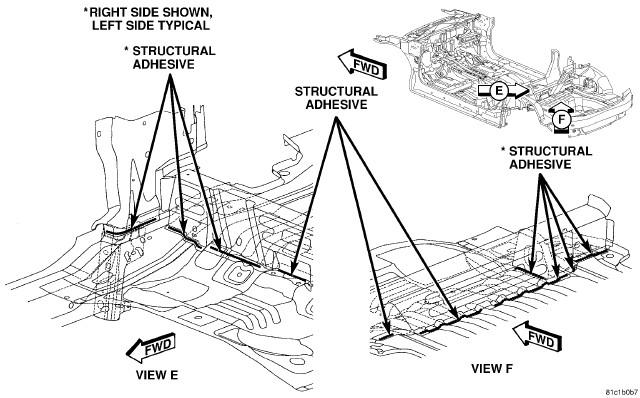

Fig 7: UNDERBODY COMPLETE (2 OF 3)

Courtesy of CHRYSLER LLC

Fig 8: UNDERBODY COMPLETE (3 OF 3)

Courtesy of CHRYSLER LLC

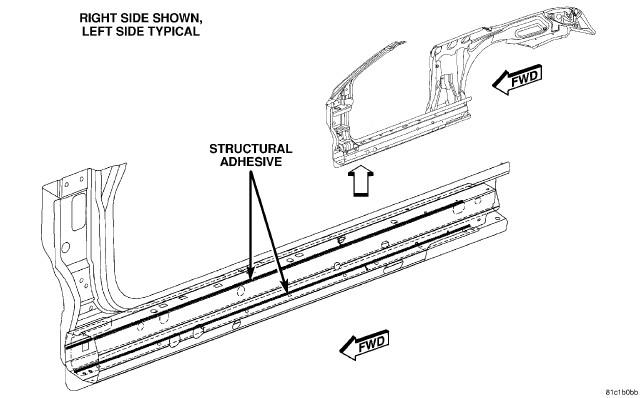

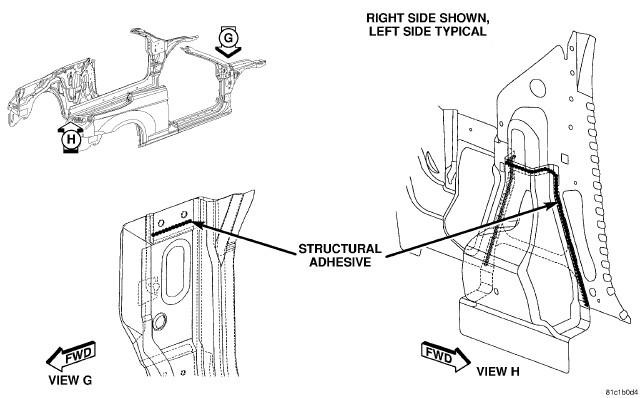

Fig 9: BODY SIDE APERTURE (1 OF 3)

Courtesy of CHRYSLER LLC

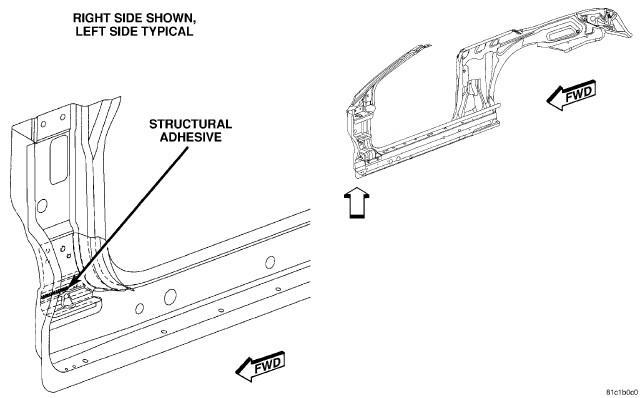

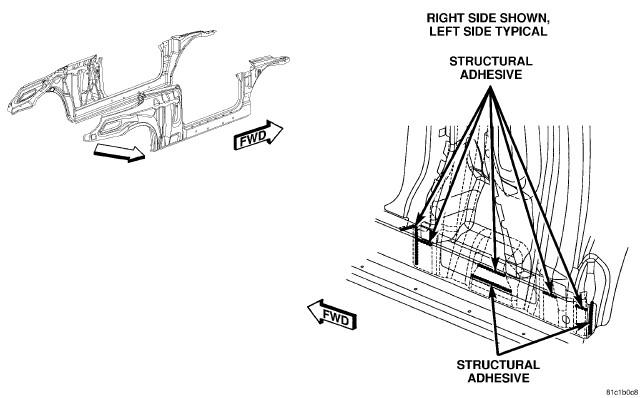

Fig 10: BODY SIDE APERTURE (2 OF 3)

Courtesy of CHRYSLER LLC

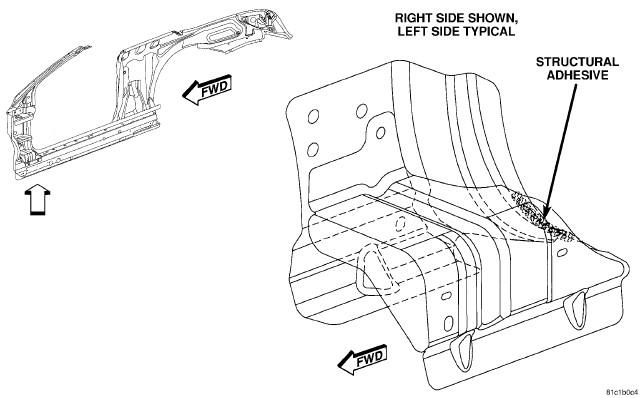

Fig 11: BODY SIDE APERTURE (3 OF 3)

Courtesy of CHRYSLER LLC

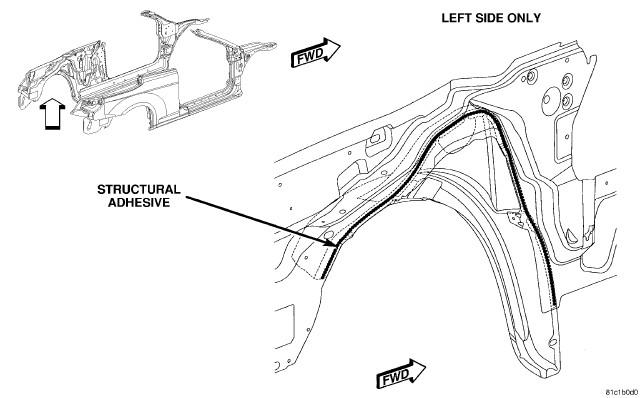

Fig 12: BODY SIDE APERTURE INNER

Courtesy of CHRYSLER LLC

Fig 13: BODY SIDE APERTURE OUTER

Courtesy of CHRYSLER LLC

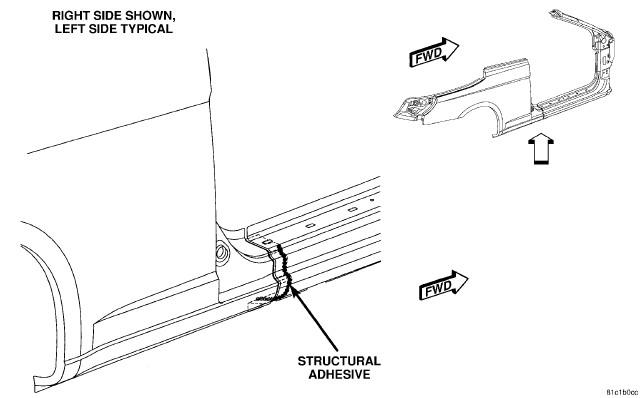

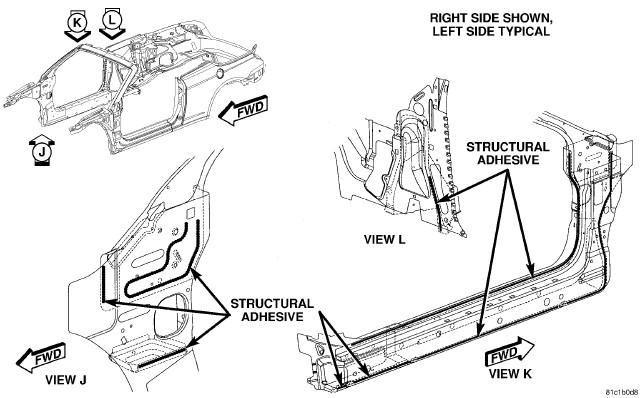

Fig 14: BODY SIDE APERTURE COMPLETE (1 OF 2)

Courtesy of CHRYSLER LLC

Fig 15: BODY SIDE APERTURE COMPLETE (2 OF 2)

Courtesy of CHRYSLER LLC

Fig 16: BODY IN WHITE COMPLETE

Courtesy of CHRYSLER LLC
