Sealer Locations - Sedan
SEALER LOCATIONS MATRIX
| DESCRIPTION | FIGURE |
|---|---|
| Plenum/Cowl | Fig 1 |
| Engine Box | Fig 2 |
| Underbody | Fig 3 |

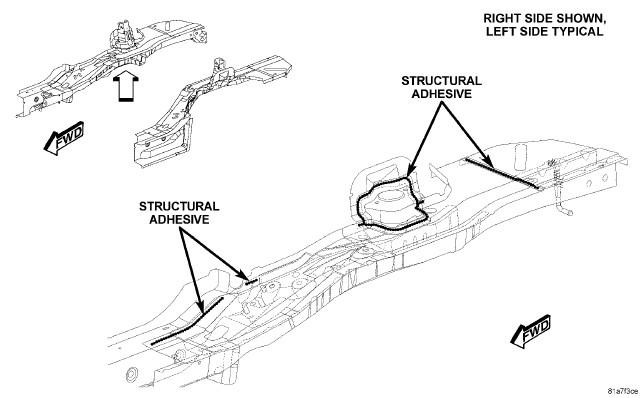

| Side-Member Assembly (1 Of 2) | Fig 4 |

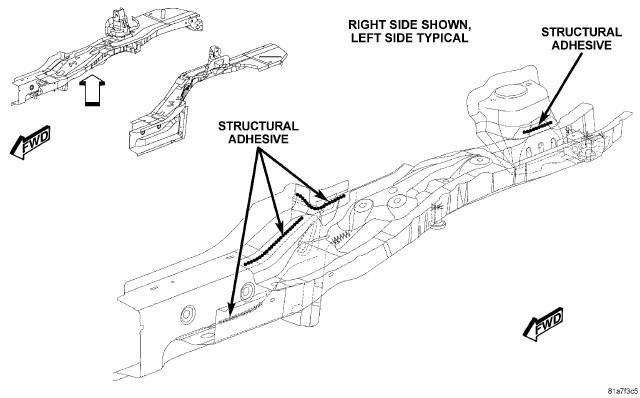

| Side-Member Assembly (2 Of 2) | Fig 5 |

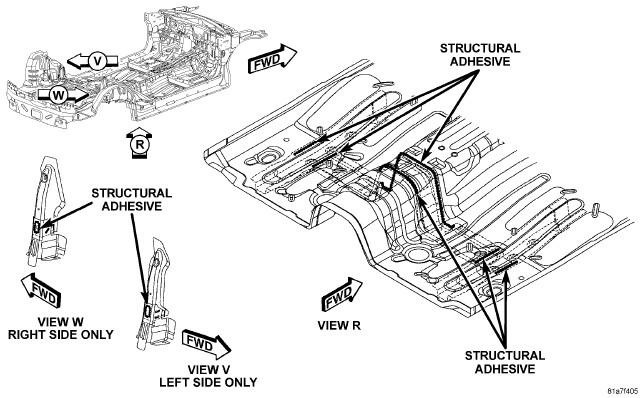

| Underbody Complete | Fig 6 |

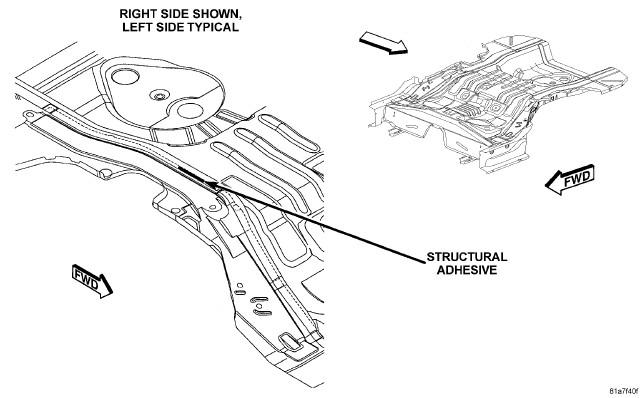

| Rear Floor Complete | Fig 7 |
| Panel Cowl Top/Cowl Sides | Fig 8 |
| Cowl Top Upper Panel | Fig 9 |
| Windshield Header/A-Pillar | Fig 10 |
| Inner Cowl Top/Dash Panel | Fig 11 |
| Steering Bracket Shaft/Dash Panel | Fig 12 |
| Dash Panel/Front Floor Pan | Fig 13 |
| Dash Panel/Cowl Side | Fig 14 |
| Floor Pan/Rear Cross-Member | Fig 15 |
| Inner Sill (1 Of 2) | Fig 16 |
| Inner Sill (2 Of 2) | Fig 17 |
| Rear Floor Pan/Inner Wheelhouse | Fig 18 |
| Rear Floor Pan/Wheelhouse/Sill | Fig 19 |
| Rear Floor Pan/Quarter Panel/Wheelhouse | Fig 20 |

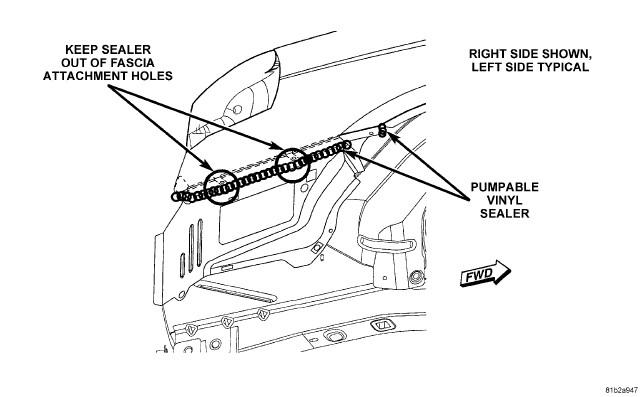

| Rear Closeout Panel/Quarter Extension | Fig 21 |
| Inner Rear Quarter/Wheelhouse (1 Of 4) | Fig 22 |
| Inner Rear Quarter/Wheelhouse (2 Of 4) | Fig 23 |
| Inner Rear Quarter/Wheelhouse (3 Of 4) | Fig 24 |
| Inner Rear Quarter/Wheelhouse (4 Of 4) | Fig 25 |
| Body Side Aperture Quarter Extension Panel | Fig 26 |

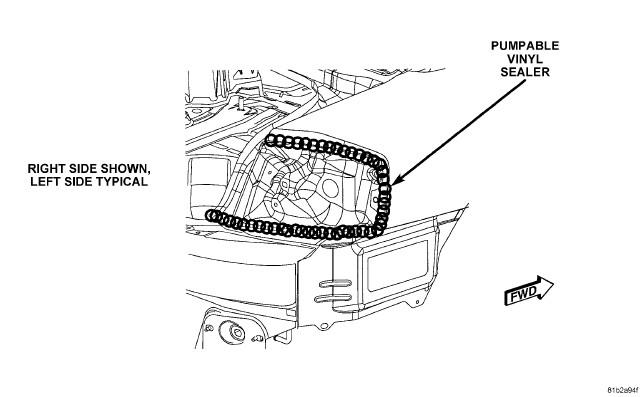

| Body Side Aperture Tail Lamp Opening | Fig 27 |
| Body Side Aperture Trough Outer Panel | Fig 28 |
