ASSEMBLY, Transmission Solenoid and Pressure Switch: Installation: Installation

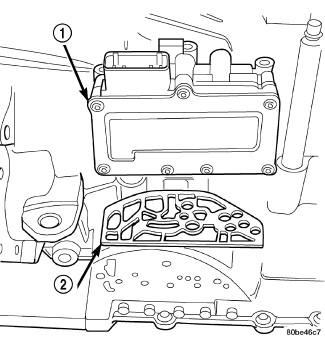

Fig 1: Solenoid/Pressure Switch Assembly and Gasket

Courtesy of CHRYSLER LLC

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

2 - GASKET

Install solenoid/pressure switch assembly (1) to case using a new gasket (2) .

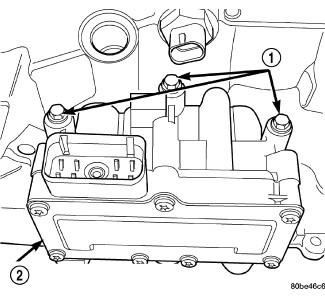

Fig 2: Attaching Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS

2 - SOLENOID AND PRESSURE SWITCH ASSEMBLY
Install bolts and torque to 13 N.m (110 in. lbs.) .
Install 8-way connector and torque screw to 4 N.m (35 in. lbs.).
Uncap and install transmission oil cooler lines.

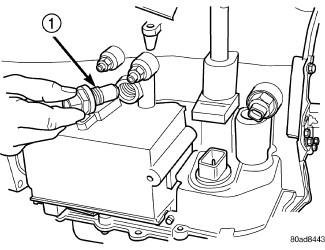

Fig 3: Input Speed Sensor
Courtesy of CHRYSLER LLC

1 - INPUT (TURBINE) SPEED SENSOR
Install input speed sensor (1) and torque to 27 N.m (20 ft. lbs.).

Fig 4: Battery Tray Removal/Installation
Courtesy of CHRYSLER LLC
Install the battery tray (1) .

Fig 5: Battery Removal/Installation
Courtesy of CHRYSLER LLC

1 - BATTERY
Install the battery (1) and hold down clamp.

Fig 6: Air Cleaner Assembly Removal/Installation
Courtesy of CHRYSLER LLC

1 - AIR CLEANER ASSEMBLY
Install air cleaner assembly (1) .
Connect battery cables.
Perform Transaxle Quick Learn Procedure.
