Diagnostic Test

CHECK FOR ACTIVE DTC B2338-HORN CONTROL CIRCUIT OPEN
1. Turn the ignition on.
2. With the scan tool, record and erase DTC's
3. Operate the horn switch several times.
4. With the scan tool, read DTC's.
  Does the scan tool display active DTC B2338-HORN CONTROL CIRCUIT OPEN?

  Yes
  - Go to step 2
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
VISUAL AND PHYSICAL CONNECTOR AND TERMINAL INSPECTION
1. Turn the ignition off.
2. Inspect the following connector terminal condition. Check for signs of corrosion build up or damage that would compromise the terminal to controller pin connector.
  NOTE: Make sure that all in-line connectors are inspected for corrosion and/or damage.
3. Disconnect the horn connectors.
4. Disconnect the C11 TIPM harness connector.
5. Visually inspect the wiring harness. Look for any chafed, pierced, pinched or partially broken wires hidden in the wire insulation.
  Were any of the above conditions found?

  Yes
  - Repair or replace as necessary.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 3
(X21)/(X22) HORN CONTROL OUTPUT CIRCUIT OPEN

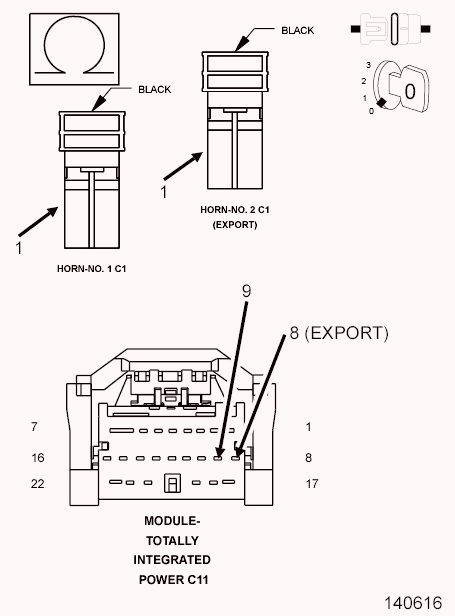

Fig 1: Checking Horn Control Output Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off
1. Measure the resistance of the (X21)/(X22) Horn Control Output circuit between the C11 TIPM harness connector and the Horn C1 connector(s).
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 4
  No
  - Repair the (X21)/(X22) Horn Control Output circuit for an open.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECKING THE HORN AND (Z904) GROUND CIRCUIT
1. Turn the ignition off.
2. Disconnect the Horn(s) C1 connector(s) if not disconnected.
3. Momentarily jumper 12-volts to the horn(s).
  Did the horn(s) operate properly?

  Yes
  - Go to step 6
  No
  - Go to step 5
(Z904) GROUND CIRCUIT OPEN

Fig 2: Checking Horn Ground Circuit
Courtesy of CHRYSLER LLC
1. Disconnect the Horn(s) C2 connector(s).
2. Using a 12-volt test light connected to 12-volts, probe the (Z904) ground circuit at the C2 connector(s).
  Does the test light illuminate brightly?

  Yes
  - Replace the Horn(s) as necessary.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Repair the (Z904) Ground circuit for an open.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
TOTALLY INTEGRATED POWER MODULE
NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
1. Using the schematics as a guide, inspect the wire harness and connectors.
2. Pay particular attention to all Power and Ground circuits.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Totally Integrated Power Module in accordance with the Service Information.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
