Diagnostic Test

CHECK FOR ACTIVE DTC
1. With the scan tool, read the active DTC's.
2. Cycle the ignition switch from off to on, leaving the ignition off for a minimum of 30 seconds.
3. With the scan tool, read the active DTC's.
  Does the scan tool display this DTC as active?

  Yes
  - Go to step 2
  No
  - If the DTC is stored, check for an intermittent condition. Using the wiring diagram/schematic as a guide, visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECK FOR ACTIVE DTC B2122-IGNITION RUN CONTROL 1 CIRCUIT LOW WITH THE OCCUPANT RESTRAINT CONTROLLER MODULE DISCONNECTED

Fig 1: Checking Ignition Run Control 1 Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Occupant Restraint Controller Module C2 harness connector.
3. Turn the ignition off, wait 30 seconds, and turn the ignition on.
4. With the scan tool, erase TIPM DTCs.
5. Turn the ignition off, wait 30 seconds, and turn the ignition on.
6. With the scan tool, read TIPM DTCs.
  Does the scan tool display active: B2122-IGNITION RUN CONTROL 1 CIRCUIT LOW?

  Yes
  - Go to step 3
  No
  - Replace the Occupant Restraint Controller Module in accordance with the service information.
  - Perform ORC VERIFICATION TEST. Refer to DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK THE (F100) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT FOR A SHORT TO GROUND

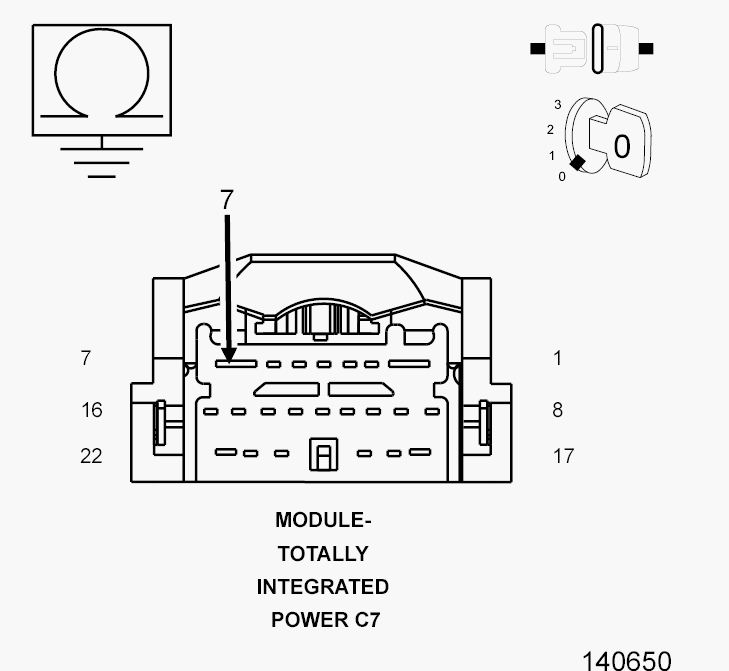

Fig 2: Checking Fused Ignition Switch Output (Run) Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C7 harness connector.
3. Measure the resistance between ground and the (F100) Fused Ignition Switch Output (RUN) circuit.
  Is the resistance below 10K ohms?

  Yes
  - Repair the (F100) Fused Ignition Switch Output (RUN) circuit for a short to ground.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the TIPM in accordance with the service information.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
