Diagnostic Test
- CHECK FOR AN ACTIVE OR STORED DTC B10E9 BLOWER MOTOR CONTROL CIRCUIT LOW IN THE TIPM
- Turn the ignition on.
- With the scan tool, read TIPM DTCs.
Does the scan tool display active or stored DTC B10E9 BLOWER MOTOR CONTROL CIRCUIT LOW?
Yes
- Diagnose and repair affected DTC(s).
No
- Go to step 2

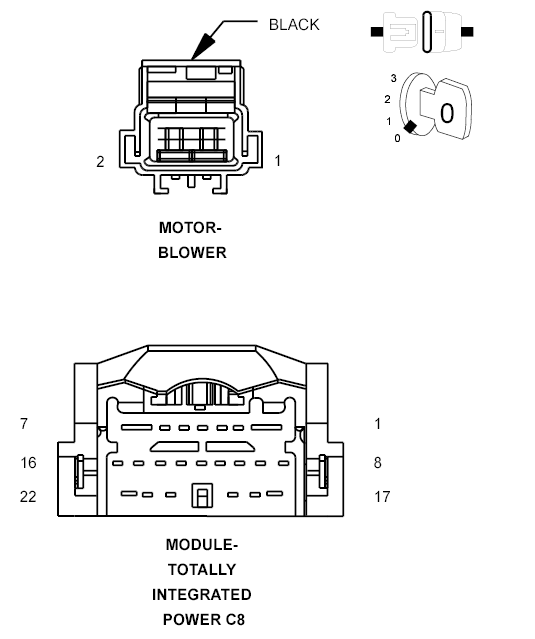

- INSPECT THE TIPM AND BLOWER MOTOR CONNECTOR TERMINALS AND WIRE HARNESS FOR A CONDITION CAUSING HIGH CIRCUIT RESISTANCE
- Turn the ignition off.
- Disconnect the TIPM C8 harness connector.
- Disconnect the Blower Motor harness connector.
- Inspect the connector terminals for signs of corrosion build up and damage.
- Visually inspect the wiring harness for any chafed, pierced, pinched or partially broken wires hidden in the wire insulation.
Were any of the above conditions found?
Yes
- Repair as necessary.
- Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
No
- Go to step 3
- CHECK THE (C7) BLOWER MOTOR CONTROL CIRCUIT FUNCTION

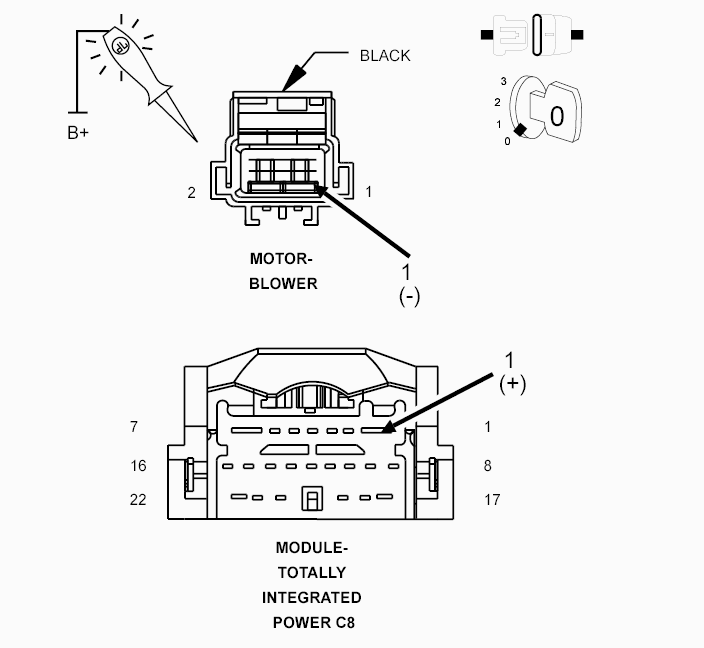

- Connect one end of a jumper wire to the (C7) Blower Motor Control circuit in the Blower Motor harness connector and connect the other end of the jumper wire to a clean chassis ground.NOTE: The test light should be illuminated and bright. Compared the brightness to that of a direct connection to the battery.
- Using a 12-volt test light connected to 12 volts, probe the (C7) Blower Motor Control Output circuit in the TIPM C8 harness connector.
Does the test light illuminate brightly?
Yes
- Go to step 4
No
- Repair the (C7) Blower Motor Control circuit for high resistance.
- Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
- Connect one end of a jumper wire to the (C7) Blower Motor Control circuit in the Blower Motor harness connector and connect the other end of the jumper wire to a clean chassis ground.
- CHECK (C70) BLOWER MOTOR HIGH SPEED CIRCUIT AND (Z906) GROUND CIRCUIT FUNCTION
- Remove the jumper from the Blower Motor harness connector.
- Turn the blower control on.NOTE: The test light should be illuminated and bright. Compared the brightness to that of a direct connection to the battery.
- Using a 12-volt test light connected to 12 volts, probe the (C70) Blower Motor High Speed circuit in the Blower Motor harness connector.
Does the test light illuminate brightly?
Yes
- Go to step 5
No
- Repair the (C70) Blower Motor High Speed circuit / (Z906) Ground circuit for high resistance.
- Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
- CHECK THE OUTPUT FROM THE TIPM ON THE (C7) BLOWER MOTOR CONTROL CIRCUIT
- Reconnect the TIPM C8 harness connector.
- Turn the ignition on.
- With the scan tool in TIPM, select Actuators, and actuate the Blower Motor.
- Using the 12-volt test light connected to ground, probe the (C7) Blower Motor Control circuit in the Blower Motor harness connector.
Does the test light illuminate brightly?
Yes
- Go to step 6
No
- Replace the TIPM in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
- CHECK FOR A BLOCKAGE STALLING THE BLOWER MOTOR
- Turn the ignition off.
- Remove the blower motor from the HVAC housing assembly.
- Look for anything on the blower motor and in the HVAC housing that is physically preventing blower motor operation.
Is anything physically preventing blower operation?
Yes
- Repair as necessary. Also, check blower motor for proper operation. Reinstall or replace the blower motor as necessary in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
No
- Replace the blower motor in accordance with the Service Information.
- Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
