Gas Engines
Courtesy of CHRYSLER LLC

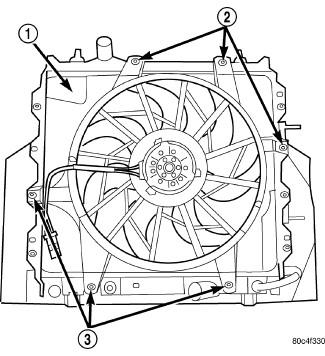

| 1 - RADIATOR FAN SHROUD |
| 2 - SCREWS |
| 3 - SCREWS |
The radiator cooling fan is a dual-speed electric motor driven fan. The radiator fan assembly includes an electric motor, fan blade, and a support shroud (1) that is attached to the radiator. The radiator fan is serviced as an assembly.
