Non - Turbo

Fig 1: Overflow Hose Routing
GC0114193Courtesy of CHRYSLER LLC
1 - PRESSURE CAP
2 - OVERFLOW HOSE
3 - COOLANT RECOVERY CONTAINER
  1. Disconnect overflow hose (2) from coolant outlet connector.
  2. Remove vent hose clip from stud on dash panel.
  3. Disconnect the MAP sensor connector.

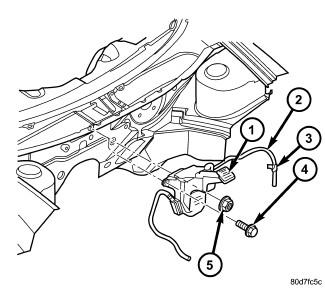

    Fig 2: Coolant Recovery Container
    GC0114194Courtesy of CHRYSLER LLC
    1 - COOLANT RECOVERY CONTAINER
    2 - VENT HOSE
    3 - CLIP
    4 - SCREW
    5 - NUT
  4. Remove fasteners securing power steering fluid reservoir bracket to engine. Reposition reservoir.
  5. Remove coolant recovery container (1) attaching fasteners.
  6. Remove coolant recovery container.
