2.0L/2.4L Engine

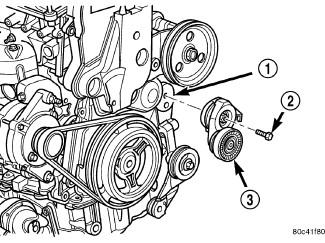

Fig 1: Automatic Belt Tensioner
GC0114190Courtesy of CHRYSLER LLC
1 - TORQUE STRUT BRACKET
2 - BOLT
3 - AUTOMATIC BELT TENSIONER ASSEMBLY
  1. Remove power steering/air conditioning compressor belt. See Cooling/Accessory Drive/BELT, Serpentine - Removal .
  2. Remove tensioner mounting bolt (2) and remove tensioner assembly (3).
  3. Remove tensioner pulley, if replacing the pulley.
