Generator Belt

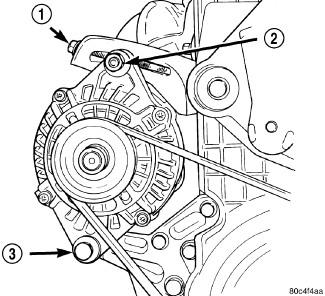

Fig 1: Generator Belt
GC0114185Courtesy of CHRYSLER LLC
1 - ADJUSTING BOLT
2 - LOCKING NUT
3 - PIVOT BOLT
  1. Remove power steering pump/air conditioning compressor drive belt.
  2. Loosen pivot bolt (3), then locking nut (2) and adjusting bolt (1).
  3. Remove generator belt.
