2.2L Diesel

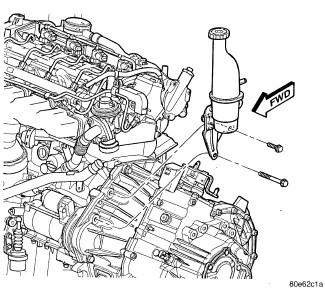

Fig 1: Power Steering Fluid Reservoir Mounting

Courtesy of CHRYSLER LLC

Attach the reservoir to the vehicle using two mounting bolts. Tighten the mounting bolts to 54 N.m (40 ft. lbs.).

Fig 2: Hoses At Pump And Reservoir

Courtesy of CHRYSLER LLC

1 - FLUID RESERVOIR

2 - SUPPLY HOSE

3 - PRESSURE HOSE

Slide the supply hose (2) onto the reservoir fitting. Expand the hose clamp and slide it over the hose on the reservoir fitting. Secure the clamp once it is past the bead formed into the fluid reservoir fitting.

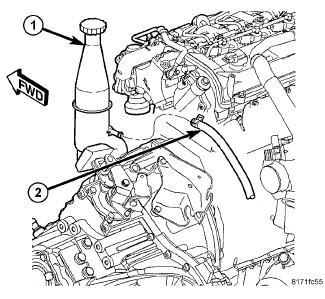

Fig 3: Return Hose Mounting
Courtesy of CHRYSLER LLC
Slide the return hose (2) onto the reservoir fitting. Expand the hose clamp and slide it over the hose on the reservoir fitting. Secure the clamp once it is past the bead formed into the fluid reservoir fitting.
Install the engine air cleaner. Refer to Engine/Air Intake System/BODY, Air Cleaner - Installation
Install the engine top appearance cover.
Fill fluid reservoir to proper level. See Steering/Pump/FLUID - Standard Procedure
Start engine and let run for a few seconds, then turn engine off.
Add fluid if necessary.
Install reservoir filler cap.
