- Remove power steering pump from engine. See Steering/Pump - Removal
CAUTION:
Do not hammer on power steering pump pulley or shaft to remove power steering pump pulley. Damage to pulley and power steering pump will occur.
CAUTION:
It is very important to use Puller 9962, to remove pulley from power steering pump shaft. Use of other pullers can damage or break pulley and pump shaft.
Courtesy of CHRYSLER LLC

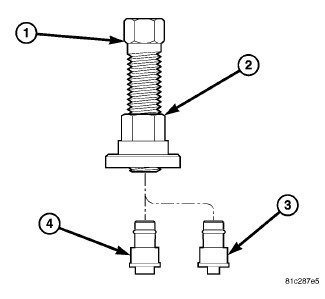

- Coat Screw-Drive (1) with lubricant and thread into Puller Body (2).
NOTE:
Two Buttons come with Puller kit (9962-3 and 9962-4). Be sure to use Button that best fits end of pump shaft to avoid damage to Button or pump shaft.
- Insert Button (4), Special Tool 9962-4, into end of Screw-Drive. Be sure not to misplace ball bearing that resides behind Button.
Courtesy of CHRYSLER LLC

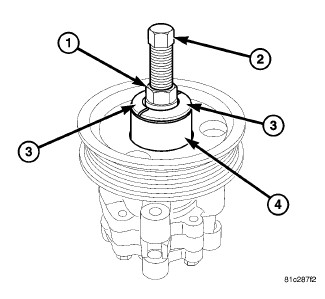

- Assemble Puller, Special Tool 9962, over end of pump shaft and pulley hub.
- Place Button on end of Screw-Drive against pump shaft.
- Assemble Collets (3), Special Tool 9962-2, surrounding Puller Body (1) and pulley hub flange, then slide the Collet Sleeve over the Collets.
- Hand tighten Screw-Drive (2) taking up any slack in Puller.
- Hold Puller Body stationary while turning Screw-Drive until pulley is removed from power steering pump shaft.
NOTE:
Inspect pulley. Replace if pulley is bent, cracked, or loose.
