Pulley, Power Steering Pump: Installation: Diesel

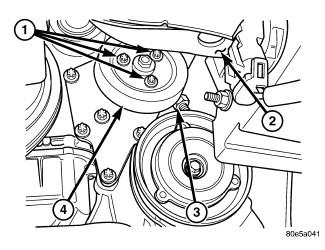

Fig 1: Pump Pulley Mounting

Courtesy of CHRYSLER LLC

1 - PULLEY MOUNTING BOLTS

2 - RIGHT FRAME RAIL

3 - PRESSURE HOSE FITTING

4 - PULLEY

1. Install the pump drive pulley (4). Install and tighten the three mounting bolts (1) to 28 N.m (21 ft. lbs.).
2. Install accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation

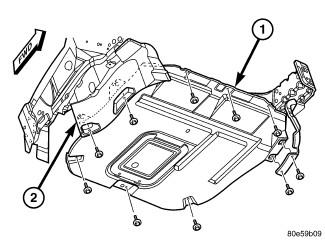

   Fig 2: Engine Compartment Lower Silencer

   Courtesy of CHRYSLER LLC

   1 - ENGINE COMPARTMENT SILENCER

   2 - ACCESSORY DRIVE BELT SPLASH SHIELD

3. Install the lower engine compartment silencer assembly (1) and the drive belt splash shield (2).
4. Lower the vehicle.
