2.2L Diesel

Slide hose clamps onto both ends of the power steering fluid supply hose far enough to clear the fittings on the reservoir and pump once hose is installed.

Fig 1: Hoses At Pump And Reservoir

Courtesy of CHRYSLER LLC

1 - FLUID RESERVOIR

2 - SUPPLY HOSE

3 - PRESSURE HOSE

Install the power steering supply hose (2) into the engine compartment. First, route the pump end of the hose down to the pump, then place the reservoir end of the hose onto the fitting of the power steering fluid reservoir (1).
Expand the hose clamp at the fluid reservoir end and slide it over the hose and fitting. Secure the clamp once it is past the bead formed into the fluid reservoir fitting.
Place the pump end of the supply hose (2) onto the pump supply fitting. Expand the hose clamp and slide it over the hose and pump supply fitting. Secure the clamp once it is past the bead formed into the fluid supply fitting.
Install radiator fan. Refer to Cooling/Engine/FAN, Cooling - Installation

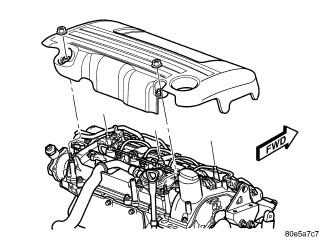

Fig 2: Engine Top Cover Mounting
Courtesy of CHRYSLER LLC
Install the engine top appearance cover.
Fill and bleed the power steering system. See Steering - Standard Procedure
Check for leaks at all hose connections.
