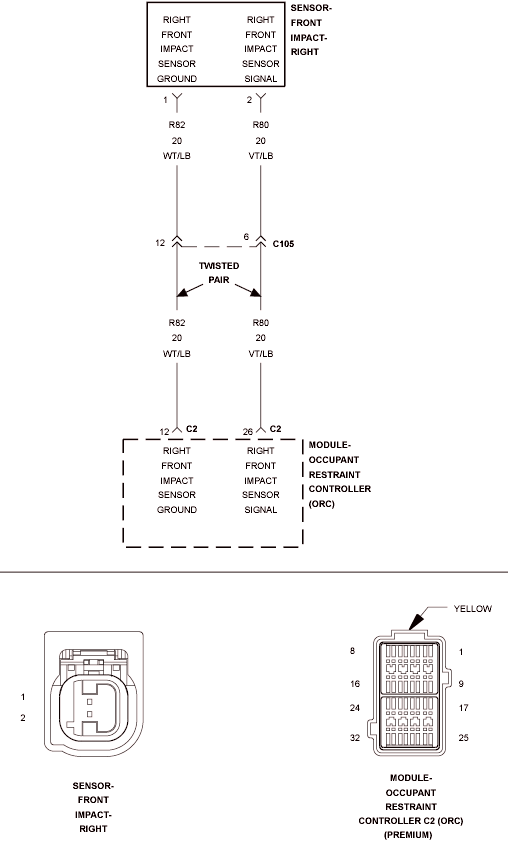

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis >> Restraints >> Seat Belts >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> B1B71-Up-Front Right Satellite Acceleration Sensor Internal >> Circuit Schematic
