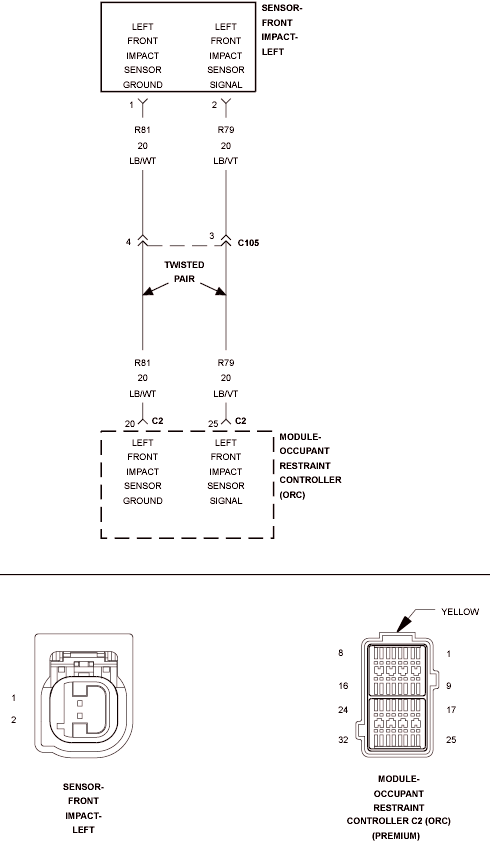

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis >> Restraints >> Seat Belts >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> B1B70-Up-Front Left Satellite Acceleration Sensor Internal >> Circuit Schematic
