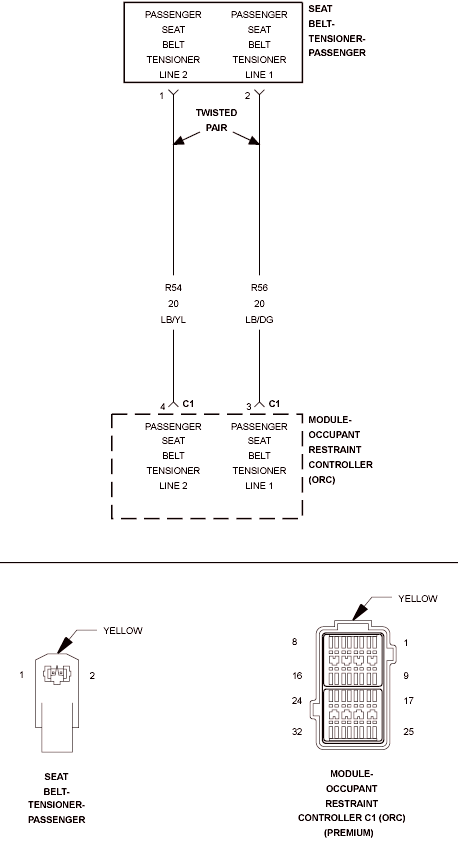

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis >> Restraints >> Seat Belts >> Air Bag Restraint System - Electrical Diagnostics >> DTC Troubleshooting >> B1B2E-1ST Row Passenger Seat Belt PRETENSIONER Circuit Open >> Circuit Schematic
