Diagnostic Test

DETERMINE ACTIVE OR STORED DTC
NOTE: Ensure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443A, and DVOM are required to perform the following test.
1. Turn the ignition on.
  Select ACTIVE or STORED DTC:

  ACTIVE DTC
  - Go to step 2
  STORED DTC
  - Go to step 1
CHECK FOR OPEN SQUIB CIRCUITS IN RIGHT SEAT AIRBAG

Fig 1: Checking For Shorted Squib Circuits In Right Seat Airbag
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the Right Seat Airbag connector.
  WARNING: To avoid serious or fatal injury, do not place an intact uncoupled Seat Airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed.

  NOTE: Check connectors - Clean and repair as necessary.
2. Connect the 8443A Load Tool and appropriate Jumper to the Right Seat Airbag connector.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery. Wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
3. With the scan tool, read the active ORC DTCs.
  Does the scan tool display: BIB22-RIGHT SIDE CURTAIN SQUIB 1 CIRCUIT OPEN?

  Yes
  - Go to step 3
  No
  - Replace the Right Seat Airbag in accordance with the Service Information.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R4) RIGHT SEAT SQUIB 1 LINE 1 CIRCUIT FOR AN OPEN

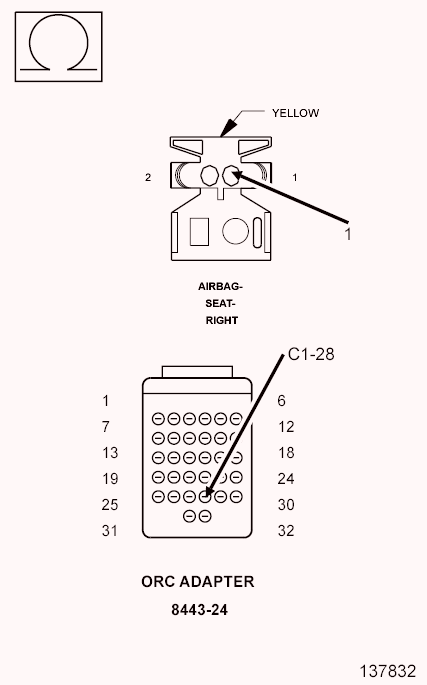

Fig 2: Checking Right Seat Squib 1 Line 1 Circuit For An Open
Courtesy of CHRYSLER LLC

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
1. Disconnect the 8443A Load Tool and Jumper from the Right Seat Airbag connector.
2. Disconnect the ORC connectors.
  NOTE: Check connectors - Clean and repair as necessary.
3. Connect the 8443A Load Tool ORC Adaptor to the ORC C1 connector.
4. Measure the resistance of the (R4) Right Seat Squib 1 Line 2 circuit between the Right Seat Airbag connector and the 8443A ORC Adaptor.
  Is the resistance below 1.0 ohm?

  Yes
  - Go to step 4
  No
  - Repair the (R4) Right Seat Squib 1 Line 1 circuit for an open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
CHECK (R2) RIGHT CURTAIN SQUIB 1 LINE 2 CIRCUIT FOR AN OPEN

Fig 3: Checking Right Curtain Squib 1 Line 2 Circuit For An Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (R2) Right Seat Squib 1 Line 2 circuit between the Right Seat Airbag connector and the 8443A ORC Adaptor.
  Is the resistance below 1.0 ohm?

  Yes
  - Replace the ORC in accordance with Service Information.
  - Perform the ORC VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure .
  No
  - Repair the (R2) Right Seat Squib 1 Line 1 circuit for an open.
  - Perform the AIRBAG SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure

CHECKING STORED OR INTERMITTENT CODES
NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the DIAGNOSTIC CODE INDEX for a complete list of airbag system diagnostic procedures.
1. With the scan tool, record and erase all Airbag System Module DTCs.
  WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
2. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
3. Reconnect all disconnected components and harness connectors.
  WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
4. With the scan tool, monitor for active codes while performing the following:
  WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.
  - Wiggle the wiring harness and connectors of the related airbag circuit.
  - Continue the test until either a code becomes active or the problem area is isolated.
5. In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question/causing the intermittent condition.
  Are any ACTIVE DTCs present?

  Yes
  - Select the appropriate diagnostic procedure from the DIAGNOSTIC CODE INDEX . See DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Diagnosis and Testing .
  No
  - No problem found at this time. Erase all codes before returning the vehicle to the customer.
