OUTLET, Air: Installation: Installation
NOTE:

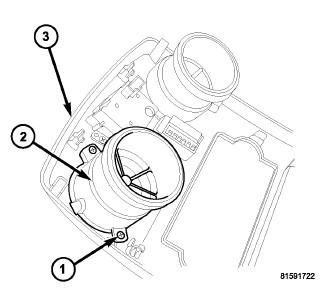

Center bezel air outlet shown in Fig 1. Other air outlets similar.
- Position the air outlet(s) (2) onto the bezel or cover (3) (depending on application).
- Install the three screws or nuts (1) (depending on application) that secure the air outlet(s) to the bezel or cover. Tighten the screws to 2 N.m (17 in. lbs.).
- Depending on the outlet being serviced, install the instrument cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Installation , instrument panel center bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Installation or the passenger side airbag cover. Refer to Restraints/COVER, Air Bag - Installation .
