Housing-Air Inlet

NOTE: LHD model with A/C shown in Fig 1. RHD and heater-only models similar.

Fig 1: Air Inlet Housing Seal and Screws

Courtesy of CHRYSLER LLC

Align the pivot shafts of the recirculation-air door (3) to the pivot shaft holes in the air inlet housing (5) and carefully install the left half of the air inlet housing to the right half of the housing.
Install the screws (4) that secure the two halves of the air inlet housing together. Tighten the screws to 2.2 N.m (20 in. lbs.).
NOTE: If the foam seal on the air distribution housing outlets is deformed or damaged, the seal must be replaced.
Inspect the foam seal (1), especially at the parting line (2). If the foam seal is deformed or damaged, it must be replaced.

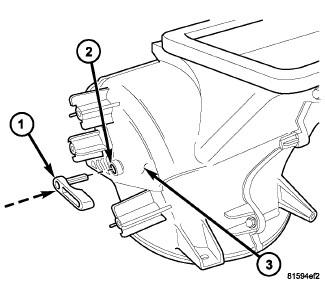

Fig 2: Recirculation Door Lever Install
Courtesy of CHRYSLER LLC

NOTE: Install the recirculation door pivot lever by carefully pushing it straight into the end of the recirculation door pivot shaft.
Install the recirculation door pivot lever (1) into the end of the recirculation door pivot shaft (2) on the driver side of the air inlet housing (3). Make sure the lever is fully engaged to the shaft.

Fig 3: Align Recirculation Door Actuator
Courtesy of CHRYSLER LLC
Install the recirculation door actuator (1) onto the driver side of the air inlet housing (2). If necessary, rotate the actuator slightly to align the pin on the actuator lever (4) with the groove in the recirculation door lever (3).

Fig 4: Recirculation Door Actuator
Courtesy of CHRYSLER LLC
Install the three screws (1) that secure the recirculation door actuator (2) to the driver side of the air inlet housing (3). Tighten the screws to 2 N.m (17 in. lbs.).

Fig 5: HVAC Housing Assembly
Courtesy of CHRYSLER LLC
Install the air inlet housing (3) onto the HVAC housing (1). See Heating and Air Conditioning/Distribution/HOUSING, HVAC - Installation .
Install the HVAC housing assembly. See Heating and Air Conditioning/Distribution/HOUSING, HVAC - Installation .
