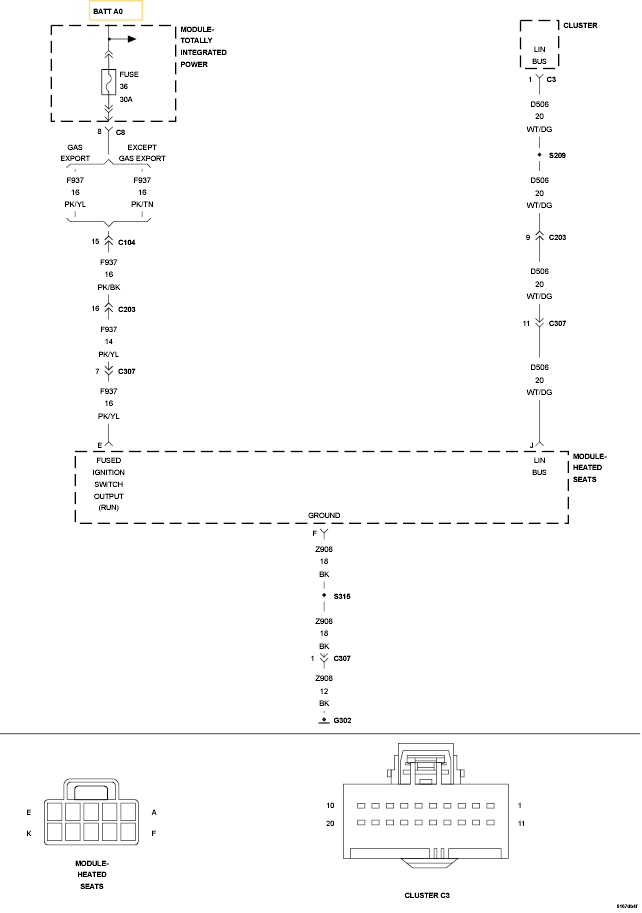

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> (Cabin Compartment Node (CCN) - Electrical Diagnostics) >> DTC Troubleshooting >> U0208-Lost Communication With Heated Seats Control Module >> Circuit Schematic
