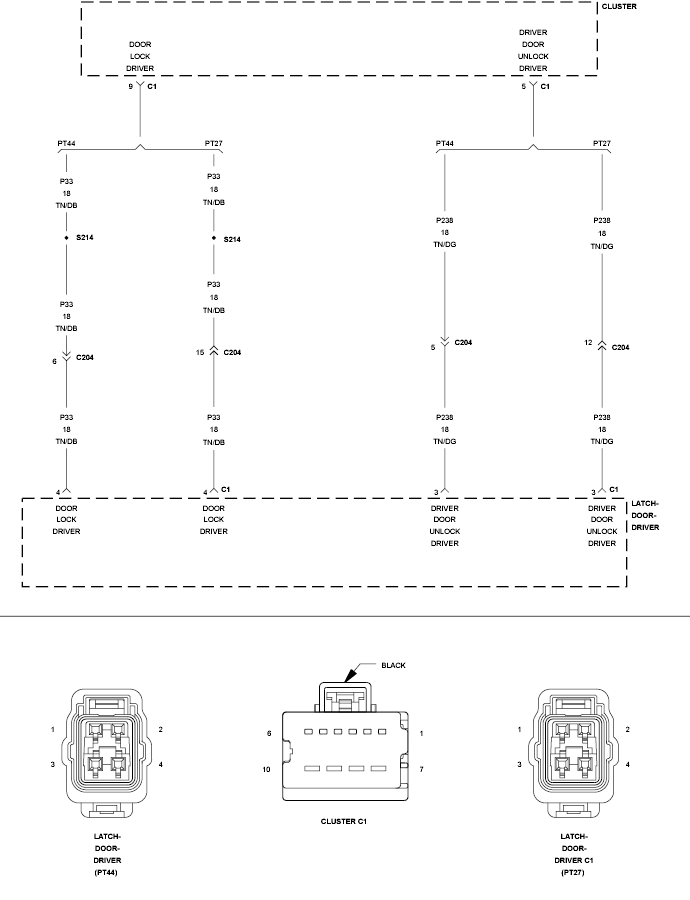

Home >> Chrysler >> 2009 >> PT Cruiser Limited >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> (Cabin Compartment Node (CCN) - Electrical Diagnostics) >> DTC Troubleshooting >> B1834-Driver Door Unlock Control Circuit Performance >> Circuit Schematic
