BEARING and SLEEVE, Input: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

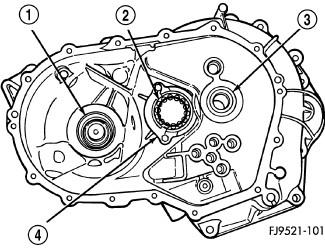

Fig 1: Input Bearing And Sleeve

Courtesy of CHRYSLER LLC

1 - DIFFERENTIAL BEARING

2 - OUTPUT BEARING

3 - INPUT BEARING

4 - BEARING RETAINER

The input bearing (3) is a one-piece bearing and sleeve unit. The sleeve is the slide point for the clutch-release bearing and lever.

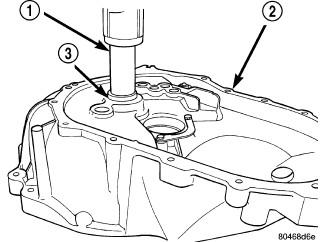

Fig 2: Input Bearing Removal

Courtesy of CHRYSLER LLC

1 - DRIVER 6342

2 - BELLHOUSING HALF

3 - INPUT BEARING AND SLEEVE

Install Driver 6342 (1) over input bearing on the gear case side of the transaxle clutch housing (2).
Press the input bearing (3) out of the housing.
