Diesel And Turbo Models

WARNING: This page is about a different variant/trim than selected.

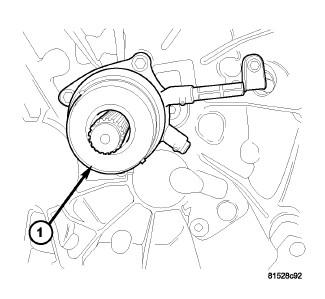

Fig 1: Slave Cylinder Location

Courtesy of CHRYSLER LLC

1 - CONCENTRIC SLAVE CYLINDER (CSC)

The clutch release system (1) utilizes a slave cylinder of a concentric design, having all components fixed about the same axis. See Fig 1. The concentric slave cylinder (CSC) is mounted to the inside of the clutch bellhousing and is serviced only as an assembly.

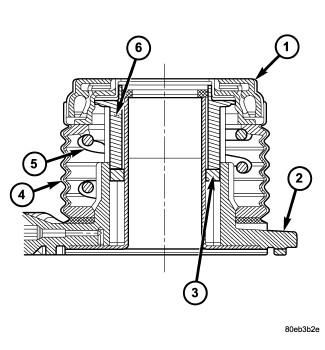

Fig 2: Concentric Slave Cylinder (CSC) Components

Courtesy of CHRYSLER LLC

1 - RELEASE BEARING

2 - BODY

3 - SEAL

4 - BOOT

5 - SPRING

6 - PISTON

The concentric design permits high efficiency, resulting in low and consistent pedal effort, as well as automatic adjustment to compensate for clutch disc wear. The CSC is a self-contained unit, consisting of a main body (2) and piston (6), spring (5), integrated release bearing (1), and a rubber boot (4). See Fig 2.
