TENSIONER, Engine Timing: Adjustments: Adjustment
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

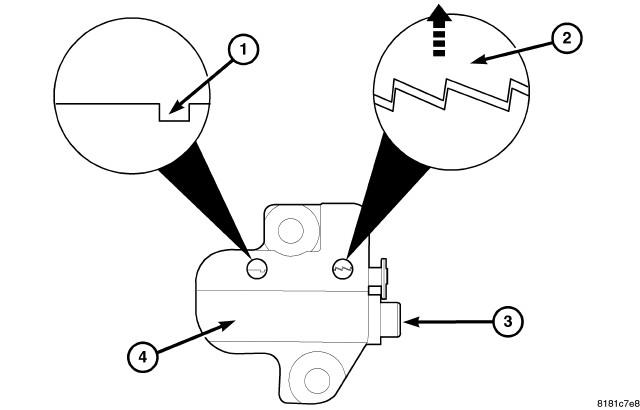

- Raise ratchet (2) with small screw driver.
- Push plunger (3) towards tensioner body (4).
- Insert tensioner pin 8514 into slot (1). This will hold the tensioner in the retracted position.
