VALVE, Oil Pressure Relief: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Oil pressure relief valve can be serviced without removing oil pump from the engine.

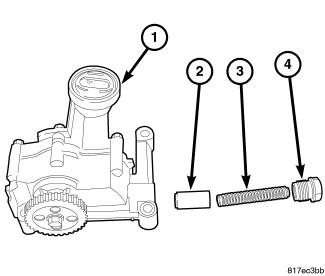

Fig 1: Pressure Relief Valve - 1.8L
GC0102809Courtesy of CHRYSLER LLC
  1. Remove oil pan. See Engine/Lubrication/PAN, Oil - Removal .
  2. Remove cap (4).
  3. Remove spring (3) and valve (2).
  4. Inspect valve (2) and pump (1) bore seizure or scoring. Replace as needed.
