SWITCH, Oil Pressure: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

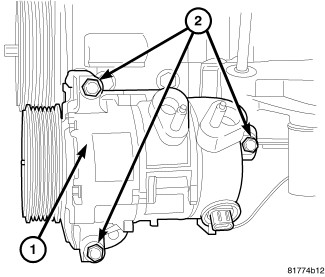

Fig 1: A/C Compressor-R and I
GC0082737Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the negative battery cable.
  2. Raise and support the vehicle. Refer to Vehicle Quick Reference/Hoisting - Standard Procedure
  3. Remove the splash shield from the right side frame rail. Refer to Body/Exterior/SHIELD, Splash - Removal
  4. If vehicle is equipped with an A/C compressor, remove the accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Removal
  5. Remove the three bolts (2) and reposition the A/C compressor (1), if equipped.

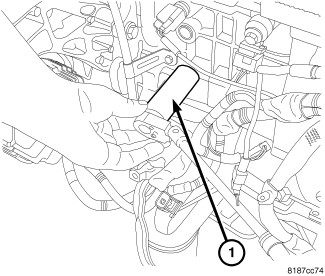

    Fig 2: OIL SENDER
    GC0098664Courtesy of CHRYSLER LLC
  6. Disconnect the oil pressure switch electrical connector.
  7. Remove the oil pressure switch using oil pressure socket C-4597 (1) or equivalent.
