Piston Selection
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

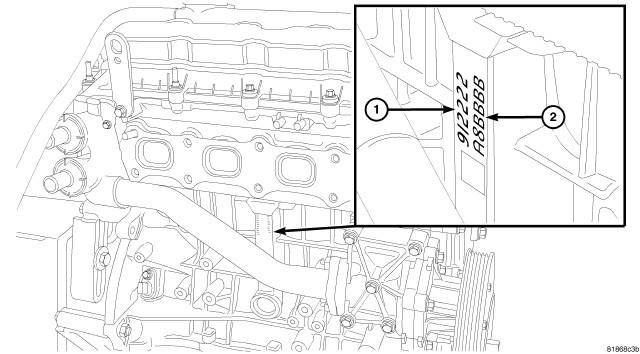

The pistons are select fit to each bore. There are three different grades of pistons available; A, B, and C. The piston identification (2) is located in the middle of the block on the right side of the engine. The bore identification starts at the top and reads downward. Bore #1 is at the top and bore #4 is at the bottom.
The piston, rings and rod are serviced as an assembly. After determining what size piston is needed, refer to Engine/Engine Block/BEARING(S), Connecting Rod - Standard Procedure to determine correct rod bearing size.
