Cylinder Head: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

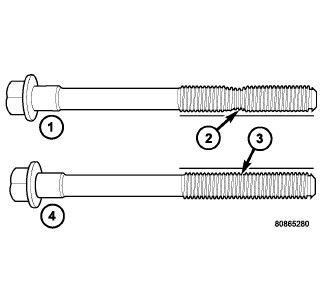

Fig 1: Checking Cylinder Head Bolts for Stretching (Necking)

Courtesy of CHRYSLER LLC

CAUTION: The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced.

Check cylinder head bolts for necking by holding a scale or straight edge against the threads. If all the threads do not contact the scale (2) the bolt must be replaced.

Fig 2: VVT Filter
Courtesy of CHRYSLER LLC

NOTE: Ensure cylinder head bolt holes in the block are clean, dry (free of residual oil or coolant), and threads are not damaged.

CAUTION: Always replace the variable valve timing filter screen (3) when servicing the head gasket or engine damage could result.
Replace the variable valve timing filter screen (3).

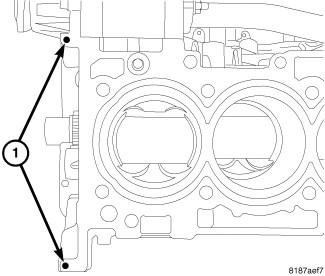

Fig 3: Cylinder Head RTV
Courtesy of CHRYSLER LLC

NOTE: When using RTV, the sealing surfaces must be clean and free from grease and oil.

NOTE: When using RTV, parts should be assembled in 10 minutes and tighten to final torque within 45 minutes.
Place two pea size dots of Mopar® engine sealant RTV or equivalent (1) on cylinder block as shown in Fig 3.

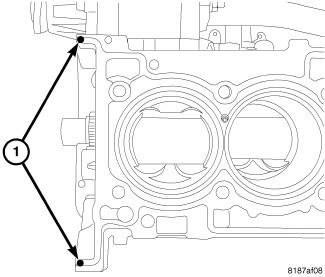

Fig 4: Cylinder Head Gasket RTV
Courtesy of CHRYSLER LLC
Position the new cylinder head gasket on engine block with the part number facing up. Ensure gasket is seated over the locating dowels in block.
Place two pea size dots of Mopar® engine sealant RTV or equivalent (1) on cylinder head gasket as shown in Fig 4.
NOTE: The head must be installed within 15 minutes before the RTV skins.
Position cylinder head onto engine block.

Fig 5: CYLINDER HEAD BOLT IDENTIFICATION
Courtesy of CHRYSLER LLC

CAUTION: This engine was built with 2 different style cylinder head bolts. Each style bolt requires a different torque value. The bolts can be identified by the short bolt head (1) and the long bolt head (2).
Measure the bolt head from the washer to the top of the bolt head. The short bolt head (1) measures 8 mm (5/16") and the long bolt head (2) measures 13 mm (1/2").
Identify whether your engine has the short head design (1) or the long head design (2).

Fig 6: Washers Must Be Installed With Bevel Edge Up Towards Bolt Head
Courtesy of CHRYSLER LLC

NOTE: The front two cylinder head bolts do not have captured washers. The washers must be installed with the bevel edge (1) up towards the bolt head.

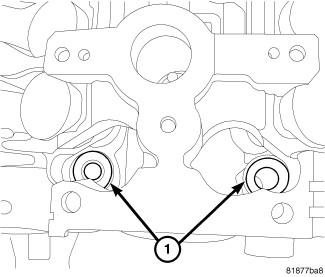

Fig 7: Front Head Bolt Washers
Courtesy of CHRYSLER LLC
Install washers (1) for the front two cylinder head bolts with the beveled edge facing up.

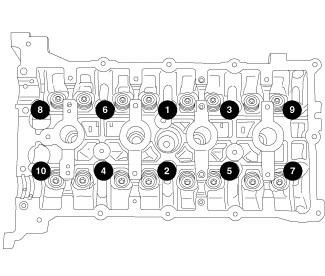

Fig 8: Cylinder Head Torque Sequence
Courtesy of CHRYSLER LLC

NOTE: Before installing the cylinder head bolts, lubricate the threads with clean engine oil.
Install the cylinder head bolts and tighten in the sequence shown in Fig 8.

Fig 9: CYLINDER HEAD BOLT IDENTIFICATION
Courtesy of CHRYSLER LLC
If your bolt has the short head (1), use the following torque specifications:
- First: All to 30 N.m (25 ft. lbs.)
- Second: All to 61 N.m (45 ft. lbs.)
- Third: All to 61 N.m (45 ft. lbs.)
- Fourth: All an additional 90°
  CAUTION: Do not use a torque wrench for the Fourth step.
If your bolt has the long head (2), use the following torque specifications:
- First: All to 30 N.m (25 ft. lbs.)
- Second: All to 73 N.m (54 ft. lbs.)
- Third: All to 73 N.m (54 ft. lbs.)
- Fourth: All an additional 90°
  CAUTION: Do not use a torque wrench for the Fourth step.
Clean excess RTV from timing chain cover sealing surface.

Fig 10: COOLANT ADAPTER
Courtesy of CHRYSLER LLC
Install coolant adapter (3) with new seals. Tighten bolts to 18.1 N.m (159 in. lbs.).

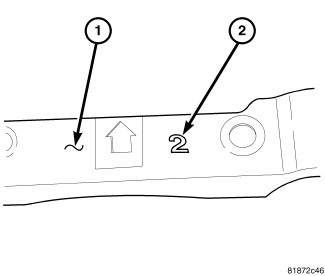

Fig 11: CAM CAP BEARING IDENTIFICATION
Courtesy of CHRYSLER LLC
The front camshaft bearing cap (1) is numbered (2) either one, two, or three, this corresponds to the select fit front exhaust camshaft bearing to use.

Fig 12: CAM BEARING IDENTIFICATION
Courtesy of CHRYSLER LLC
Install the corresponding select fit front exhaust camshaft bearing (1).
Oil all of the camshaft journals with clean engine oil.

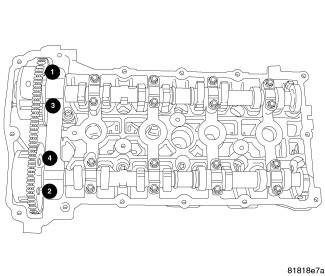

Fig 13: Camshaft Timing
Courtesy of CHRYSLER LLC
Position exhaust camshaft (1) and intake camshaft (2) on bearing journals in the cylinder head.
Align camshaft timing marks (3) so that they are facing each other and are in line with the cylinder head cover sealing surface.
CAUTION: Install the front intake and exhaust camshaft bearing cap last. Ensure that the dowels are seated and follow torque sequence or damage to engine could result.

NOTE: If the front camshaft bearing cap is broken, the cylinder head MUST be replaced.

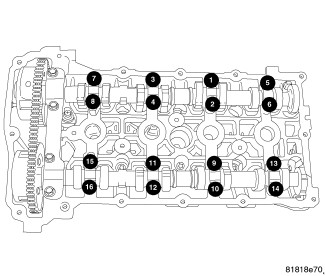

Fig 14: CAM CAP TORQUE SEQUENCE
Courtesy of CHRYSLER LLC
Install intake and exhaust camshaft bearing caps and slowly tighten bolts to 9.5 N.m (85 in. lbs.) in the sequence shown in Fig 14.

Fig 15: Front Cam Cap Torque Sequence
Courtesy of CHRYSLER LLC

NOTE: Verify that the exhaust bearing shells are correctly installed, and the dowels are seated in the head, prior to torquing bolts.
Install the front intake and exhaust bearing cap and tighten bolts to 25 N.m (18 ft. lbs.) in the sequence shown in Fig 15.

Fig 16: TIMING DRIVE
Courtesy of CHRYSLER LLC
Install timing chain guide (4) and tighten bolts to 12 N.m (105 in. lbs.).
Install the moveable timing chain pivot guide (6) and tighten bolt to 12 N.m (105 in. lbs.).
Install timing chain (2) and tensioner (5). See Engine/Valve Timing/CHAIN and SPROCKETS, Timing - Installation .
Install timing chain cover, engine mount, pulleys and accessory drive belt. See Engine/Valve Timing/COVER(S), Engine Timing - Installation .

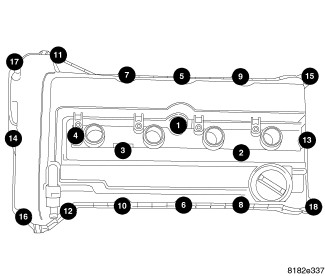

Fig 17: Remove/Install Cylinder Head Cover Bolts In Sequence
Courtesy of CHRYSLER LLC
Install cylinder head cover and ignition coils. See Engine/Cylinder Head/COVER(S), Cylinder Head - Installation .

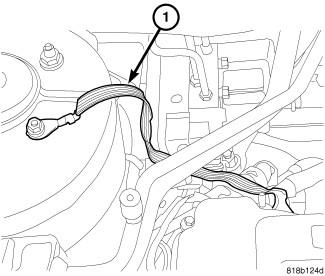

Fig 18: Ground Strap
Courtesy of CHRYSLER LLC
Install exhaust manifold. See Engine/Manifolds/MANIFOLD, Exhaust - Installation .
Install ground strap (1) at right rear of cylinder head if equipped.

Fig 19: Remove/Install Intake Bolts In Sequence
Courtesy of CHRYSLER LLC
Install intake manifold, vacuum lines and fuel rail. See Engine/Manifolds/MANIFOLD, Intake - Installation .

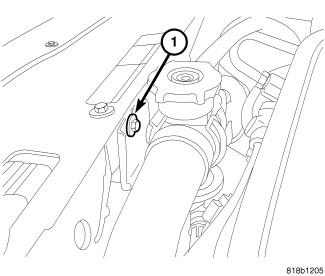

Fig 20: Radiator Hose Support
Courtesy of CHRYSLER LLC
Install upper radiator hose retaining bracket bolt (1).

Fig 21: COIL CONNECTOR
Courtesy of CHRYSLER LLC
Connect coil (1) and injector (4) electrical connectors.

Fig 22: COOLANT ADAPTER
Courtesy of CHRYSLER LLC
Connect electrical connectors to coolant temperature sensor (1), camshaft position sensors, oil temperature sensor, variable valve timing solenoids, MAP sensor, manifold tuning valve, ignition interference suppressor (2) and electronic throttle control.

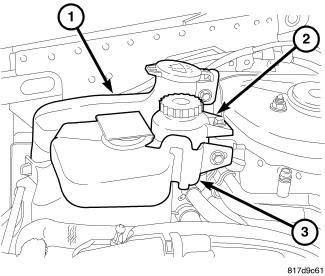

Fig 23: Coolant Reservoir
Courtesy of CHRYSLER LLC
Install power steering pump reservoir (2). Tighten mounting screw to 12 N.m (106 in. lbs.).
Install windshield washer reservoir (1).
Install coolant recovery reservoir (3). Tighten mounting bolts to 4 N.m (35 in. lbs.).

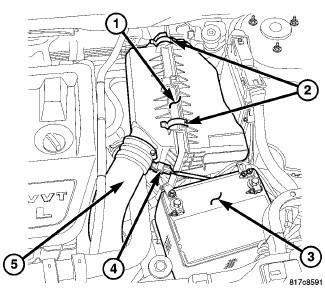

Fig 24: Air Cleaner Housing
Courtesy of CHRYSLER LLC
Install clean air hose (5) and air cleaner housing (1). See Engine/Air Intake System/BODY, Air Cleaner - Installation .
Fill cooling system. Refer to Cooling - Standard Procedure .
Install new oil filter and fill engine with oil.
Connect negative battery cable.

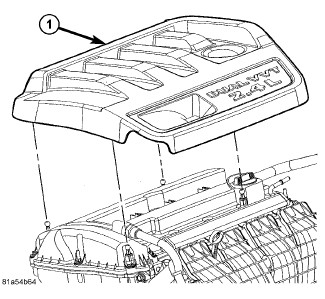

Fig 25: ENGINE COVER
Courtesy of CHRYSLER LLC
Operate engine until it reaches normal operating temperature. Check oil and cooling systems for leaks and correct fluid levels.
Install engine cover (1).
