Measuring Camshaft End Play

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

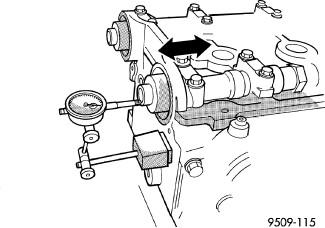

Fig 1: Camshaft End Play
GC0102707Courtesy of CHRYSLER LLC
  1. Using a suitable tool, move camshaft as far rearward as it will go.
  2. Zero dial indicator .
  3. Move camshaft as far forward as it will go.
  4. Record reading on dial indicator. For end play specification, see Engine - Specifications .
  5. If end play is excessive, check cylinder head and camshaft for wear; replace as necessary.
