BODY, Air Cleaner: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

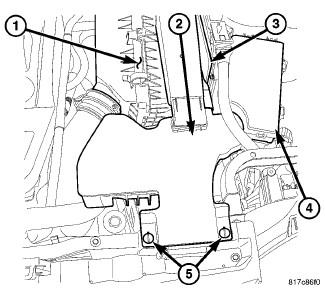

Fig 1: AIR CLEANER INLET
GC0102695Courtesy of CHRYSLER LLC
  1. Loosen retainers (5) and remove fresh air inlet (2) from air cleaner housing (1).

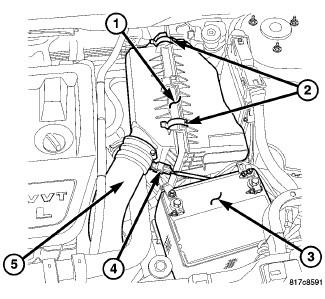

    Fig 2: AIR CLEANER HOUSING
    GC0102696Courtesy of CHRYSLER LLC
  2. Remove intake air temperature sensor electrical connector (4).
  3. Remove air inlet tube (5) from housing (1).
  4. Pull housing (1) upward to remove.
