Pressure Bleeding

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Follow pressure bleeder manufacturer's instructions for use of pressure bleeding equipment.

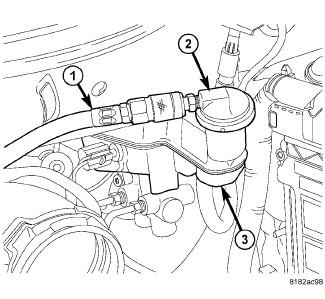

Fig 1: MASTER CYLINDER CAP 6921 (PM)

Courtesy of CHRYSLER LLC

Attach Master Cylinder Cap 6921 (2) in place of the filler cap on the master cylinder reservoir (3).
Attach Bleeder Tank C-3496-B (1) or an equivalent, to the Master Cylinder Cap 6921 (2).

Fig 2: BLEED HOSE SET UP
Courtesy of CHRYSLER LLC
Attach a clear plastic hose (1) to the bleeder screw and feed the hose into a clear jar (2) containing enough fresh brake fluid to submerge the end of the hose.
Open the bleeder screw at least one full turn or more to obtain a steady stream of brake fluid.
After approximately 120-240 ml (4-8 ounces) of fluid have been bled through the brake circuit and an air-free flow is maintained in the clear plastic hose and jar, close the bleeder screw.
Repeat this procedure at all the remaining bleeder screws.

Fig 3: MASTER CYLINDER FILL MARKINGS
Courtesy of CHRYSLER LLC
Check and adjust brake fluid level to the FULL mark on the reservoir (2).
Check the brake pedal travel. If pedal travel is excessive or has not been improved, some air may still be trapped in the system. Re-bleed the brakes as necessary.
Test drive the vehicle to verify the brakes are operating properly and pedal feel is correct.
