Circuit Schematic

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

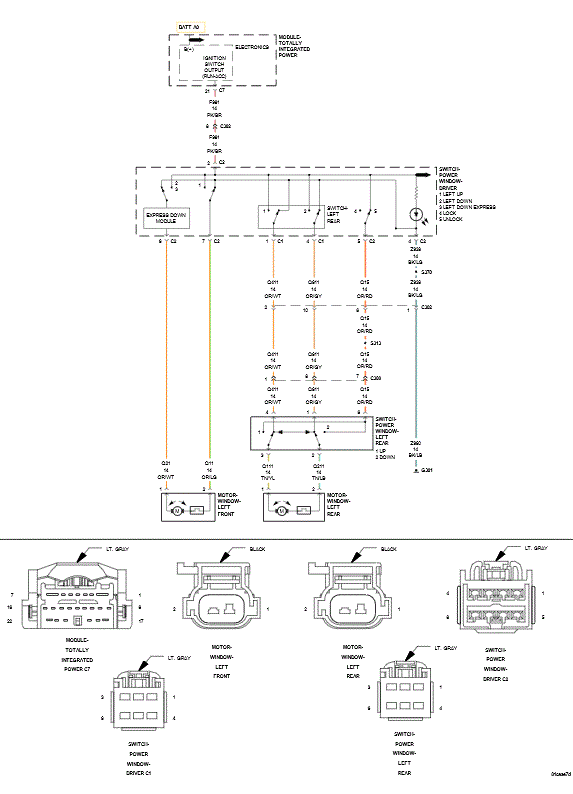

Fig 1: Window Control Circuit Schematic
GC0100171Courtesy of CHRYSLER LLC
NOTE: The schematic shows just the Left Rear Window Motor circuit. The other Passenger Window Motor circuits are similar.
