P2270-O2 Sensor 1/2 Signal Biased Lean: Notes

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

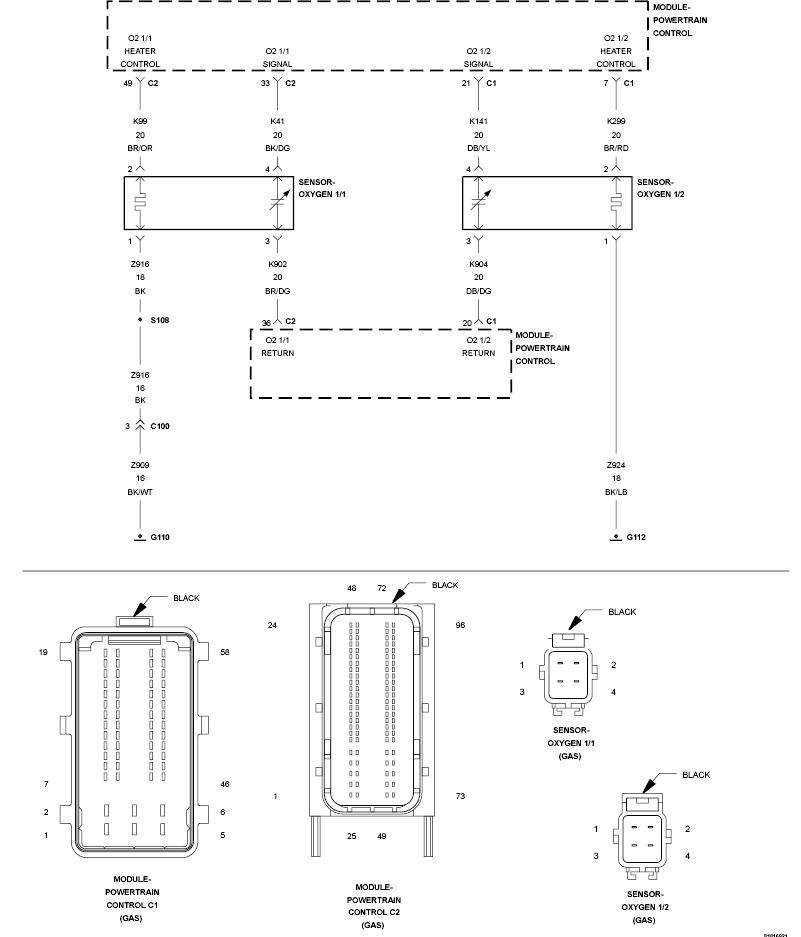

Fig 1: Oxygen Sensor Circuit
GC0100074Courtesy of CHRYSLER LLC
