Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this test.
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(K858) 5-VOLT SUPPLY CIRCUIT VOLTAGE

Fig 1: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Accelerator Pedal Position Sensor connector.
3. Turn the ignition on.
4. Measure the voltage of the (K858) 5-Volt Supply circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the voltage above 4.5 volts?

  Yes
  - Go to step 6
  No
  - Go to step 3
(K858) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

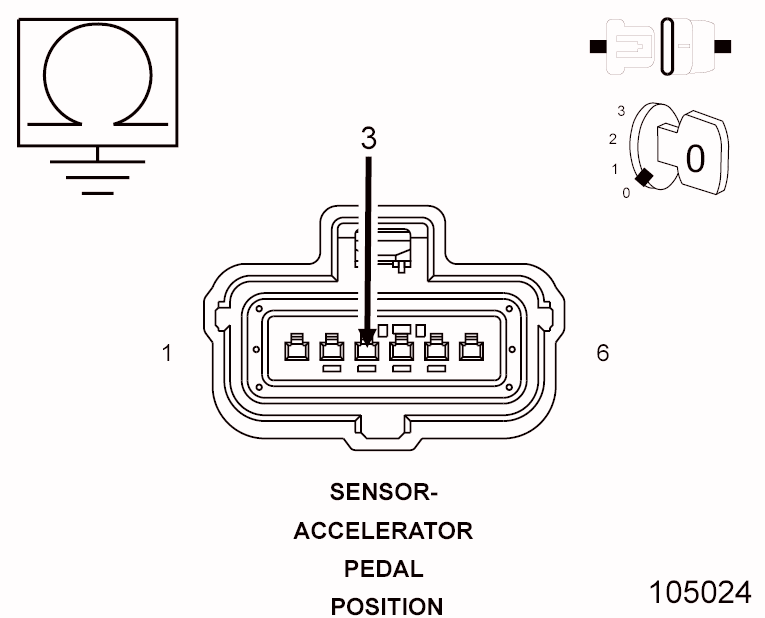

Fig 2: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Measure the resistance between ground and the (K858) 5-Volt Supply circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 1000 ohms?

  Yes
  - Go to step 4
  No
  - Repair the (K858) 5-Volt Supply circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K858) 5-VOLT SUPPLY CIRCUIT SHORTED TO (K400) SENSOR GROUND CIRCUIT

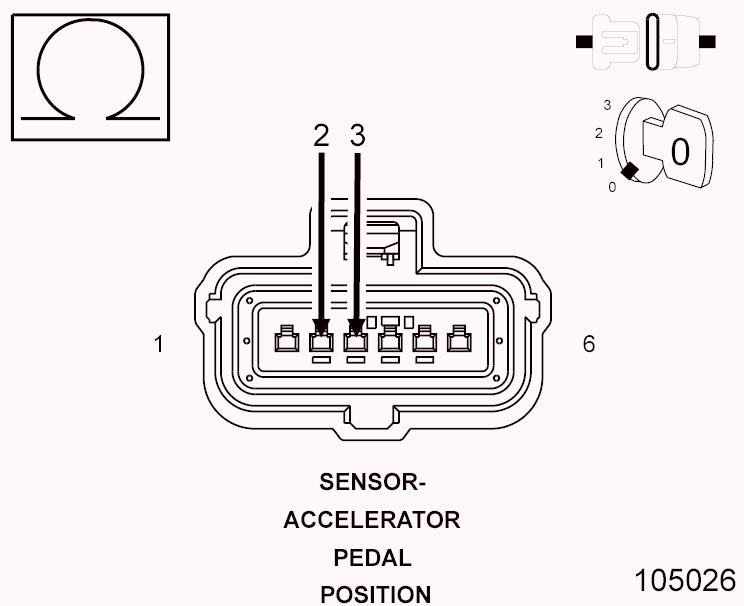

Fig 3: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K858) 5-Volt Supply circuit and the (K400) Sensor Ground circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 5
  No
  - Repair the (K858) 5-Volt Supply circuit for a short to the (K400) Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K858) 5-VOLT SUPPLY CIRCUIT SHORTED TO (K167) SENSOR GROUND CIRCUIT

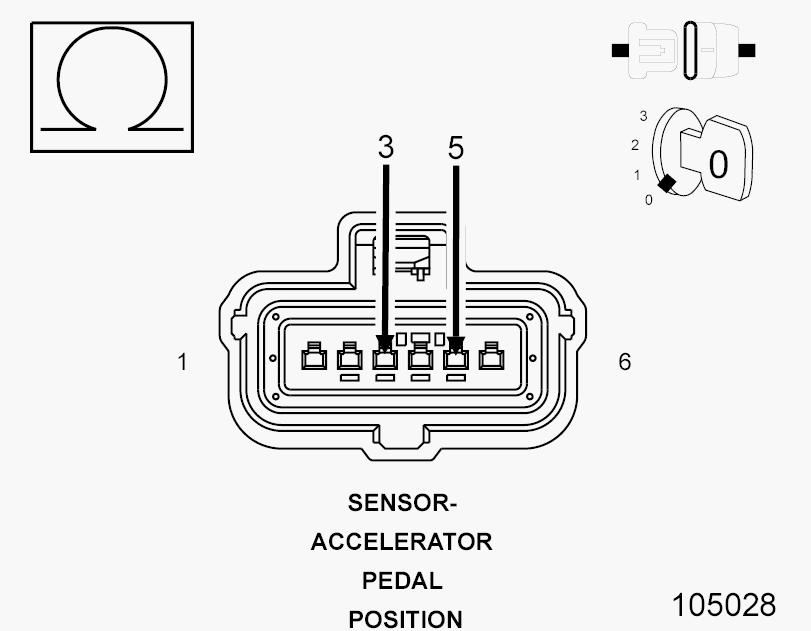

Fig 4: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K858) 5-Volt Supply circuit and the (K167) Sensor Ground circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 6
  No
  - Repair the (K858) 5-Volt Supply circuit for a short to the (K167) Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K858) 5-VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

Fig 5: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K858) 5-Volt Supply circuit between the Accelerator Pedal Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 7
  No
  - Repair the (K858) 5-Volt Supply circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO GROUND

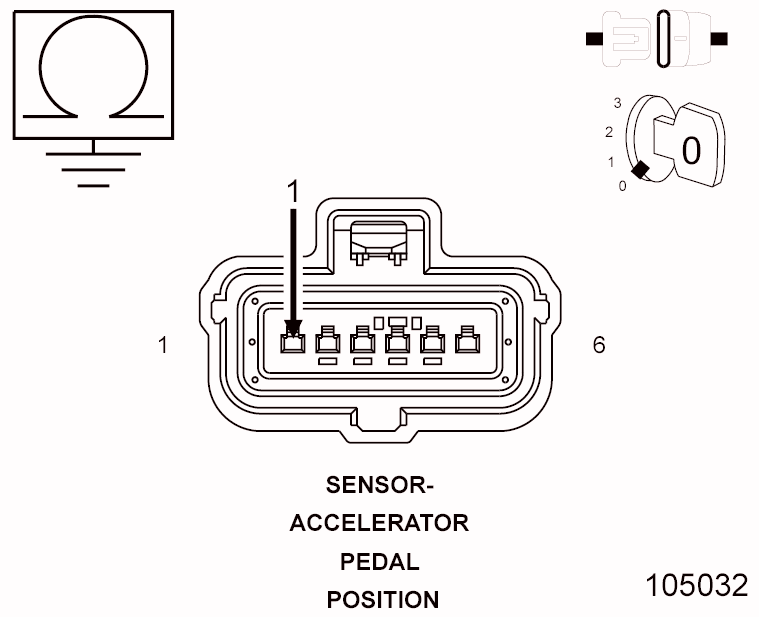

Fig 6: Checking APP Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Measure the resistance between ground and the (K29) APP Signal 2 circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 8
  No
  - Repair the (K29) APP Signal 2 circuit for a short to ground.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO (K400) SENSOR GROUND CIRCUIT

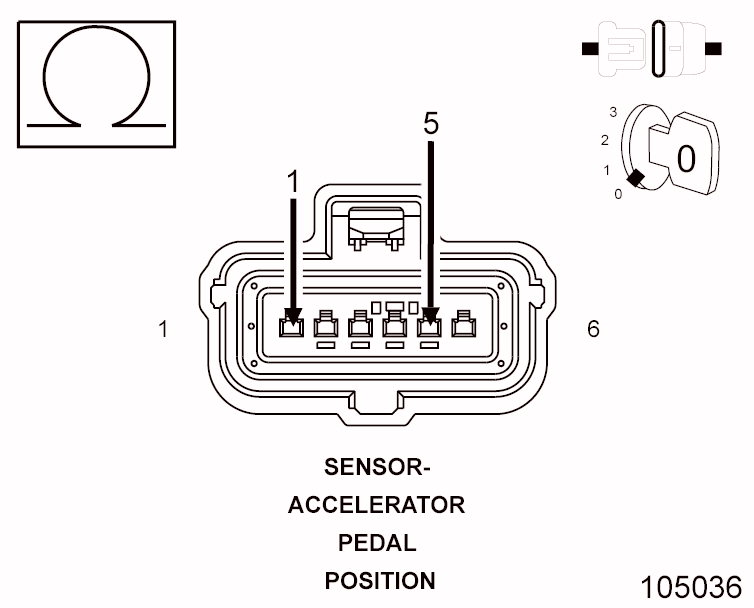

Fig 7: Checking APP Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K29) APP Signal 2 circuit and the (K400) Sensor Ground circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 9
  No
  - Repair the (K29) APP Signal 2 circuit for a short to the (K400) Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K29) APP SIGNAL 2 CIRCUIT SHORTED TO (K167) SENSOR GROUND CIRCUIT

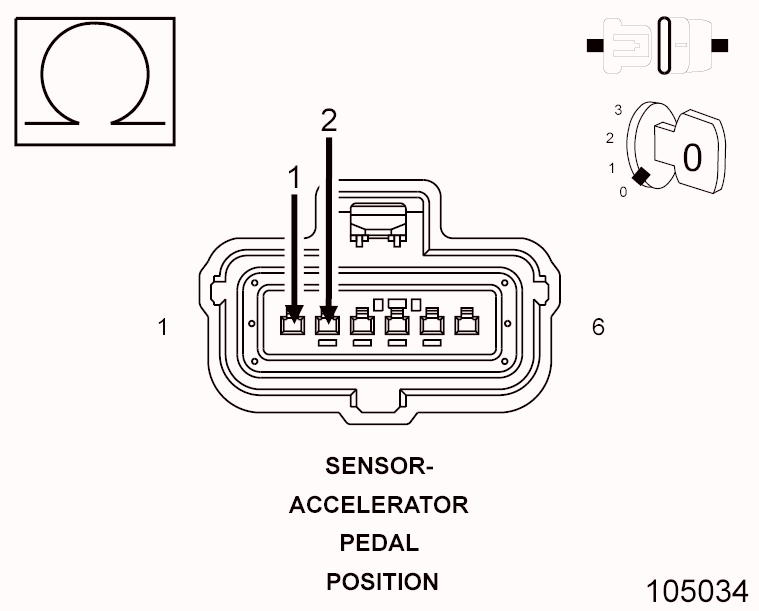

Fig 8: Checking APP Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K29) APP Signal 2 circuit and the (K167) Sensor Ground circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 10
  No
  - Repair the (K29) APP Signal 2 circuit for a short to the (K167) Sensor Ground circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K29) APP SIGNAL 2 CIRCUIT OPEN OR HIGH RESISTANCE

Fig 9: Checking APP Sensor Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K29) APP Signal 2 circuit between the Accelerator Pedal Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 11
  No
  - Repair the (K29) APP Signal 2 circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
ACCELERATOR PEDAL POSITION SENSOR

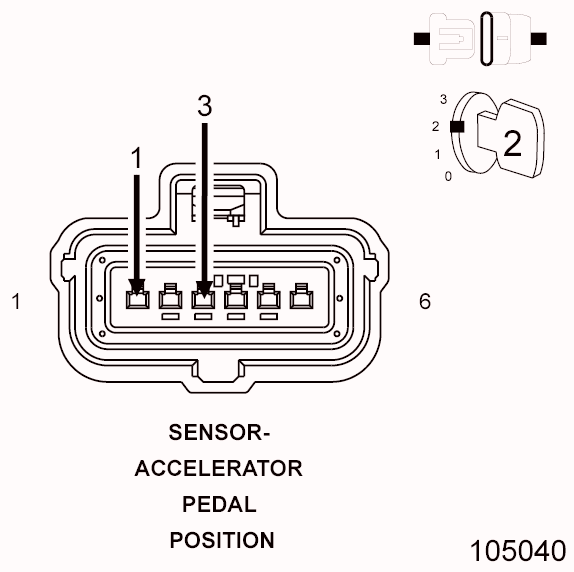

Fig 10: Checking 5-Volt Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) connector.
3. Connect a jumper wire between the (K858) 5-Volt Supply circuit and the (K29) APP Signal 2 circuit in the Accelerator Pedal Position Sensor harness connector.
4. Turn the ignition on.
5. With the scan tool, read the Accelerator Pedal Position Sensor signal voltage.
  Is the voltage above 4.5 volts with the jumper wire in place?

  Yes
  - Replace the Accelerator Pedal Position Sensor in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 12
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Accelerator Pedal Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Refer to any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
