Section 62 (DTCS P1502 To P209)
>>
P2016-Intake Manifold Runner Position Sensor Circuit Low
>>
Notes
P2016-Intake Manifold Runner Position Sensor Circuit Low: Notes
WARNING:
This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

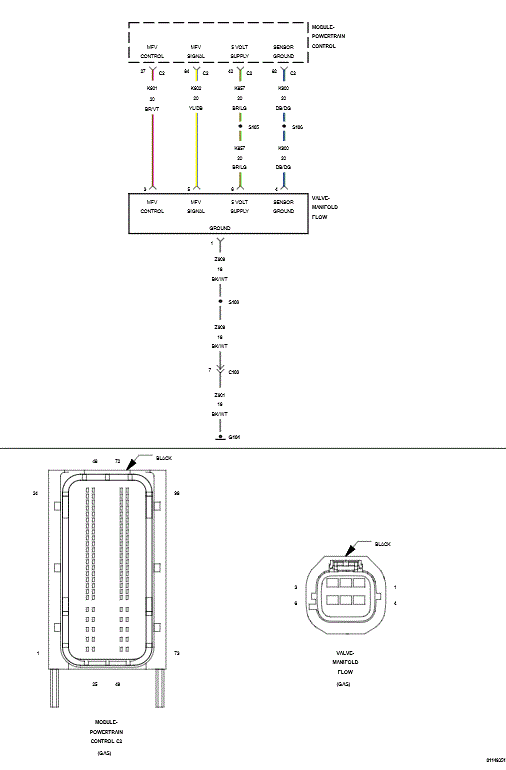

Fig 1: Intake Manifold Runner Control Circuit
Courtesy of CHRYSLER LLC
